BSS BLU-BOB1 8-Channel Analogue Break-Out Box with BLU Link Half Rack Width

Product Code: BSS BLU-BOB1

Key Features
8-channel analog break-out box w/ BLU link (half rack) (US Version)
$2,170.54 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The Soundweb London BLU-BOB1 or “break-out box” offers 8 channels of analog audio output expansion via the Soundweb London high bandwidth, fault tolerant digital audio bus.

This expander features a low latency, fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. The BSS Audio MC-1 fiber optic media converter can be used to increase the distance between devices to over 10km (6.2 miles) using single mode fiber.

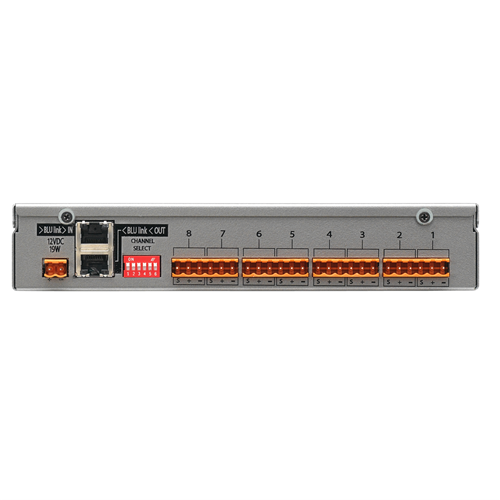

The BLU-BOB1 output channels are easily configured by six DIP switches located on the rear of the device, which select consecutive channels in groups of eight. This simple configuration allows selection of any 8-channel range from the 256 channels available on the digital audio bus. Output channel assignments are configured by DIP switch selection only. The BLU-BOB1 is not configured by HiQnet™ London Architect.

The 8 analog line level outputs utilize the same terminal block connectors as the other members of the Soundweb London family.

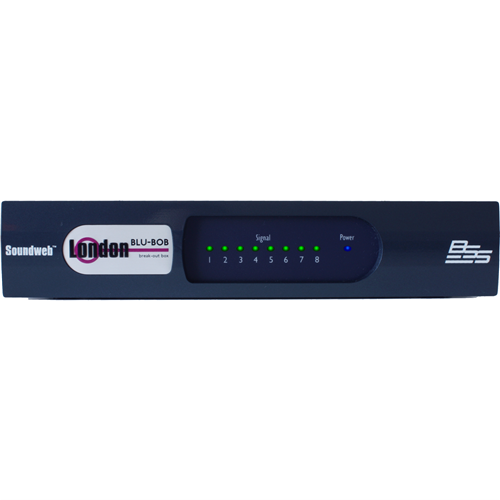

Signal present and power status are clearly displayed by front panel LED indicators.

Two chassis styles are available, the first (BLU-BOB1) is a half rack width, desk or wall mounted version and the second (BLU-BOB2) is a 19” single rack space version with mounting ears for equipment racks. Front panel indication and rear panel connections are identical on both versions.

The BLU-BOB1 break-out box output expanders are powered by a 12V DC adapter which is included with the devices.

The BLU-BOB1 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

Features

  • 8 Analog Audio Outputs
  • Standard Terminal Block Connectors for Analog Audio Connections
  • DIP Switches for Channel Range Selection
  • 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
  • Clear Front Panel LED Indication
  • 12VDC External Power included
  • Terminal Block Connectors for Power Connection
  • Half Rack Width, Desk Mount or Wall Mount Chassis
  • Warranty

    We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Chassis Half rack (single space, half-width)
    Analog Outputs 8
    Config DIP switch
    SWL Digital Audio Bus 256
