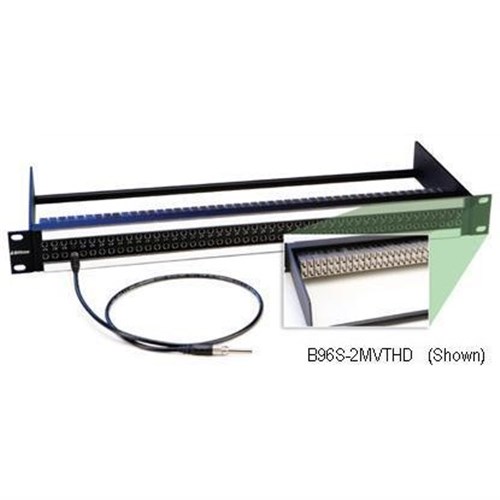

Bittree Micro-Video Patchbay - 2x48 Patch Points 2 RU Fully Normalled with 75 Ohm Termination

Product Code: B96H-2MVTHD

Key Features
  • Highest-Density Micro-Video format features 48 jacks per row
  • 2x48 configuration; 1 and 1.5 RU sizes
  • HD/SDI, SD/SDI, 3Gb/s and 3-D applications
  • SMPTE 292M and SMPTE 424M compliant
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Our highest-density, high-bandwidth Micro-Video patchbays meet all SMPTE 292M and 424M specifications, and features industry-standard DIN 1.0 / 2.3 rear terminations.

In addition to the unparalleled performance of the video jacks, the design of the patchbay itself sets it apart from the competition in three ways. First, the patchbay features a lacing bar to help organize rack wiring. Second, the design provides an innovative option to recess the front panel 1” back to keep patchcords from protruding beyond the rack, saving space and ensuring snug connections in tight quarters. Third, the jacks are assembled to the patchbay with a captive front mounting-screw for easy maintenance.

High Density: 48 patch points per row

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
