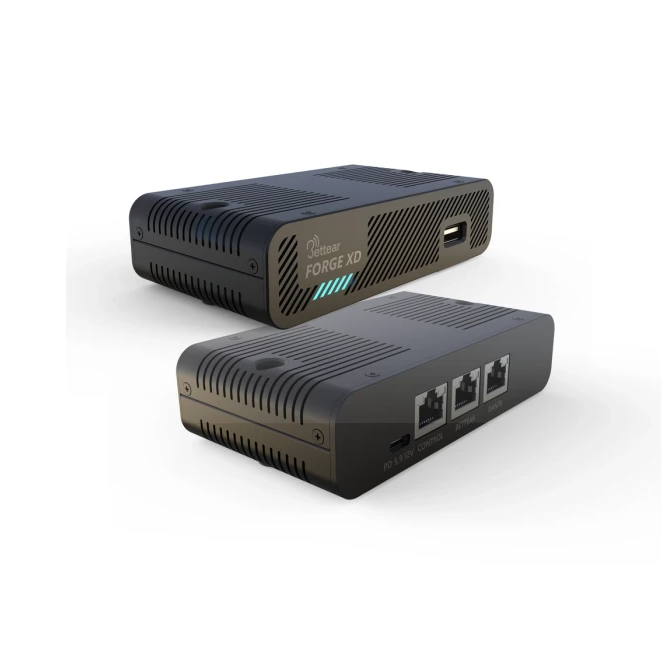

Bettear FORGE Professional Stream Expander for the Caster or Caster X

Product Code: BTR-FORGE-XD

Key Features
  • Boosts a single CASTER from 2 to 8 Auracast™ broadcast streams
  • Connects directly to CASTER and CASTER X transmitters
  • Receives audio from Dante®-enabled devices over the network
  • Dedicated network ports — DANTE, BETTEAR (CASTER link) and CONTROL
  • Intuitive web-based management panel
  • Mounting options: desktop or wall
  • Powered over USB-C
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Bettear FORGE Professional Stream Expander for the Caster or Caster X

***Pre-Order Now: Coming End of 2026***

FORGE XD is a professional stream expander for the CASTER — multiplying the number of Auracast™ streams a single transmitter can broadcast, from 2 to 8.

Audio reaches FORGE XD from any Dante®-enabled device on the network, and FORGE XD connects directly to your CASTER or CASTER X transmitter on the other end.

FORGE XD is managed entirely over Ethernet, making it easy to configure and control across the venue.

Suitable for airports, museums, visitor centres, live interpretation, multi-stream-events, and more.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

System
CPU RK3568B2 Cortex-A55 Quad-Core, up to 2.0 GHz
RAM 4GB LPDDR4X
Internal Memory 8GB eMMC
Operating System Linux
Audio over IP
Dante® Channels 8 × mono inputs
Sample Rate 48 kHz
Bit Depth 24-bit (PCM)
Auracast™ Broadcast
Broadcast Streams Up to 8 from a single CASTER
Stream Configuration Mono or stereo — a stereo stream uses two of the eight channels
Compatible Transmitters CASTER, CASTER X
Interfaces
Ethernet (RJ45) 3 × ports
DANTE 10/100/1000 Mbps Ethernet
BETTEAR 2.5 Gbps Ethernet
CONTROL 2.5 Gbps Ethernet
USB Ports 1 × USB 3.2 Gen 1 Type-A
Status Indication Front panel LED bar
Power
USB-C USB Power Delivery, 5 V / 9 V / 12 V input
Mounting
Mounting Options Desktop and wall-mounting with integrated screw holes, no bracket required
Physical
Dimensions 120 × 67 × 30 mm (4.72 × 2.64 × 1.18 in)
Weight 330 g (0.73 lbs)
Color Black
