Bettear B-CASTER-X Auracast Transmitter with Analog Input - White

Product Code: BTR-CASTER-X-WHT

Key Features
  • Auracast Transmitter with Analog Input
  • Colour: White
  • Max TX Power 10dBm
  • Switchable Int & Ext Antenna
  • Low-latency audio broadcasting (<40 ms)
  • High-performance RF coverage with flexible antenna options (internal or external)
  • Open or secure broadcasting
  • Analog or Dante models available (this listing is for the Analog model)
  • Flexible broadcasting modes (stereo or dual-mono)
  • Power, audio & control cascading
  • Advanced audio processing (AGC, LPF, HPF)
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Bettear B-CASTER-X Auracast Transmitter with Analog Input - White

The CASTER X is a professional Auracast™ streamer with a switchable internal or external antenna, so RF coverage can be tuned to the room rather than the other way round.

It takes two balanced analog inputs and broadcasts to Auracast™-enabled hearing aids, cochlear  implants and earbuds, plus RTX receivers. Managed from the built-in web panel or Hive Central.

Built for real-world deployments, it enables crystal-clear high-quality, low-latency audio broadcasting to unlimited listeners - from theaters and classrooms to museums and transportation hubs.

Flexible by design, CASTER supports both open and secure broadcasts, making it suitable for everyday use as well as sensitive and confidential environments.

With PoE in and PoE out, it enables clean installations and seamless cascading of power, audio, and control over Ethernet - combined with centralized management via Hive Central.



Suitable for cinemas, museums, music venues, classrooms, courtrooms, sports arenas, airports, houses of worship, and more.

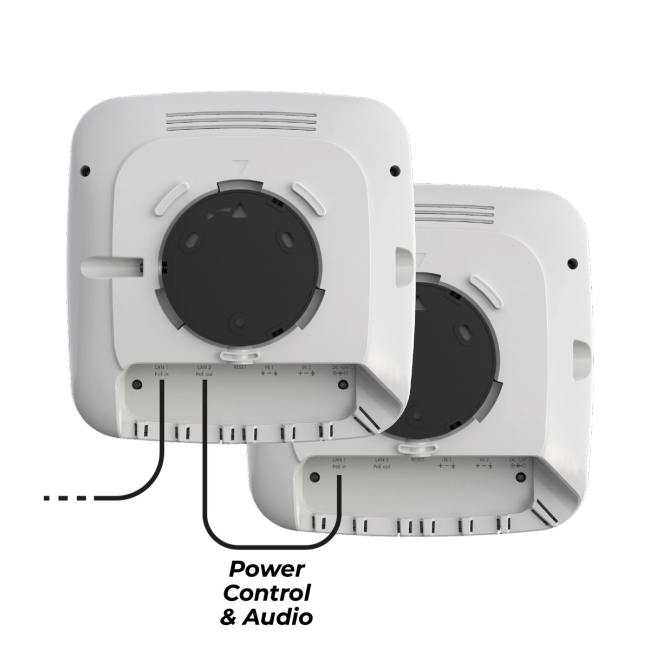

Seamless Network Expansion: Seamlessly expand your Auracast™ network to cover larger distance or to increase audio stream capacity over a single Ethernet connection.

image 1

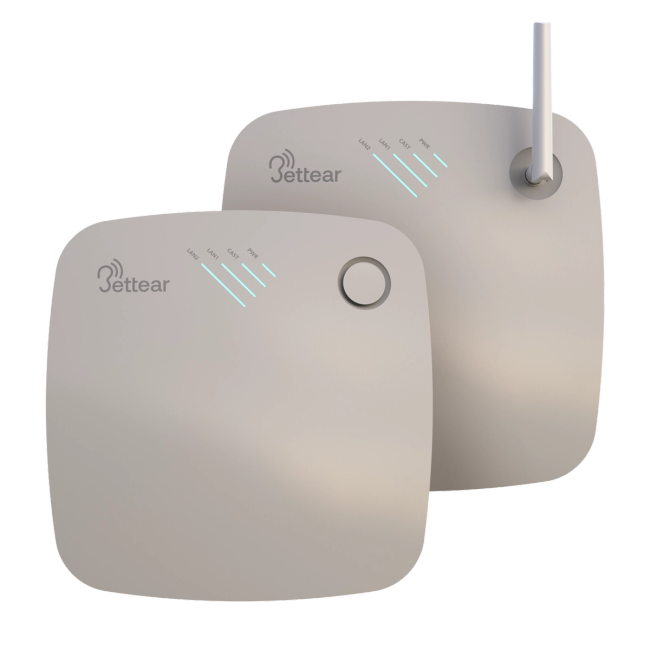

Adaptive RF Control: Switch between internal and external antennas to optimize coverage for any deployment.

image 2

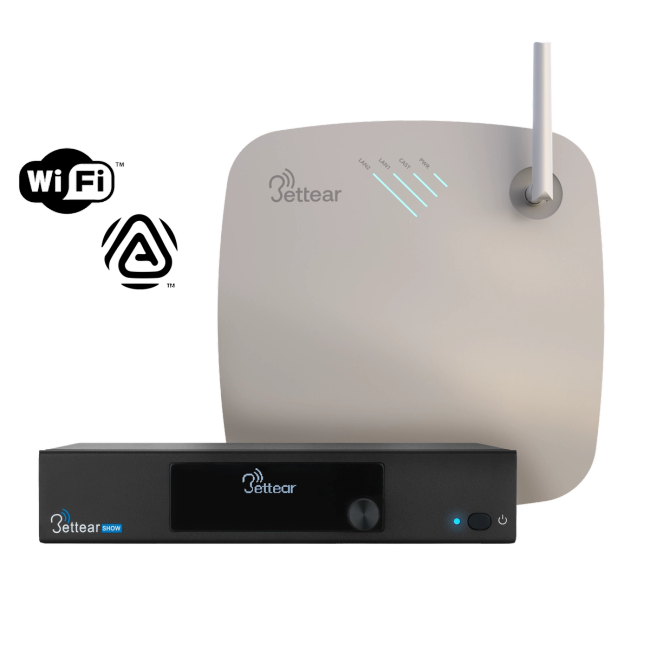

Complete Hybrid Streaming Solution: Seamlessly integrate CASTER with B-SHOW for high-quality, venue-wide audio coverage across Wi-Fi and Auracast™.

image 3

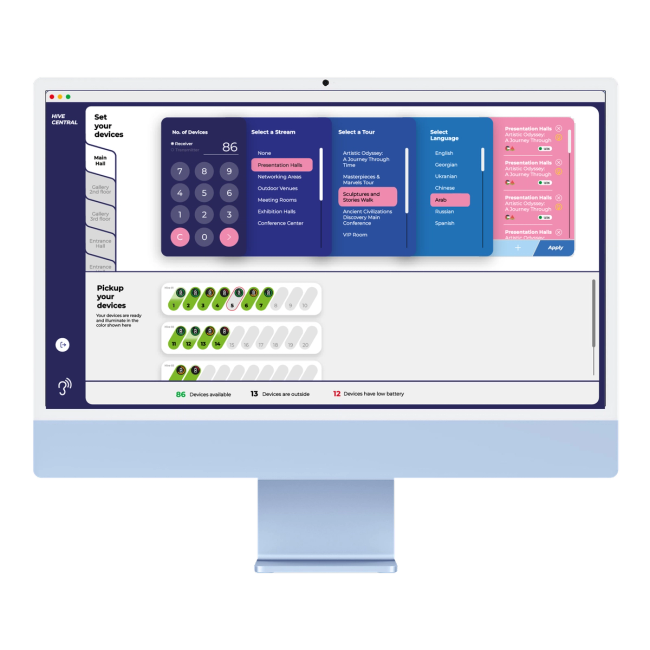

Flexible Management & Control: Choose between the intuitive web-based management panel and advanced Hive Central software to match your project requirements.

image 4

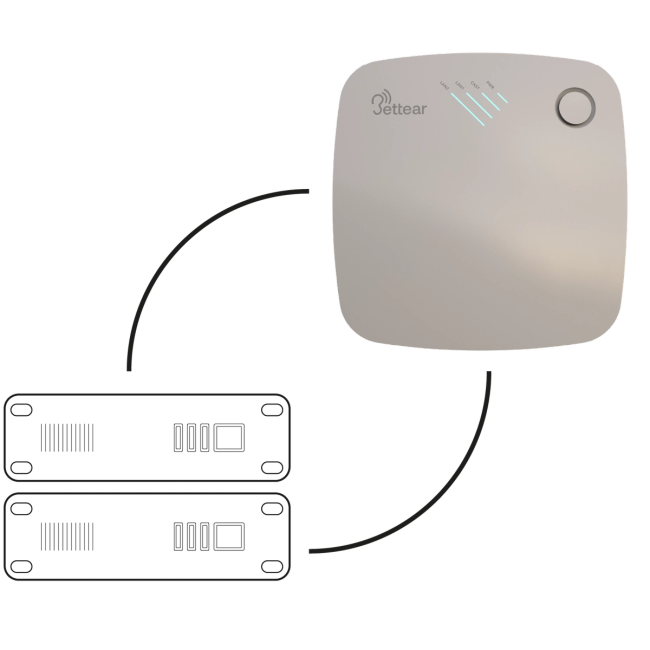

Control System Integration via API: Integrate CASTER with third-party control systems for seamless synchronization with control panels, calendars, and more.

image 5



Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio
Input modes Stereo / Mono / Mix

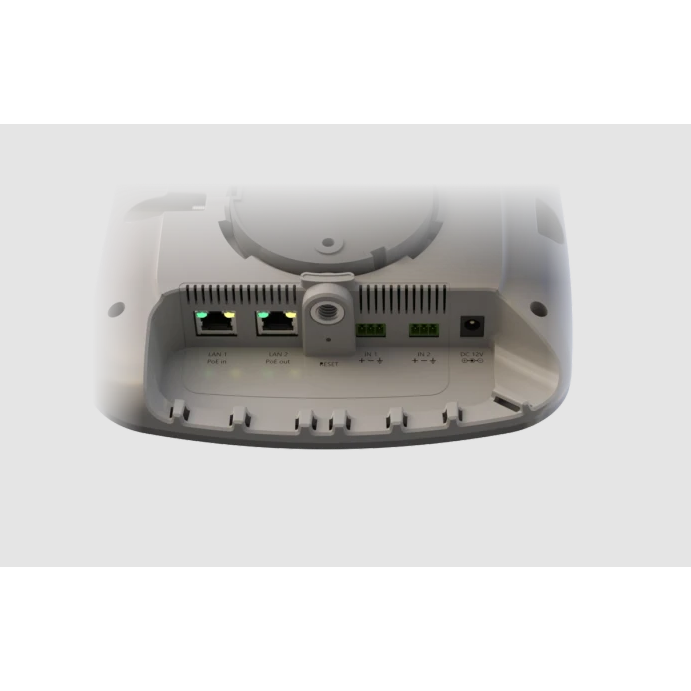

Inputs 2 × balanced analog, 3-pin 3.5 mm pitch terminal block (IN 1 / IN 2)
Max input voltage 2.1 Vrms (4.2 Vrms balanced)
ADC SNR / THD+N 110 dB / −90 dB
Frequency response 10 Hz – 22 kHz
Input gain −12 dB to +32 dB
Sample rate 48 kHz
Processing AGC (automatic gain control)
High-pass filter Off / 80 / 120 / 250 Hz
Low-pass filter Off / 8 / 12 / 16 kHz
Network
Ports LAN 1 – 1 Gbps (PoE+ in); LAN 2 – 1 Gbps (PoE out, LAN 2 licence)
IP addressing DHCP by default, falling back to 192.0.2.1; or static
Ports & services HTTP 80; UDP 1337–1339, 9000 (API), 5353; mDNS _caster._tcp
Audio sharing Multicast or unicast over Ethernet
Multicast 239.238.237.0/24 with IGMP (multicast mode)
Control API Text-based, UDP port 9000; Crestron driver available
Radio
Technology Bluetooth® 5.3 Low Energy (Auracast™)
Frequency range 2402–2480 MHz (2.4 GHz ISM band)
TX power Selectable 5–20 dBm via panel or Hive Central
Antenna Internal or external, switchable from the management panel or Hive Central
Antenna connector RP-SMA jack (female), 50 ohm. Takes an RP-SMA plug (male) antenna
Codec LC3 (16 / 24 / 48 kHz)
Broadcast modes Stereo / Dual Mono / Timecode
Extender mode Receives audio from a master CASTER over the network to extend coverage
Hybrid mode Auracast™ and B-SHOW Wi-Fi streaming at the same time
Secure broadcast 4–16-character password, AES128
Physical & Environmental
Dimensions 200 × 200 × 51 mm; bracket Ø 84 mm
Weight 419 g (0.92 lbs); bracket 25 g; shipping 589 g
Operating temperature −12 °C to +40 °C (10.4 °F to 104 °F)
Colour White

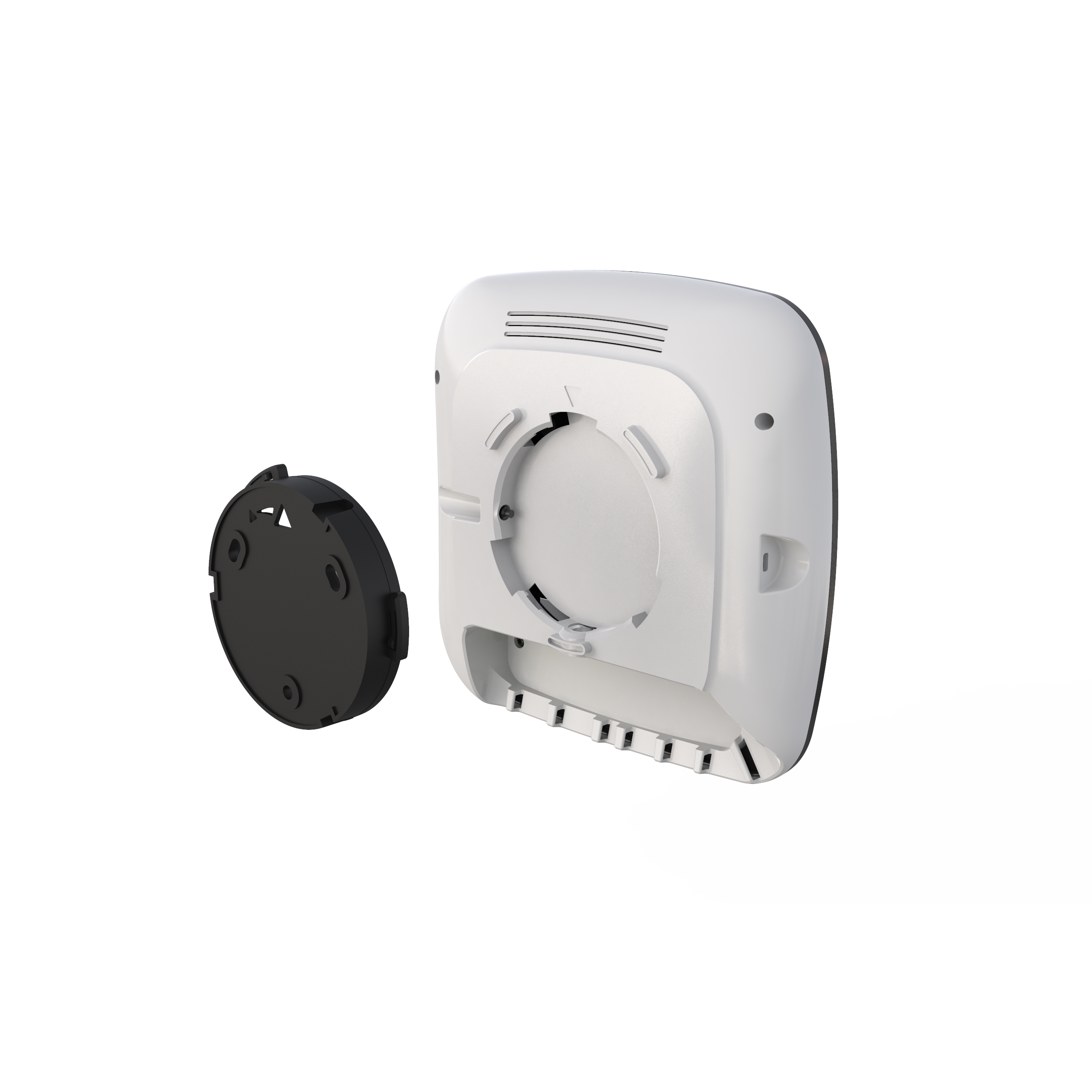

Mounting Wall/ceiling bracket (included) or 3/8" threaded stand
In the Box & Add-ons
Supplied CASTER X unit and wall/ceiling mounting bracket
Required 12 VDC / 2.5 A power supply (not included), or power the unit over PoE+
Antenna 2.4 GHz antenna with an RP-SMA plug (sold separately)
Compatible devices RTX receivers; RTX GO; B-PASS; Hive Central
