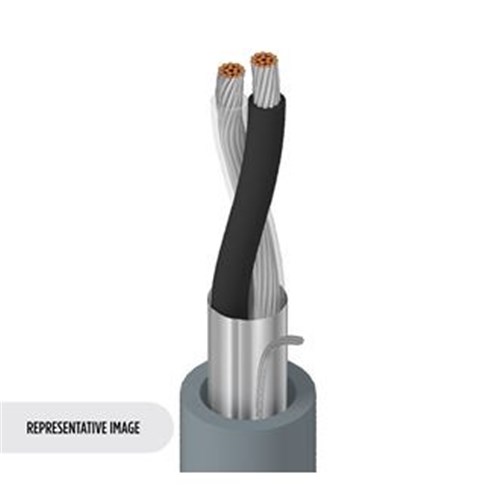

Belden Line Level Audio Cable 1 Pair 22 AWG Str TC O/A Foil PVC Jacket CMR - 305m Reel

Product Code: 1503A 010U1000

Key Features

Line Level Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, PVC Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR

$0.02 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Belden Line Level Audio Cable, 1 Pair #22 AWG Str TC, O/A Foil, PVC Jacket, CMR

Suitable Applications

Line level audio; Low voltage analog signals and control

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Construction Details

CONDUCTOR
Element Number of Element Size Stranding Material
Pair(s) 1 22 AWG 7x30 TC - Tinned Copper

INSULATION
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC - Polyvinyl Chloride 0.011 in (0.28 mm) 0.0485 in (1.23 mm) Black & Red

OUTER SHIELD
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC

OUTER JACKET
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.020 in (0.51 mm) 0.142 in (3.61 mm)

Overall Cable Diameter (Nominal)

0.142 in (3.61 mm)

Electrical Characteristics

ELECTRICALS
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 14.7 Ohm/1000ft (48.2 Ohm/km) 53 pF/ft (170 pF/m) 97 pF/ft (320 pF/m) 38 Ohm 66% 2.9 Amps per conductor @ 25°C

VOLTAGE
UL Voltage Rating
300 V (CMR)

Mechanical Characteristics

TEMPERATURE
UL Temperature Operating
60°C -30°C to +90°C

BEND RADIUS
Stationary Min. Installation Min.
1.4 in (36 mm) 1.4 in (36 mm)

Max. Pull Tension

25 lbs (11 kg)

Bulk Cable Weight

14 lbs/1000ft (21 kg/km)

Standards and Compliance

Environmental Suitability

Indoor - Riser, Indoor

Flammability / Reaction to Fire

UL1666 Riser, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)
