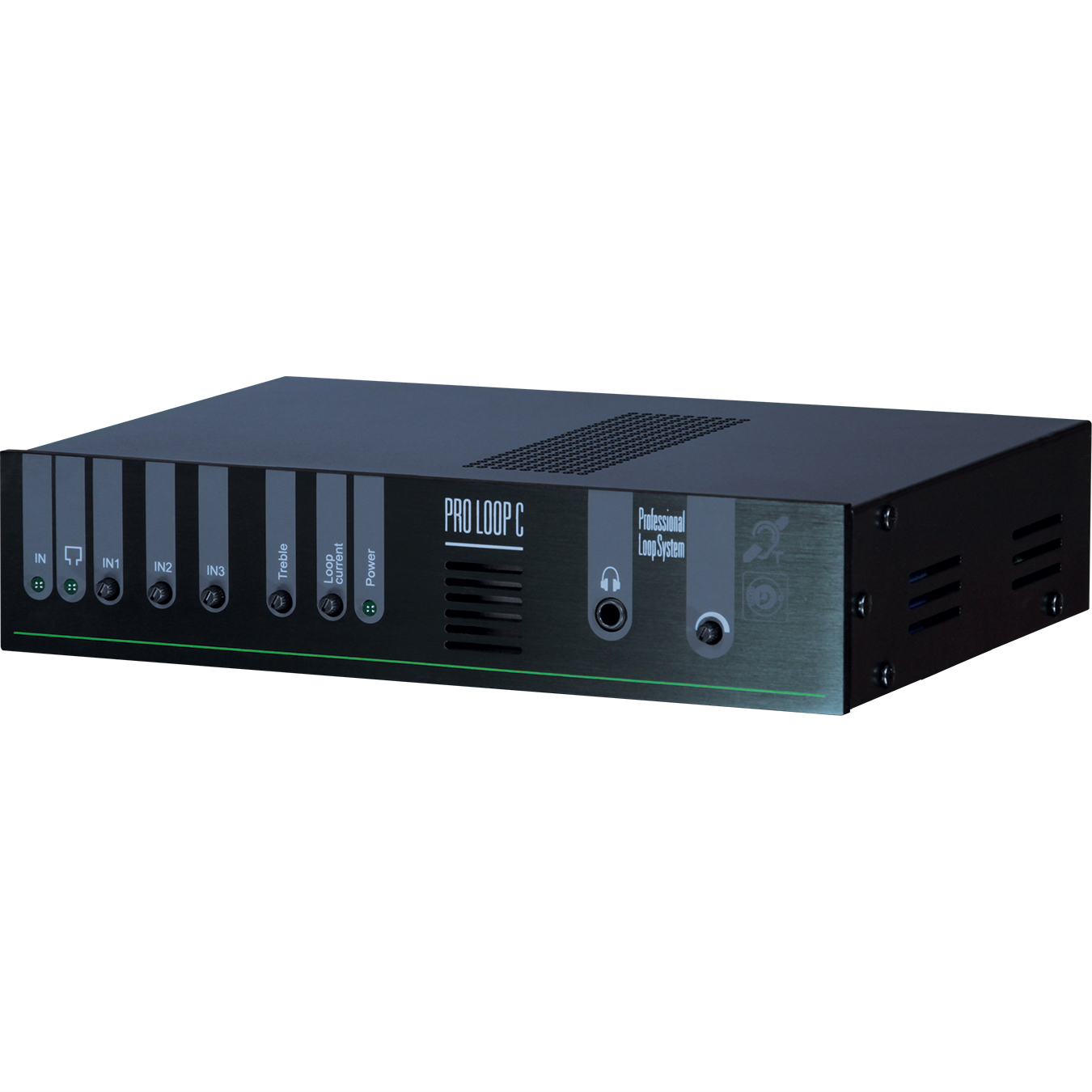

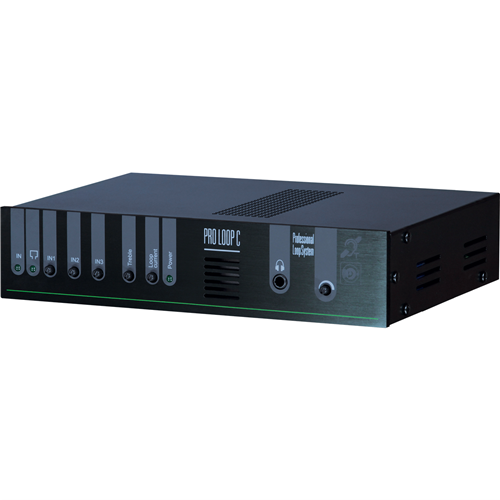

AUDIOropa Loop Amplifier PRO LOOP C 170m2

Product Code: HT A-4246-0

Key Features
  • High output current: 4.0 A RMS
  • Short-circuit proof
  • Automatically resettable fuse
  • Two balanced XLR(F) inputs
  • One RCA input
  • One line output
  • Extra sturdy sockets
  • Dual Action AGC for high speech intelligibility
  • High availability, operational and quality assurance
  • Comfortable monitoring of the magnetic field can easily be done through headphones or loudspeakers.
  • Tweeter controller to compensate for high-frequency losses due to armouring
  • 19 inch mounting material included in the scope of delivery
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AUDIOropa Loop Amplifier PRO LOOP C 170m2

The Pro Loop amplifier family, reliable and time-tested, is designed for professional use in private and public facilities where particularly high reliability with extremely safe operation is required.

With 100 per cent short-circuit-proof amplification, with switchable, balanced XLR(F) inputs and highly stable output powers, the Pro Loop C meets these requirements.

The Automatic Gain Control (AGC) ensures a constant field strength and produces a stable sound with clear speech emphasis even in acoustically difficult environments.

Exempt from GST under exemption code R11

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Mains connection: 115 / 230 V AC (mains switch) 50 / 60 Hz, 7-200 W, 10 A fuse
Induction loop output
Max. current: 4.0 A RMS
Max. voltage: 21.9 V RMS
Output AGC: Sets voltage and current for continuous signals such as oscillation and sine curves to -10 dB after 0.6-1 second. Short pulses and normal programme signals are not limited.
Frequency range: 100 - 5.000 Hz ( ± 3 dB)
Distortion: < 1%
Cable connection: Screw connections at the rear of the amplifier
Outputs
1. LINE OUT: 0 dBv RCA output (with AGC function)
Inputs
IN 1 and 2: 0.5 mV-100 mV / 10 kΩ (Mic.) alt. 25 mV - 4 V/ 10 kΩ (Line)
AGC, phantom power switchable, XLR(F) connectors
IN 3: 50 mV-10 V / 10 kΩ, RCA connection
AGC
Dynamic: > 70 dB
Rise time: 2 - 500 ms
Drop time: 0.5 - 20 dB/s
Controllers and displays
Treble control: 0 - +9 dB, potentiometer
Induction loop adjustment: 0 - 170 m², potentiometer
Display: Mains connection: 1 green LED
Input level: 1 green LED
Current loop: 1 green LED
Induction loop monitoring
6.3 mm jack for headphone connection
Housing
Dimensions (H x W x D): 64 x 295 x 205 mm
Assembly: 19 inch mounting material included in the scope of delivery
Weight: 3.6 kg
Colour: black
