Roadworx RW20SQ24 Analog Mic Cable Star-Quad 24AWG Black 500m Reels

Product Code: RW20SQ24BK500

Key Features

Analog Mic Cable Star-Quad 24AWG Black 500M Reels

$3.46 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

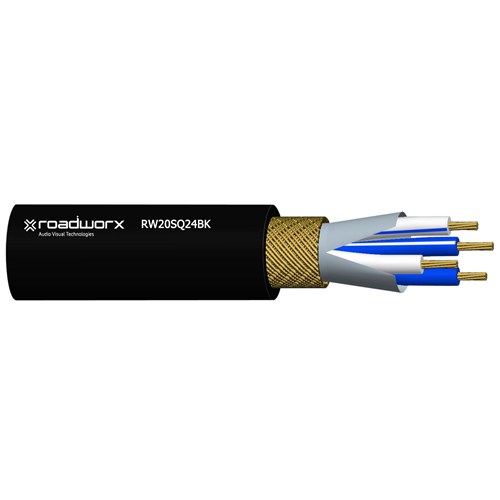

Roadworx RW20SQ24 Analog Mic Cable Star-Quad 24AWG Black 500M Reels

Description

42/0.1BC x 4C + PE Insulation + Cotton Wire + Cotton Paper + 128/0.1TC Braiding + PVC Sheath Φ6.2mm

Applicable Standards

N/A

Suitable Applications

Flexible and rugged cable for connecting to low level microphones and musical instruments in semi-permanent and stage-redeployment applications.

Please Note: This cable is able to be cut in lengths other than 50m increments if needed. Please contact Sales@madisonav.com.au to enquire about cut lengths.

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Cable Description

Conductor 42/0.1+/-0.006TC
Insulation Cores: 4
Material: PE
Colour: White, Blue, White/Blue strip, Blue/White strip
Min. Thickness 0.30mm / Nom. Thickness ≥0.35mm / Nom. O.D 1.45+/-0.1mm
Filler

Material: Cotton Wire

Material: Cotton Paper
Braiding 128/0.1+/-0.006TC O.D 3.98mm
Sheath Material: PVC / Colour: Black
Min. Thickness 0.91mm / Nom. Thickness ≥1.14mm / Nom. Sheath O.D 6.2+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 87.2 ohm/km 20°C
Outer Shield Max D.C Resistance 23.3 ohm/km 20°C
Nom. Capacitance Core to Core 128±2 pF/m (1KHz)
Nom. Capacitance Core to Screen 188±2 pF/m (1KHz)
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Inner Sheath Elongation ≥300%
Inner Sheath Tensile Strength ≥13.6 N/mm2
Outer Sheath Elongation ≥100%
Outer Sheath Tensile Strength  ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 92N
Min. Bend Radius (install) 62mm
Approximate Mass 5.99kg/100m
Sheath Printing ROADWORX RW20SQ24 Analog Microphone Cable, Star- Quad, 24AWG (meter marking)
