Roadworx RW250222 Analog Audio Cable 2 Pair 22AWG Grey 500m Reels

Product Code: RW250222GY500

Key Features

Analog Audio 2 Pair 22AWG Grey 500M Reels

$2.89 inc GST
(M)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

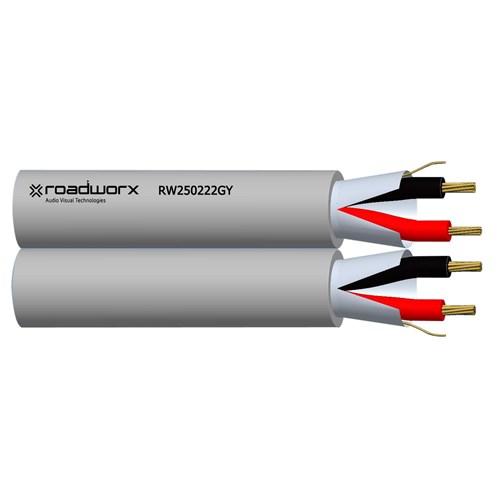

Roadworx RW250222 Analog Audio 2 Pair 22AWG Grey 500M Reels

Description

(7/0.25TC x 2C + PVC Insulation + Drain Wire + Al. Foil) x 2C + PVC Sheath O.D 3.65 x 7.3mm

Applicable Standards

N/A

Suitable Applications

For the interconnection of instruments and control equipment.

Colours also available - contact us for colour options, MOQ may apply

Warranty

We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

Cable Description

Conductor 7/0.25+/-0.006TC
Insulation Pair: 2
Material: PVC
Colour: Red, Black
Min. Thickness 0.20mm / Nom. Thickness ≥0.25mm / Nom. O.D 1.3+/-0.05mm
Drain Wire 7/0.25+/-0.006mmTC
Screen

Al. Foil Coverage 100%
Sheath Material: PVC / Colour: Grey/Red
Min. Thickness 0.41mm / Nom. Thickness ≥0.51mm
Nom. Sheath O.D H: 3.65+/-0.2mm, W: 7.3+/-0.2mm
Spark Voltage: 3000V a.c

Electrical Properties

Conductor Max D.C Resistance 55 ohm/km 20°C
Voltage Test: Core to Core 1000V a.c/1min
Voltage Test: Core to Screen 1000V a.c/1min

Physical Properties

Insulation Elongation ≥100%
Insulation Tensile Strength ≥13 N/mm2
Sheath Elongation ≥100%
Sheath Tensile Strength ≥12 N/mm2

Mechanical Properties

Operating Temperature Range -15 to 70
Max. Recommended Pulling Tension 96N
Min. Bend Radius (install) 36.5mm
Approximate Mass 4.9kg/100m
Sheath Printing ROADWORX RW250222 Analog Audio, 2 pair, 22AWG (meter marking)
