  • AMX MU-1000 MUSE Automation Controller - ICSLan and PoE

AMX MU-1000 MUSE Automation Controller - ICSLan and PoE

Product Code: AMX CCC000

Key Features
  • Modern Embedded Processor – Power to run a nearly unlimited number of scripts simultaneously
  • Robust eMMC storage – Industrial grade storage provides reliability in high-access 24/7 installations
  • HControl, ICSP, and HiQNet Translation Built-In – Native integration with new and legacy HARMAN Professional products
  • Secure Linux Platform – Engineered to surpass the requirement of the most secure environments
  • ICSLan Port – Create an isolated network for controlled devices
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

AMX MU-1000 MUSE Automation Controller - ICSLan & PoE

The AMX MU-1000 MUSE Automation Controller is a powerful, secure, and reliable device that provides a dedicated computing resource running HARMAN Professional's AMX MUSE automation platform. The MU-1000 can simultaneously process a virtually unlimited number of scripts written in JavaScript, Python, or Groovy and natively supports Low-Code development with Node-RED.

AMX MUSE Automation Controllers feature a modern embedded processor that’s 10x faster than the processor in AMX NX Controllers, bountiful memory, and rugged, industrial grade eMMC storage. Built on HARMAN’s secure Linux platform, MUSE controllers are designed to surpass the requirements of the most secure installations. Additionally, these Controllers natively support HARMAN's HControl (open-API), HiQnet (legacy HARMAN audio devices) and ICSP (legacy AMX control devices) protocols making them the ideal automation processor for any space, environment, or application - old and new.

The MU-1000 is small enough to easily conceal and is powered with PoE to simplify installation even further. An ICSLan network port provides an isolated network for controlled devices.

Common Applications:

AMX MUSE Automation Controllers provide a powerful, secure, and reliable dedicated computing resource to run HARMAN Professional’s MUSE automation platform in any environment where AV systems, software applications, or other devices require control and automation.



We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

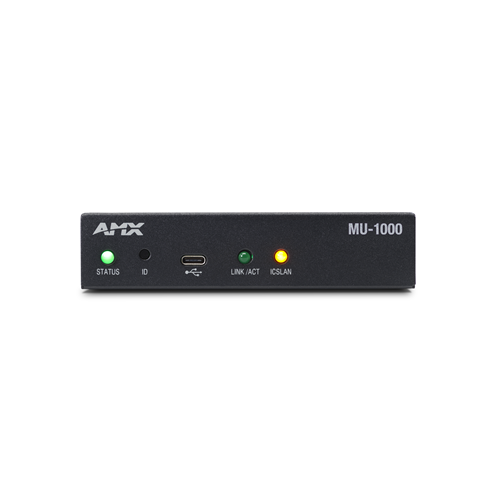

Ports Front: (1) USB-C Program Port

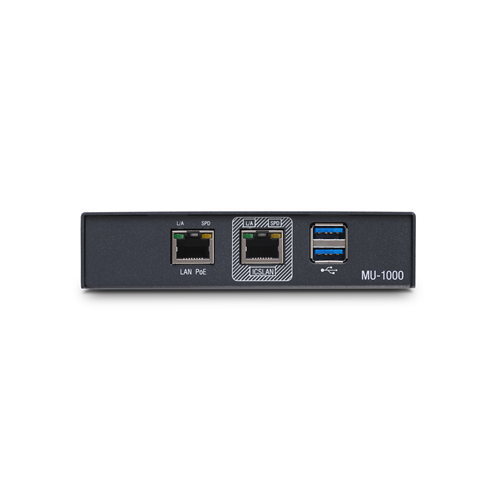

Rear: (1) LAN Port with PoE, (1) ICSLan Port, (2) USB-A Host Ports
Power Requirements PoE 802.3af Class 0 - 15.4W Maximum
Environmental • Operating Temperature: 32° F (0° C) to 122° F (50° C)
• Storage Temperature: 14° F (-10° C) to 140° F (60° C)
• Operating Humidity: 5% to 85% RH
• Heat Dissipation (On): 10.2 BTU/hr
Regulatory Compliance • ICES 003
• CE EN 55032
• CE EN 55035
• CE EN 62368-1
• IEC 62368-1
• UL 62368-1
• RoHS / WEEE compliant
Dimensions (H x W x D) 1” x 5” x 5” (25mm x 125mm x 125mm)
Product Weight 1.25 lbs (472g)
SKU Numbers AMX-CCC000
