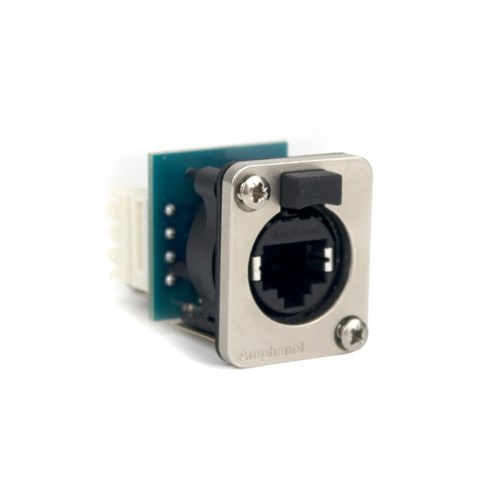

Amphenol XLRnet D Type Idc 110 Cat6 IP54

XLRnet was designed in conjunction with the Amphenol Data / Telecom product group of Amphenol Canada Corp., a subsidiary of Amphenol Corporation. Utilising our combined expertise and knowledge of the professional audio and high-speed data markets we are proud to offer the XLRnet series. Featuring Class D (10/100 BASE-T), CAT5E (1000 BASE-T) or CAT6 (10GBASE-T) ethernet performance in A, B or D shell housings with integrated LED’s and complete shielding options we have your high-speed data requirements covered.

Features
  • RJ45 Class D (10/100 Base-T), CAT5E (1000 Base-T) or CAT6 (10GBASE-T) Ethernet performance
  • D type XLR standard housings
  • IDC Punchdown block
  • Thru-adaptor / Feedthrough
  • Horizontal or Vertical PCB
Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact us on the following phone numbers: Australia 1800 00 77 80. New Zealand 0508 788 889.
Number of contacts 8
Contact Arrangement RJ45
Termination Printed Circuit Board (PCB) - through hole, Feedthrough, IDC Termina
Flammability UL94V-0
Environmental Complies with EU RoHS 2 Directive 2011/65/EU
Solderability MIL-STD 202, Method 208

ELECTRICAL CHARACTERISTICS

Rated current per contact 1.5 A
Rated Voltage 125V AC

Typical Contact Resistance

20mΩ

Insulation Resistance > 500MΩ
Dielectric Strength 1000 VAC, 60 secs
Max. Frequency 250MHz
Ethernet Standard 10GBASE-T
Transmission Spec. EIA/ TIA568-C.2, ISO/IEC 11801, EN50173
PoE 802.3at Type 2
LED Type IP40 (with EMI/RFI shield)

CLIMATIC CHARACTERISTICS

Protection Class IP40 (with EMI/RFI shield)
Operating Temperature -40°C to 80°C (-40ºF to 176ºF)

MECHANICAL CHARACTERISTICS

Weight** - A & B Housing
- Shielded Housing
- D Shell
11g (0.024lb)
17g (0.037lb)
25g (0.055lb)
Mechanical Operations 1000
Insertion and Withdrawal Force ≤ 21N
Latch Spring Steel
Panel Thickness max 3mm
Mounting screw torque max. 0.35Nm
Fastener Self-Tapping screw M2.5

MATERIALS

Connector Shell / Housing Thermoplastic, DSM Stanyl UL94V-0, 30% GF / PA66 30% GF
Flange (A type) Thermoplastic, DSM Stanyl UL94V-0, 30% GF
Flange (B type) Diescast Zinc Alloy 3
Flange Finish (B type)

Satin Nickel

Contact

Phosphor Bronze

Contact Finish - Ground
- RJ45

0.38µm Au over 1.27µm Ni
1.27µm Au over 1.27µm Ni

Metal Hood Shield EMI/RFI

Brass, nickel plated

Latch lock and Spring

Spring steel
