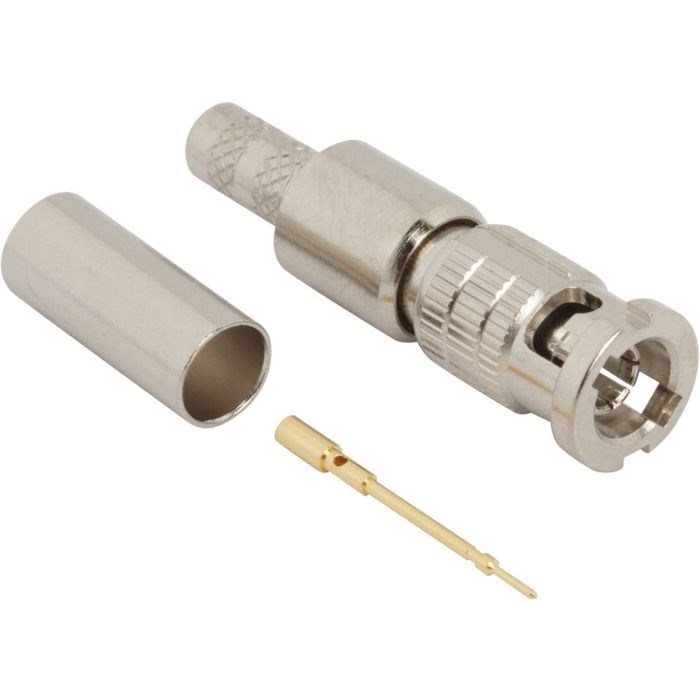

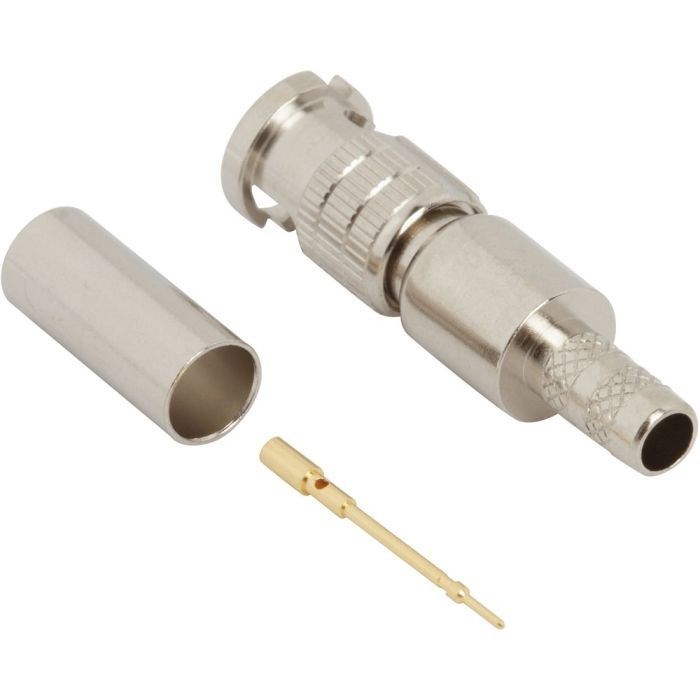

Amphenol 12G HD BNC Plug 75 Ohm to suit 1855A, 4855R, 4855F

Product Code: 034-1026-12G

Key Features

HD-BNC Straight Crimp Plug Belden 1855A 75 Ohm 12G Optimized

$32.59 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

RF Connector HD-BNC Straight Crimp Plug Belden 1855A 75 Ohm 12G Optimized

Warranty

We offer a 90 day warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Body Finish Nickel
Body Material Brass
Cable Type (Terminates to) Belden 1855A, Belden 4855R, Belden 4855P
Contact Finish Gold
Contact Material Phosphor Bronze
Contact Termination Crimp
Coupling Mechanism Bayonet
Export Control Classification Number EAR99
Frequency (Max GHz) 18
Gender Plug
IP Rating Not Rated
Impedance (Ohms) 75
Insulator Material PTFE
Isolated No
Low PIM No
Mil Qualified Not Mil Qualified
Non Magnetic Contains Magnetic Materials
Orientation Straight
Panel Mounting Feature Not Applicable
Ports 1 (Single Port)
Size Category Miniature
Temp (Max Degrees Celsius) 85
Temp (Min Degrees Celsius) -40
Termination Style Cable - Crimp
