AKG SRA-2EW Passive Uni Direction Antenna

Product Code: AKG 3009H00170

Key Features
  • Works as transmitting and receiving antenna. A partner for wireless microphones and in ear monitoring.
  • Operates in an ultra-wide frequency range. From 470MHz to 952MHz for universal use.
  • 70 degree covering angle. To reduce unwanted radio signals.
  • 6dB antenna gain. For long-distance applications.
  • Water-resistant construction. To withstand extreme weather conditions.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

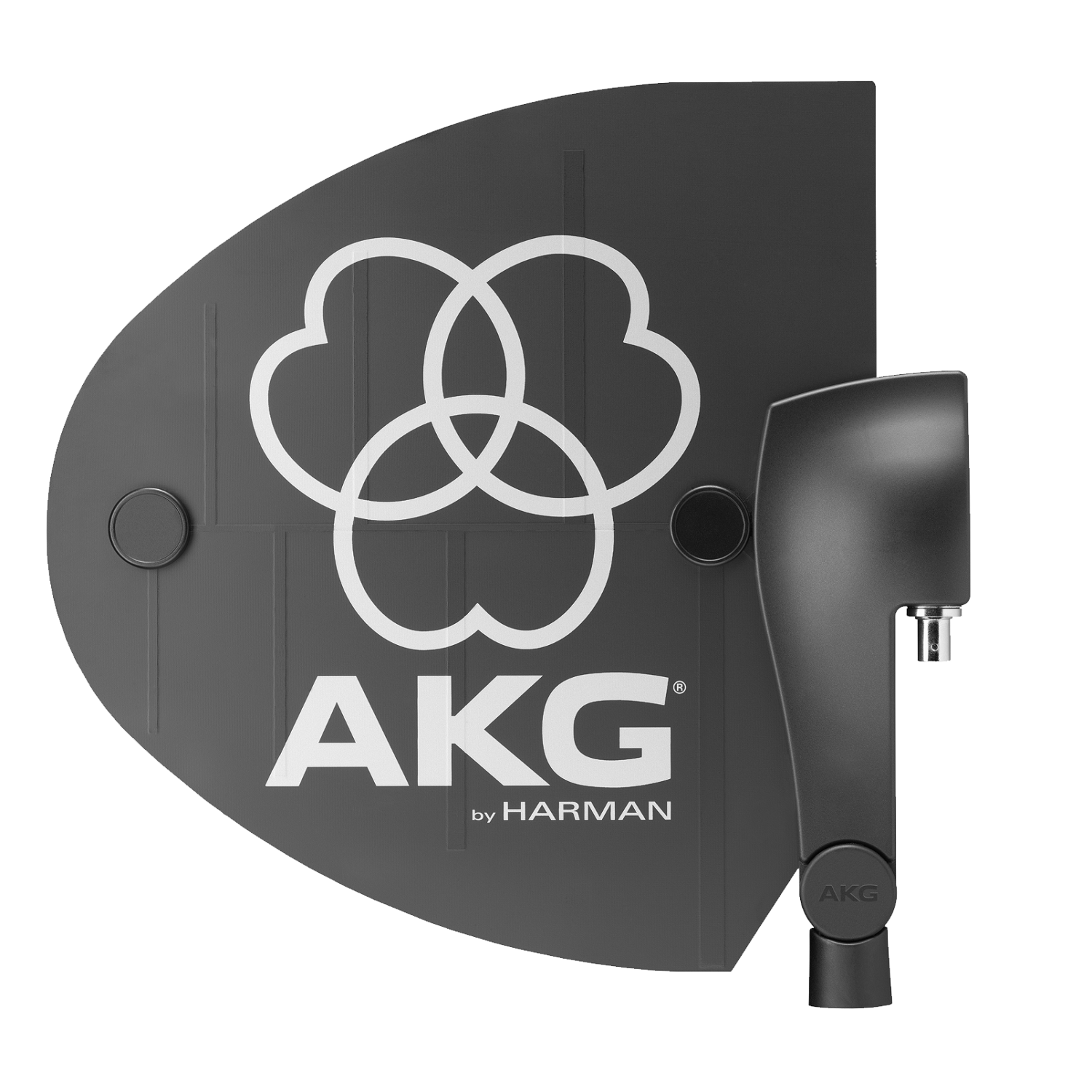

AKG SRA-2EW Passive Uni Direction Antenna

Universal directivity

The SRA2 EW is a passive directional wide-band UHF antenna that can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470MHz to 952MHz and provides a covering angle of 70° and an antenna gain of 6dB. The SRA2 EW is built in a passive technology and requires no powering. It works for short cable lengths up to 10m and supports a professional BNC connector.

The antenna has waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Switching bandwidth (from/to) 470 to 952 MHz
Antenna gain 4.5 dBi
Covering angle 70 Grad

Antenna Output

Amount 1
Type BNC
Gender Female
Note RF output (50 Ohms)
Recommended load impedance 50 Ohms

Dimensions

Length 240 mm
Height 230 mm
Width 26 mm
Net Weight 250 g

Design

Body plastic
Finish black
