AKG SRA-2BEW Active Directional Wide Band UHF Antenna

Product Code: AKG 3009H00180

Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

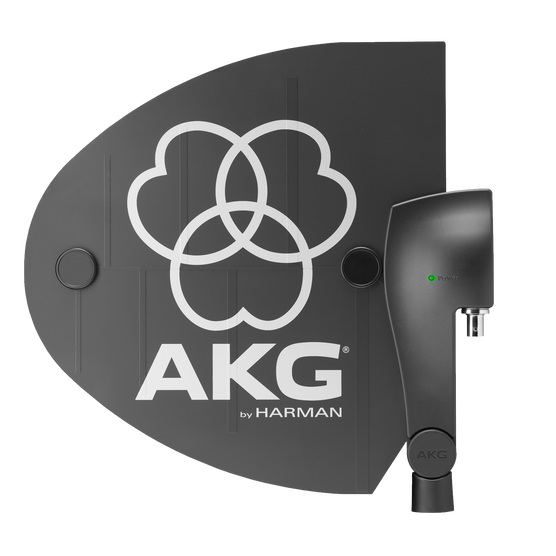

AKG SRA-2BEW Active Directional Wide-Band UHF Antenna Closer to the Hot Spot The SRA2 B/EW is an active directional wide-band UHF receiving antenna for use with wireless microphone systems. It operates in a frequency range from 470MHz to 952MHz, provides a covering angle of 70 and has a built-in amplifier. With a total gain of 22dB, it compensates for long cable runs. In combination with dedicated antenna components, it works for cable lengths up to 300m and can be remotely powered through the antenna cable. The antenna has waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws. Intergrated high-performance antenna booster: 22dB total gain for cable lengths up to 300m. Remote powering via the antenna cable: Eliminates any extra installation effort. Operates in an ultra-wide frequency range: From 470MHz to 952MHz for universal use. 70 degree covering angle: To withstand extreme weather conditions.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Switching bandwidth (from/to) 470 to 952 MHz
Antenna gain 21.5 dBi
Covering angle 70 Grad

Antenna Output

Amount 1
Type BNC
Gender Female
Note RF output (50 Ohms)
Recommended load impedance 50 Ohms

Dimensions

Length 240 mm
Height 230 mm
Width 26 mm
Net Weight 250 g

Design

Body plastic
Finish black

Powering Interface

Voltage 8 to 8 V
