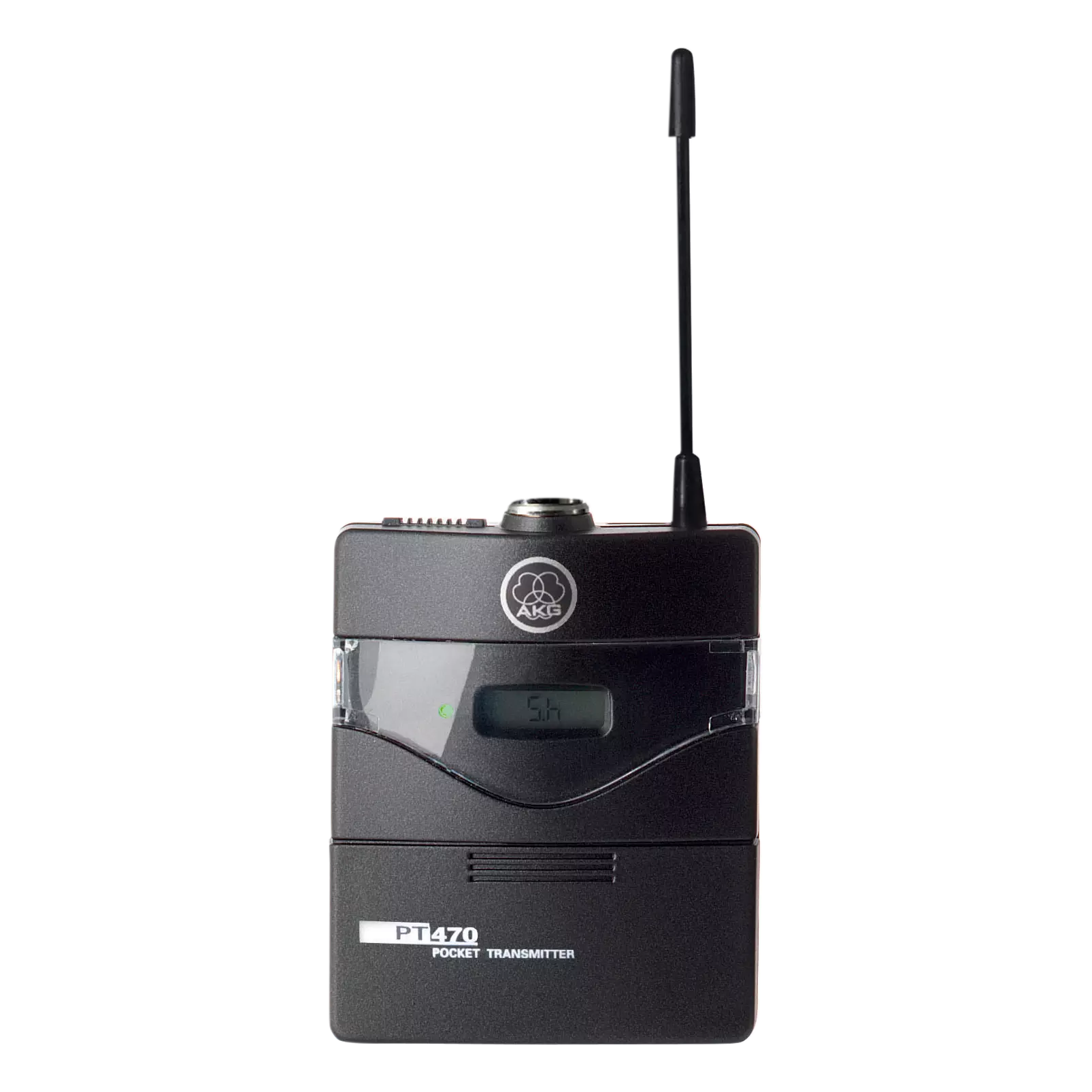

AKG PT470 Wireless Body Pack Transmitter

Product Code: AKG 3302H00010

Key Features
  • Pilot tone transmission
  • For transmitter battery status monitoring and tone code squelch
  • Compact, rugged body-pack design
  • For maximum wearing comfort
  • External mute switch connector
  • For remote muting of the microphone
  • Integrated charging contacts
  • For charging of a standard NiMH battery inside the transmitter
  • Infrared synchronization
  • For instant transmitter setup
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG PT470 Wireless Body-Pack Transmitter

Flexible and expandable

The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. A pilot tone transmission prevents unexpected startup noise, continuously sending transmitter data, including low battery information, to the receiver. An enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With the integrated charging contacts, a standard NiMH rechargeable battery can be charged inside the transmitter. An optional RMS4000 external mute switch allows the user to mute the transmitter remotely. Its professional mini XLR audio connector makes the body pack compatible with a broad range of lavalieres and headsets.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 35 - 20000 Hz
Signal to Noise 120 dB-A
THD at 1 kHz 0.7 Prozent
Peak deviation 48 kHz
Nominal deviation 20 kHz
Radio Output Power (min/max) 10 to 50 mW
Transmitter Synchronization Infrared
Mute Switch Type Jack Mono (1/4")
Mute Switch Gender Female
Switching bandwidth 30 MHz
Recommended simultaneous channels 24
Number of selectable frequencies 1220 (selectable in 25kHz steps)
Frequency Selection Selectable frequency in 25kHz steps
Radio range (Line of sight) 100m (depending on antenna system)
Switchable RF power No
Pilot Tone Yes

Dimensions

Length 30 mm
Height 73.5 mm
Width 60 mm

Design

Body plastic
Finish black

Audio Input

Type Mini XLR
Gender Female
Contacts 3-pin
Maximum audio level 12 dB

Battery

Battery type FR 6 AA lithium battery
Number of batteries 1
Operating time 14 h

Battery 1

Battery type LR6 AA alkaline Battery
Number of batteries 1
Operating time 7 h

Battery 2

Battery type HR 6 AA (NiHM) rechargeable battery
Compatibel Charging System CU400
Number of batteries 1
Operating time 8 h
