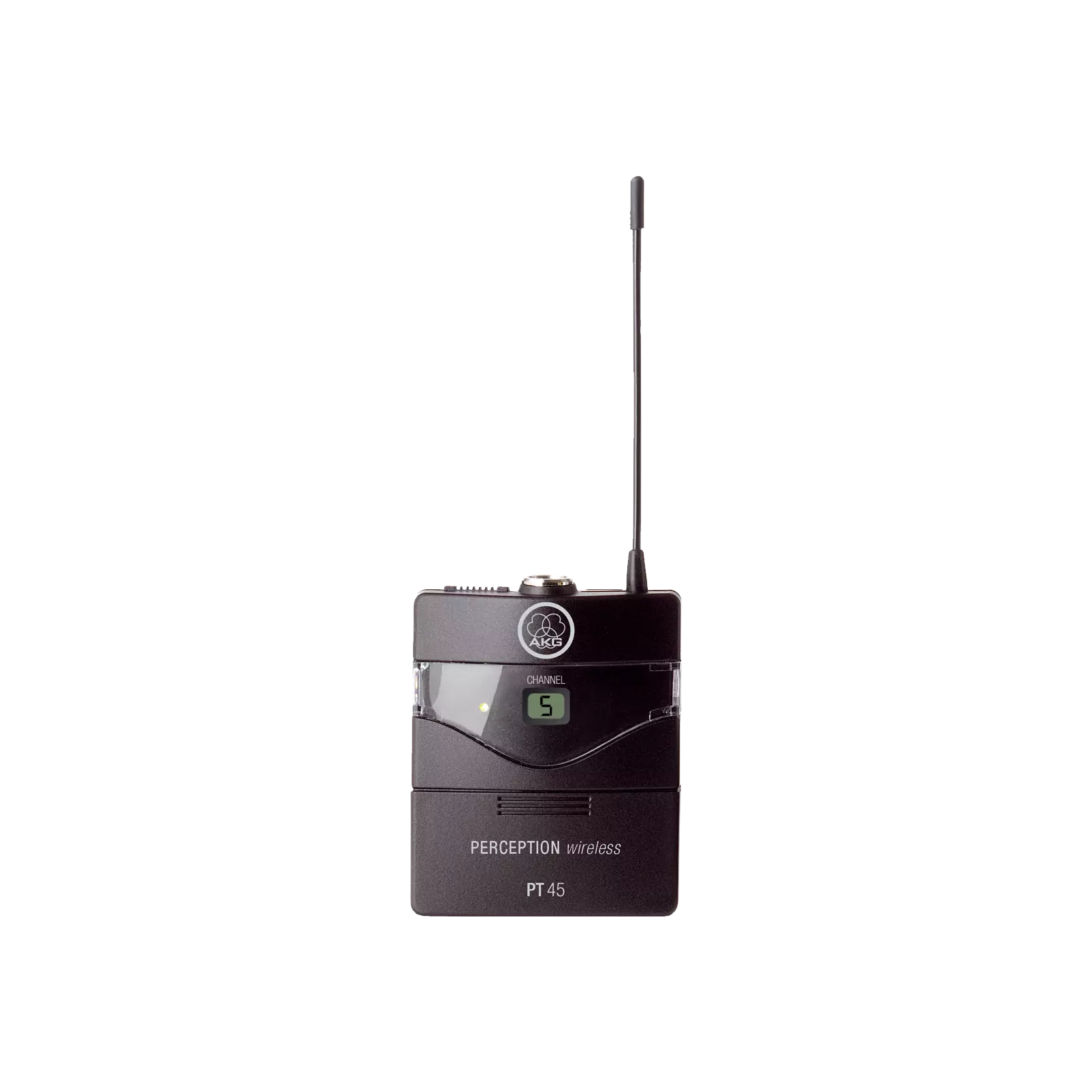

AKG PT-45A Wireless Body Pack Transmitter

Product Code: AKG 3247H00010

Key Features
  • Up to eight hours of operation from a single AA-size battery. Saves money in day-to-day use.
  • Proffessional three-pin mini XLR connector. Compatible with guitar cables, headset and instrument mics.
  • Gain control on transmitter. For immediant volume adjustment.
  • Noiseless on/off/mute switch. For easy operation.
  • Compact and rugged body-pack design. For maximum wearing comfort.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG PT-45A Wireless Body Pack Transmitter

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio frequency bandwidth 40 - 20000 Hz
Signal to Noise 150 dB-A
THD at 1 kHz 0.8 Prozent
Operating temperature range -10 to 55 Celsius
Peak deviation 48 kHz
Nominal deviation 15 kHz
Transmitter Synchronization Manual
Switching bandwidth 30 MHz
Recommended simultaneous channels 5
Number of selectable frequencies 8 Fixed frequencies
Frequency Selection Fixed frequency
Radio range (Line of sight) 30m
Switchable RF power no
Modulation FM (Frequency Modulation)
Encryption No encryption
Pilot Tone No

Battery 2

Number of batteries 1
Operating time 8 h

Dimensions

Length 60 mm
Height 75.5 mm
Width 30 mm

Design

Body plastic
Finish black

Audio Input

Type Mini XLR
Gender Female
Contacts 3-pin
Maximum audio level 12 dB
Rated Impedance 1 Ohms

Battery

Number of batteries 1
Operating time 14 h

Battery 1

Battery type LR6 AA alkaline
Number of batteries 1
Operating time 8 h

What's in the Box?

  • 1 x PT45 Body-pack transmitter
  • 1 x MKG L Instrument cable
  • 1 x BC400 belt clip
  • 1 x AA size battery
