AKG PCC160 Professional boundary layer microphone

Product Code: AKG 3332H00010

Key Features
The industry-standard stage-floor microphone.
$1,403.41 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

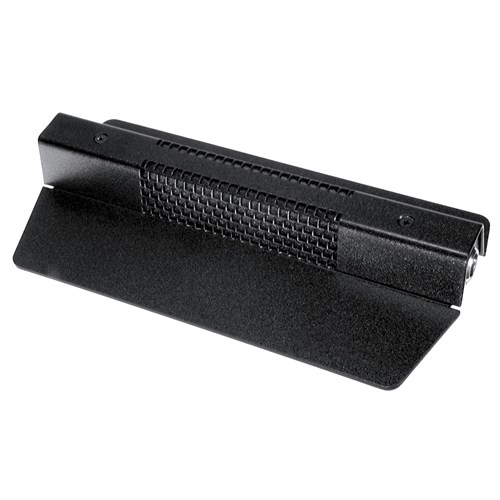

The PCC160 is a professional boundary layer microphone and an industry standard stage floor microphone. It´s capable of withstanding up to 120dB SPL without distortion. A bass-tilt switch allows the user to tailor the low-end response for particular applications.

PCC® (Phase Coherent Cardioid®) technology uses diaphragms so small that any phase cancellations are above the audible range. This results in a wide, smooth frequency response free of phase interference. The PCC160 uses a supercardioid polar pattern that improves gain before feedback and reduces unwanted room noise from the rear.

Features

Supercardioid polar pattern

For impressive gain before feedback

PCC® (Phase Coherent Cardioid®) technology

For a wide, smooth frequency response

Three-position bass-tilt switch

For optimized body noise suppression

Extremely low profile

For inconspicuous placement on the stage floor

Finely crafted, rugged housing

To withstand the rigors of the stage

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 50 - 18000 Hz
Equivalent noise level 22 dB-A
Sensitivity 22 mV/Pa
Signal to Noise 72 dB-A
Recommended load impedance 2000 Ohms

Dimensions

Length 170 mm
Width 80 mm
Height 20 mm

Design

Finish black

Audio Output

Type Switchcraft TA3F
Contacts 3-pin

Powering Interface

Voltage 12 to 48 V

Application

Conferencing Yes

Device

Boundary Layer Microphone Yes
