AKG P-820TUBE Tube DualCapsule Tube Microphone

Product Code: AKG 3101H00440

Key Features
  • Elegant remote control. Allows choice of nine different polar patterns.
  • Switchable bass-cut filter. Eliminates rumble or footfall noise.
  • Switchable attenuation pad. For high SPL applications up to 155 dB SPL
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

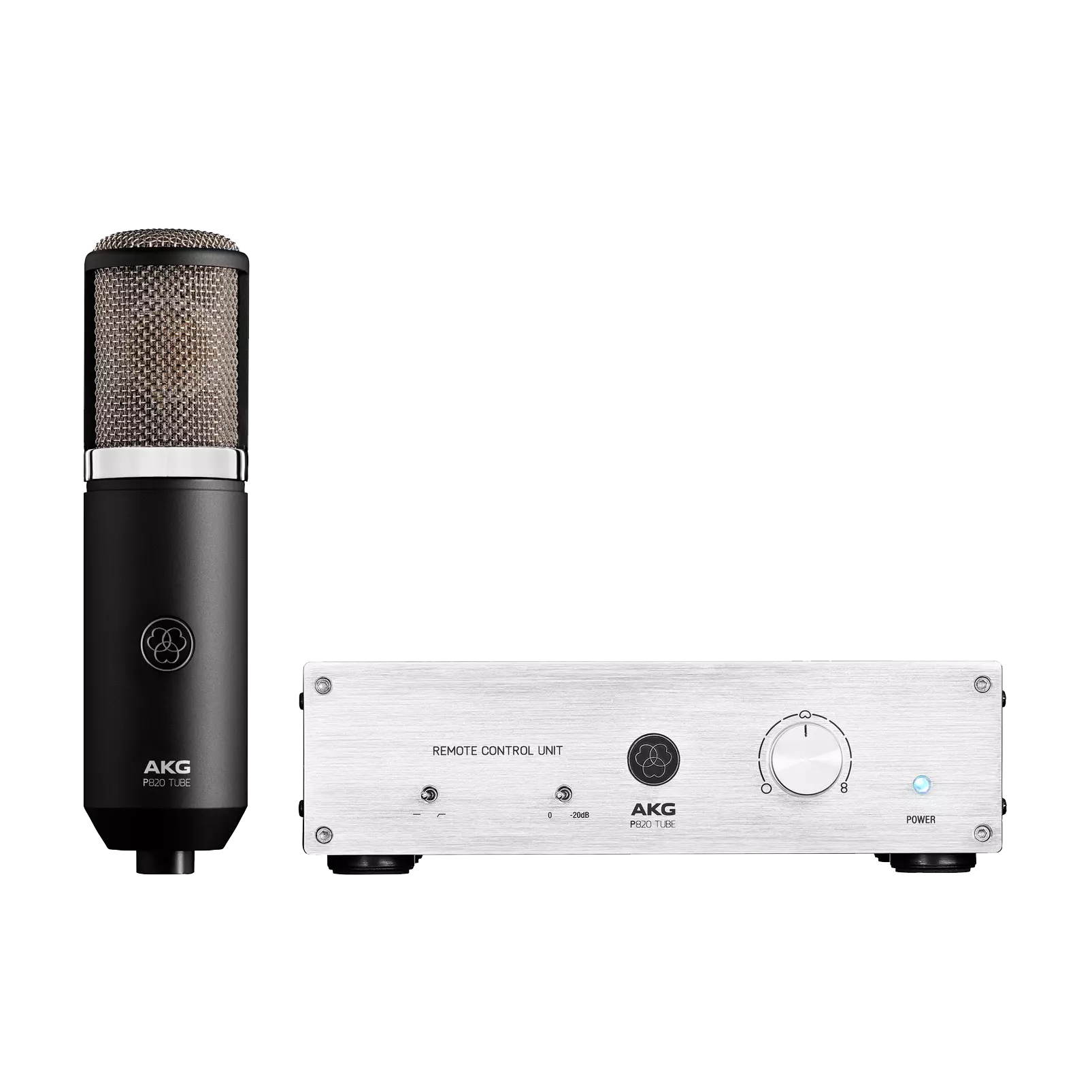

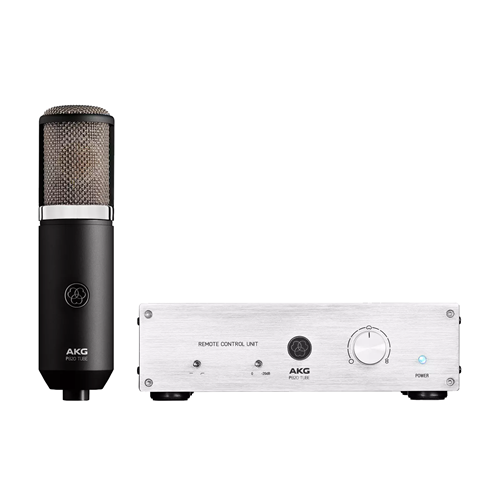

AKG P-820TUBE Tube Dual-Capsule Tube Microphone

Greater in spirit, larger than life

The P820 Tube high-performance multi-pattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 16 dB-A
Sensitivity 20 mV/Pa
Signal to Noise 78 dB-A
Preattenuation Pad -20 dB
Bass cut filter 80 - 12 dB/octave (selectable on remote control unit)
Electrical impedance <= 200 Ohms
Recommended load impedance >= 1000 Ohms
Polar Patterns Cardioid, Omnidirectional, and Figure of eight

Application

Project Studio Yes

Dimensions

Length
212 mm
Diameter 54 mm
Net Weight 765 g

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Powering 210-240 VAC or 110-120 VAC (selectable)
Primary Fuse 125 mA/250 V slow-blow

Instrument

Vocals Yes
Horns / Woodwinds Yes

What's in the Box?

  • 1 x P820 Tube Microphone
  • 1 x Remote Control Unit
  • 1 x Spider Shock Mount
  • 1 x Metal Carrying Case
  • 1 x Audio/Control Cable
  • 1 x US Type Power Cord
  • 1 x UK Type Power Cord
  • 1 x European Type Power Cord
