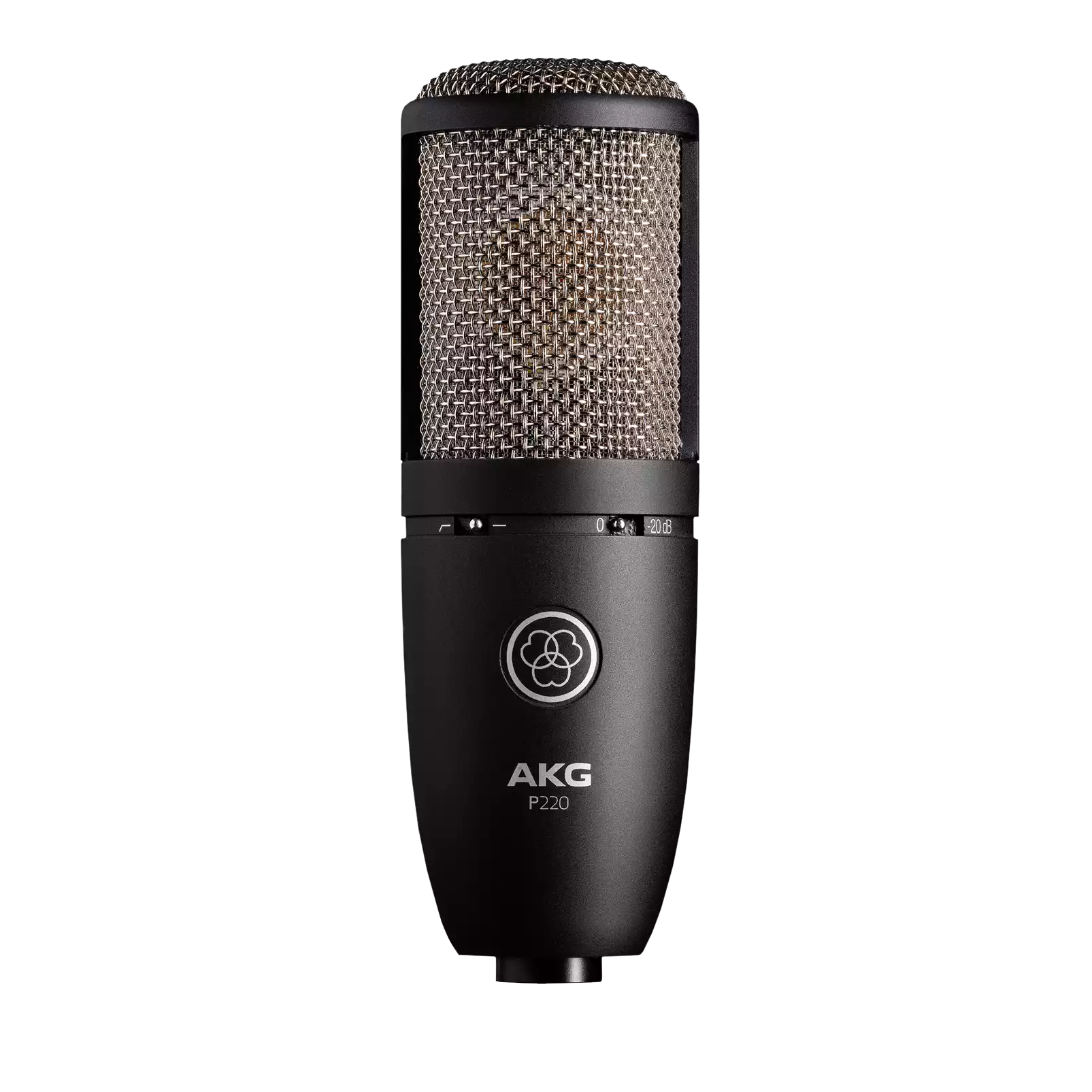

AKG P-220 Large Diaphragm True Condenser Microphone

Product Code: AKG 3101H00420

Key Features
  • Rugged all-metal body and robust design. Withstands tough day-to-day use.
  • Switchable bass-cut filter. Eliminates rumble or footfall noise.
  • Switchable attenuation pad. For high SPL applications up to 150 dB SPL.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG P-220 Large Diaphragm True Condenser Microphone

Professional projects

The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications.

The P220 represents the most popular and successful microphone within the actual Project Studio Line. It comes complete with a spider-type shock mount in an aluminum carrying case.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Polar Pattern Cardioid
Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 16 dB-A
Sensitivity 20 mV/Pa
Signal to Noise 78 dB-A
Preattenuation Pad -20 dB
Bass cut filter 300 Hz - 12 dB/octave
Electrical impedance <= 200 Ohms
Recommended load impedance >= 1000 Ohms

Application

Live Instrument Yes
Project Studio Yes

Dimensions

Length 165 mm
Diameter 54 mm
Net Weight 530 g

Powering Interface

Voltage 44 to 52 V
Current <= 3 mA

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Instrument

Vocals Yes
Horns / Woodwinds Yes
Piano / Strings Yes

What's in the Box?

  • 1 x P220 Microphone
  • 1 x Spider Shock Mount
  • 1 x Metal Carrying Case
