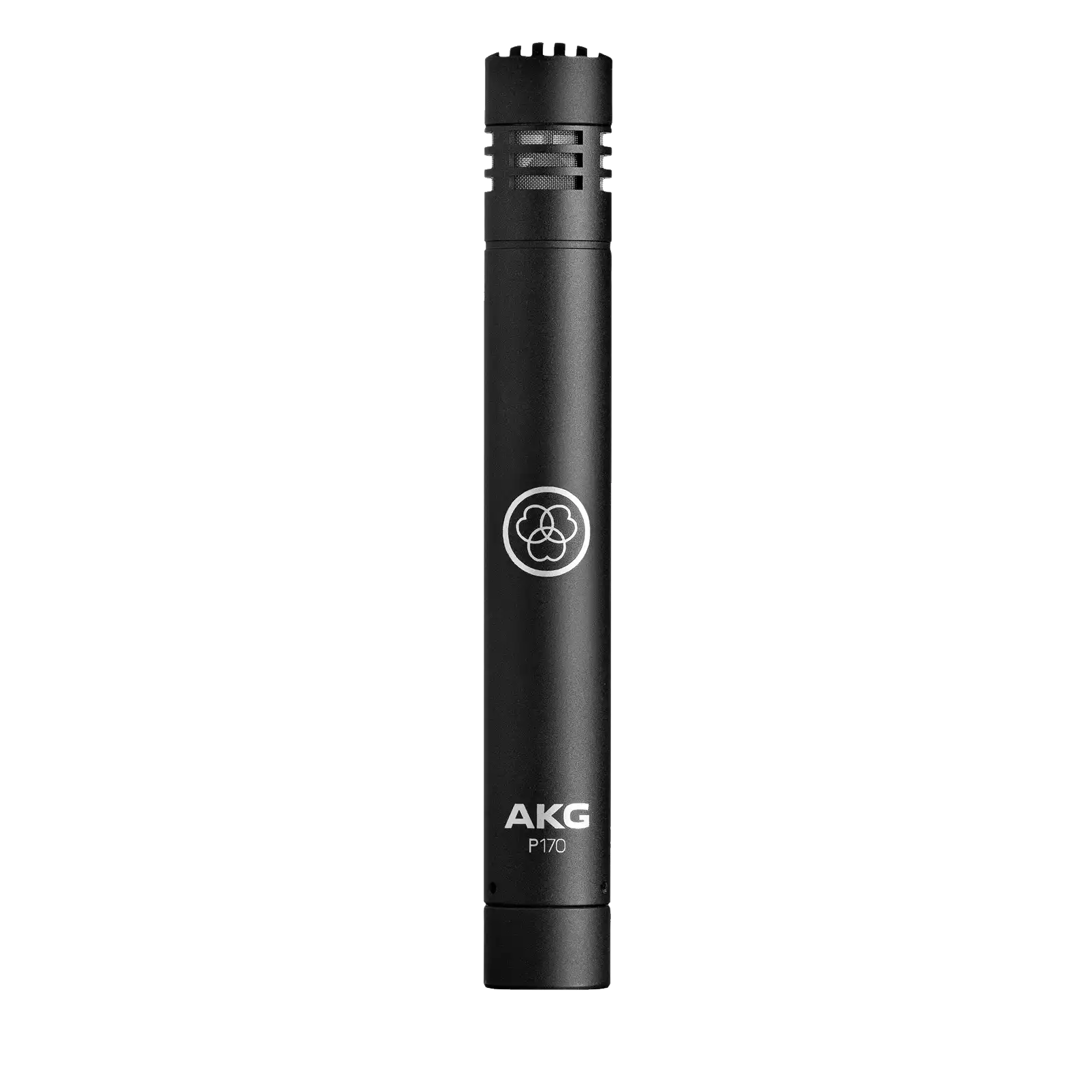

AKG P-170 Instrumental Microphone

Product Code: AKG 3101H00410

Key Features
  • Rugged all-metal body and robust design. Withstands tough day-to-day use.

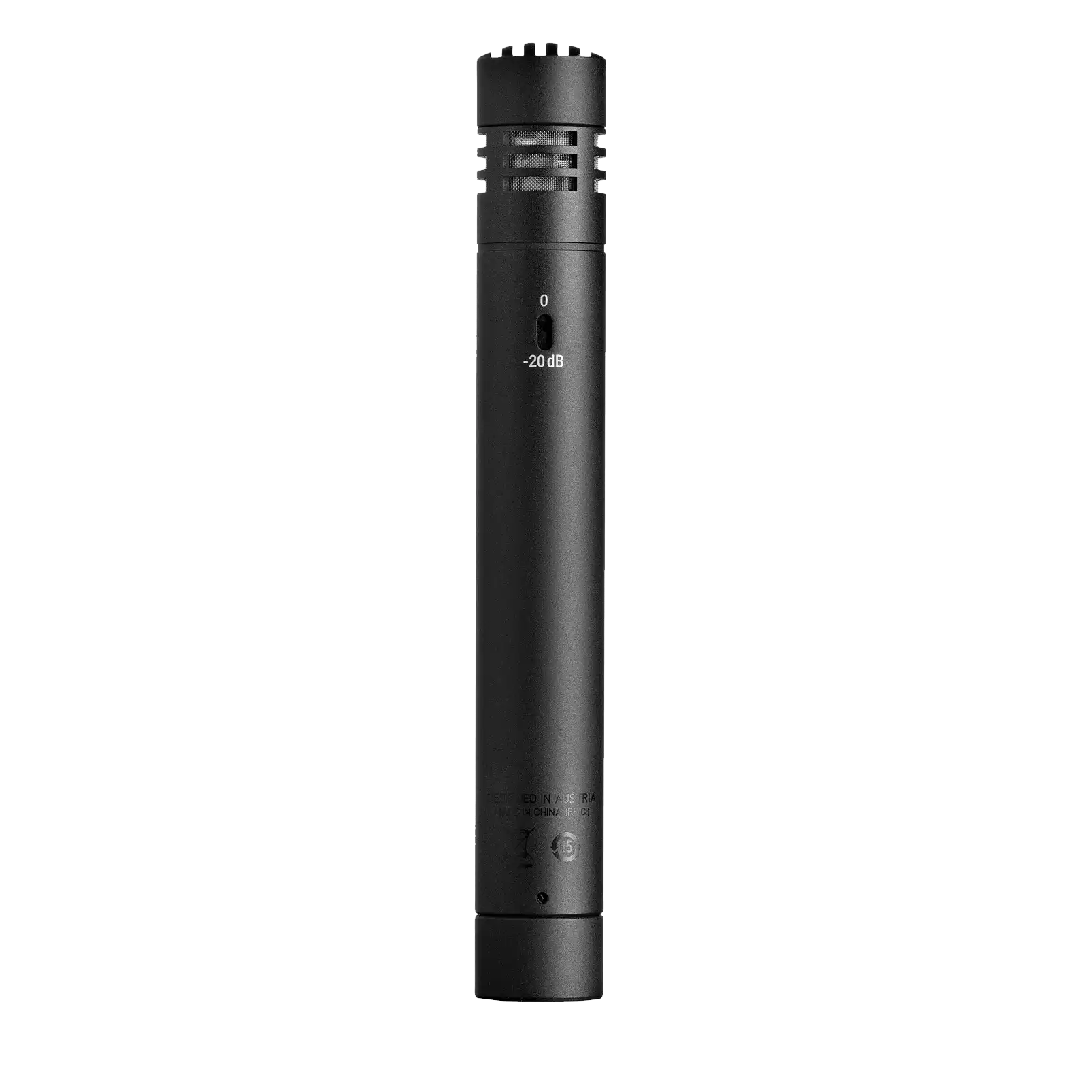

  • Switchable attenuation pad. For high SPL applications up to 150 dB SPL.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG P-170 Instrumental Microphone

At the point

The P170 is a small-diaphragm condenser microphone for recording of overheads, percussion, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response. The P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 19 dB-A
Sensitivity 15 mV/Pa
Signal to Noise 75 dB-A
Preattenuation Pad -20 dB
Bass cut filter 300 Hz - 6 dB/octave
Electrical impedance <= 200 Ohms
Recommended load impedance >= 1000 Ohms
Polar Pattern Cardioid

Application

Project Studio Yes
Live Instrument Yes

Dimensions

Height 160 mm
Diameter 22 mm
Net Weight 130 g

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 44 to 52 V
Current <= 3 mA

Instrument

Drums / Percussion Yes
Horns / Woodwinds Yes
Piano / Strings Yes

What's in the Box?

  • 1 x P170 Microphone
  • 1 x Stand Adapter
