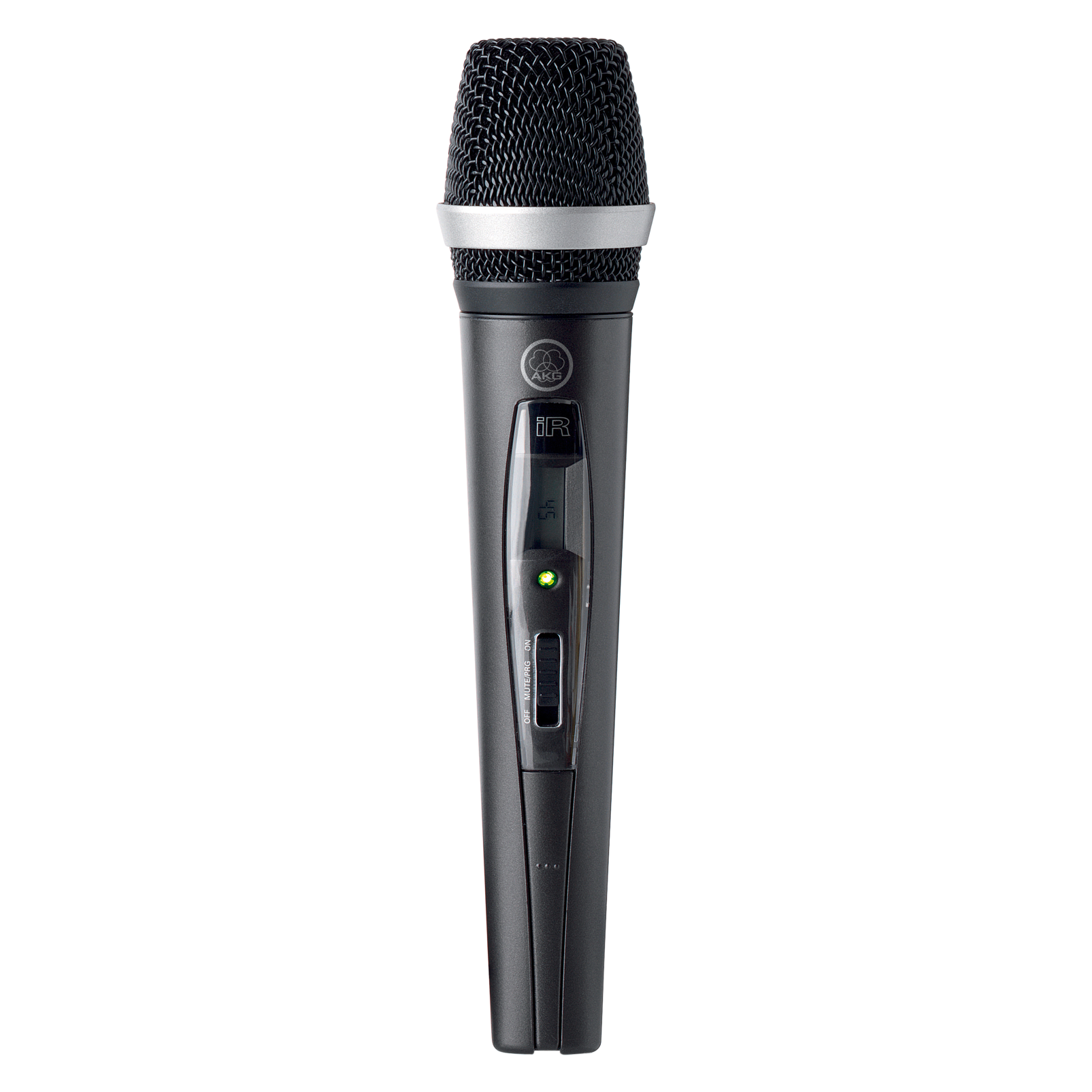

AKG HT470D5 Wireless Handheld Transmitter D5 Capsule

Product Code: AKG 3301X00010

Key Features
  • Pilot Tone transmission
  • For transmitter battery status monitoring and tone code squelch
  • Leading edge dipole-antenna design
  • Optimum performance even when the antenna is covered
  • Infrared synchronization
  • For instant transmitter setup
  • Up to 50mW transmission power
  • Maximum radio signal strength for long-distance applications
  • Integrated charging contacts
  • Quick charging of a standard NiMH battery inside the transmitter
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG HT470D5 Wireless Handheld Transmitter D5 Capsule

Flexible and expandable

The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise. It continuously sends transmitter data, including low-battery information, to the receiver. An infrared data link in conjunction with the automatic frequency setup makes the HT470 extremely simple to use. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand. An enhanced battery identification automatically detects the used battery type and allows up to 14 hours of operation on one AA-size battery. The display shows the remaining operating time in hours. Available in two versions - D5 and C5.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Audio frequency bandwidth 35 - 20000 Hz
Signal to Noise 120 dB-A
THD at 1 kHz 0.7 Prozent
Operating temperature range -10 to 55 Celsius
Peak deviation 48 kHz
Nominal deviation 20 kHz
Radio Output Power (min/max) 10 to 50 mW
Microphone head versions D5; C5
Switching bandwidth 30 MHz
Recommended simultaneous channels 24
Number of selectable frequencies 1220 (selectable in 25kHz steps)
Frequency Selection Selectable frequency in 25kHz steps
Radio range (Line of sight) 100m (depending on antenna system)
Modulation FM (Frequency Modulation)
Switchable RF power No
Pilot Tone Yes

Dimensions

Height 237 mm
Width 51 mm
Net Weight 240 g

Battery 2

Battery type HR 6 AA (NiHM) rechargeable
Number of batteries 1
Operating time 8 h

Battery 1

Battery type LR6 AA alkaline
Number of batteries 1
Operating time 7 h
