AKG HT-470C5 Wireless Handheld Transmitter C5 Cap Microphone

Product Code: AKG 3301X00210

Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

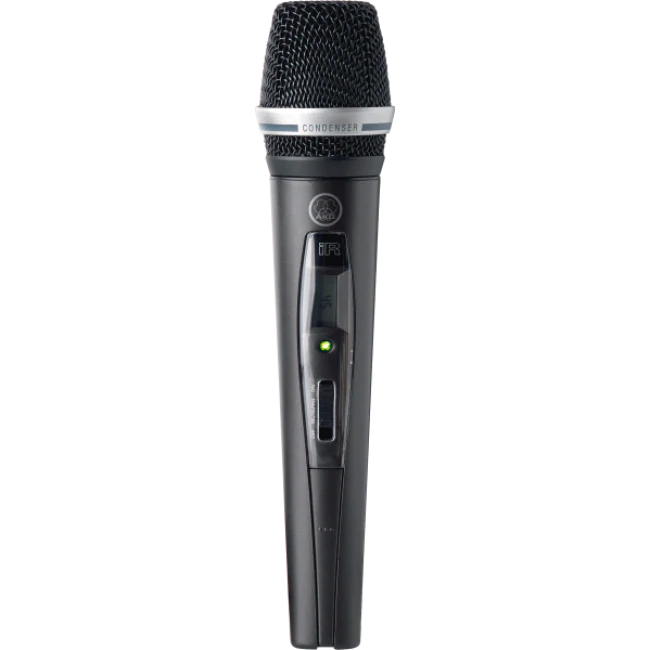

AKG HT-470C5 Wireless Handheld Transmitter C5 Cap Microphone

Flexible and Expandable

FOR CONFERENCE, MEDIUM THEATER AND HOUSES OF WORSHIP APPLICATIONS

The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise. It continuously sends transmitter data, including low-battery information, to the receiver. An infrared data link in conjunction with the automatic frequency setup makes the HT470 extremely simple to use. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand.

An enhanced battery identification automatically detects the used battery type and allows up to 14 hours of operation on one AA-size battery. The display shows the remaining operating time in hours.

Pilot Tone transmission
for transmitter battery status monitoring and tone code squelch

Leading edge dipole-antenna design
optimum performance even when the antenna is covered

Infrared synchronization
for instant transmitter setup

Up to 50mW transmission power
maximum radio signal strength for long-distance applications

Integrated charging contacts
quick charging of a standard NiMH battery inside the transmitter

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

AUDIO
Audio frequency bandwidth 35 to 20000 Hz
Signal to Noise 120 dB-A
THD at 1 kHz 0.7 Prozent
MISCELLANEOUS
Operating temperature range -10 to 55 Celsius
Peak deviation 48 kHz kHz
RADIO
Switching bandwidth 30 MHz
Recommended simultaneous channels 24
Number of selectable frequencies 1220 (selectable in 25kHz steps)
Frequency Selection Selectable frequency in 25kHz steps
Wireless channels within device -
Radio range (Line of sight) 100m (depending on antenna system)
Switchable RF power no
Modulation
Pilot Tone yes
TRANSMITTER
Nominal deviation 20 kHz kHz
Radio Output Power (min/max) 10 to 50 mW
Microphone head versions C5
Interchangeable Microphone Head no
BATTERY 1
Battery type LR6 AA alkaline battery
Operating time 7 h
BATTERY 2
Battery type HR 6 AA (NiHM) rechargeable battery
Operating time 8 h
BATTERY 3
Battery type FR 6 AA lithium battery
Operating time 14 h
DESIGN
Body Plastic
Finish black
DIMENSIONS / WEIGHT
Height 237 mm
Width 51 mm
Net Weight 240 g
