AKG HT-45A Handheld Wireless Transmitter

Product Code: AKG 3246H00010

Key Features

Analog High Performace Handheld Wireless Transmitter - For houses of worship, hotels, clubs and band applications.

Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

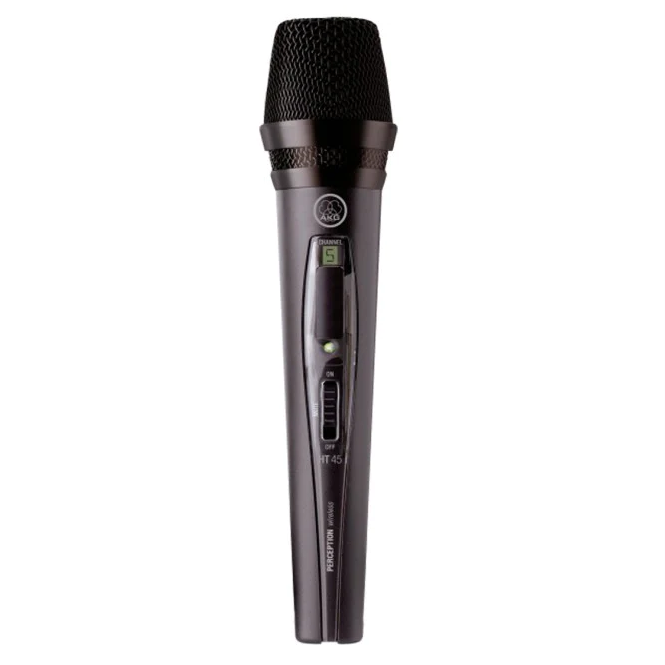

AKG HT-45A Handheld Wireless Transmitter

The HT45 analog high-performance wireless handheld transmitter features a dynamic microphone capsule for demanding vocal performances. The cardioid polar pattern ensures maximum gain before feedback and lets your voice cut through any mix. Its spring-steel wire-mesh front grille protects the transducer from the hardships of on-stage use.

The HT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery status indicator shows red before the battery goes dead, allowing the user to fully control his performance time.

Features:

Eight hours of operation from a single AA battery saves money in day-to-day use.

Gain control on transmitter for immediate volume adjustment.

Noiseless on/off/mute switch for easy operation.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

AUDIO

Audio frequency bandwidth 70 to 20000 Hz
Signal to Noise 105 dB-A
THD at 1 kHz 0.8 Prozent

MISCELLANEOUS

Operating temperature range -10 to 55 Celsius
Peak deviation 45 kHz

RADIO

Switching bandwidth 30 MHz
Recommended simultaneous channels 5
Number of selectable frequencies 8 Fixed frequencies
Frequency Selection Fixed frequency
Wireless channels within device -
Radio range (Line of sight) 30m
Switchable RF power no
Modulation FM
Encryption No encryption
Pilot Tone no

TRANSMITTER

Nominal deviation 15 kHz
Radio Output Power (min/max) 0 ... 0 mW
Microphone head versions P5
Interchangeable Microphone Head no
Transmitter Synchronization Manual

DESIGN

Body Plastic
Finish Black

DIMENSIONS / WEIGHT

Height 237 mm
Width 51 mm
Net Weight 214 g
