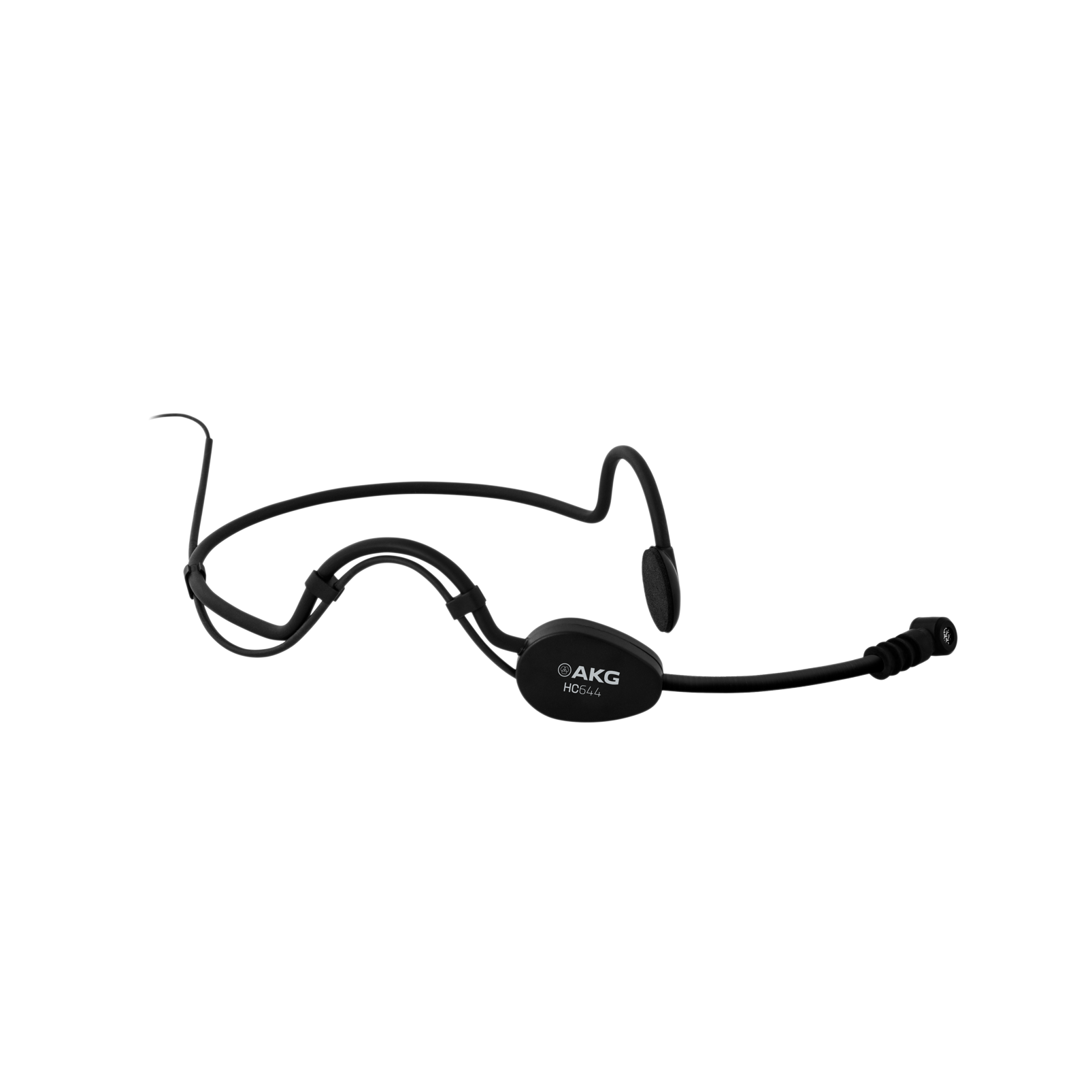

AKG HC644 MD Head worn microphone

Product Code: AKG 2793H00100

Key Features
Head-worn condenser microphone
$1,301.28 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Following up on the legendary performance of the C544 and C555, AKG has created the next generation of head-worn microphone, the new HC644 MD. This high-performance head-worn condenser microphone is the perfect tool for presenters in the corporate market but also ideal for sport applications like aerobics. More and more wireless systems in the low to mid-price range are based on 2.4 GHz technology causing nasty interference with microphones. The new HC644 MD is well protected against those problems. The main improvements of the new version are a smaller capsule design with a higher sensitivity, an exceptional RF shielding, a sweat-resistant design and the ability to fit to all major wireless systems on the market.

Features

Studio-quality sound

Flat frequency response for natural sound

High RF rejection

For safe performance even in RF sensitive environments

Highly moisture-resistant design

Reliable operation even in extensive use

Uniform polar pattern

Reduces feedback

Microdot adapter

Available adapters for most wireless systems

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Type Back-electret condenser
Polar Pattern Cardioid
Sensitivity (1m) 20 mV/Pa (9V/18kOhms)
Audio frequency bandwidth 100 - 15000 Hz ( /-3dB)
Electrical impedance 200 Ohms
Recommended load impedance 2000 Ohms
Equivalent noise level 34 dBA
Signal to Noise (1Pa) 60 dBA
Max. SPL for 1 % THD 135 dB
Temperature range -20°C to 60°C (14°F - 140°F)

Dimensions

Length 200 mm
Width 130 mm
Height 35 mm
Net Weight 30 g (including cable)

Audio Output

Connector 2-pin Microdot

Powering Interface

Operation voltage 9V (2V - 10V)
Recommended serial impedance 18kOhms (2kOhms - 18kOhms)
Current Consumption ≤ 500μA RL=2.2Kohms Vs=2.0VDC

Application

Sports / Fitness Yes
Assisted Listening Yes
Sound Reinforcement Yes
Presentation Yes
Retail Yes

Device

Headset Microphone Yes
