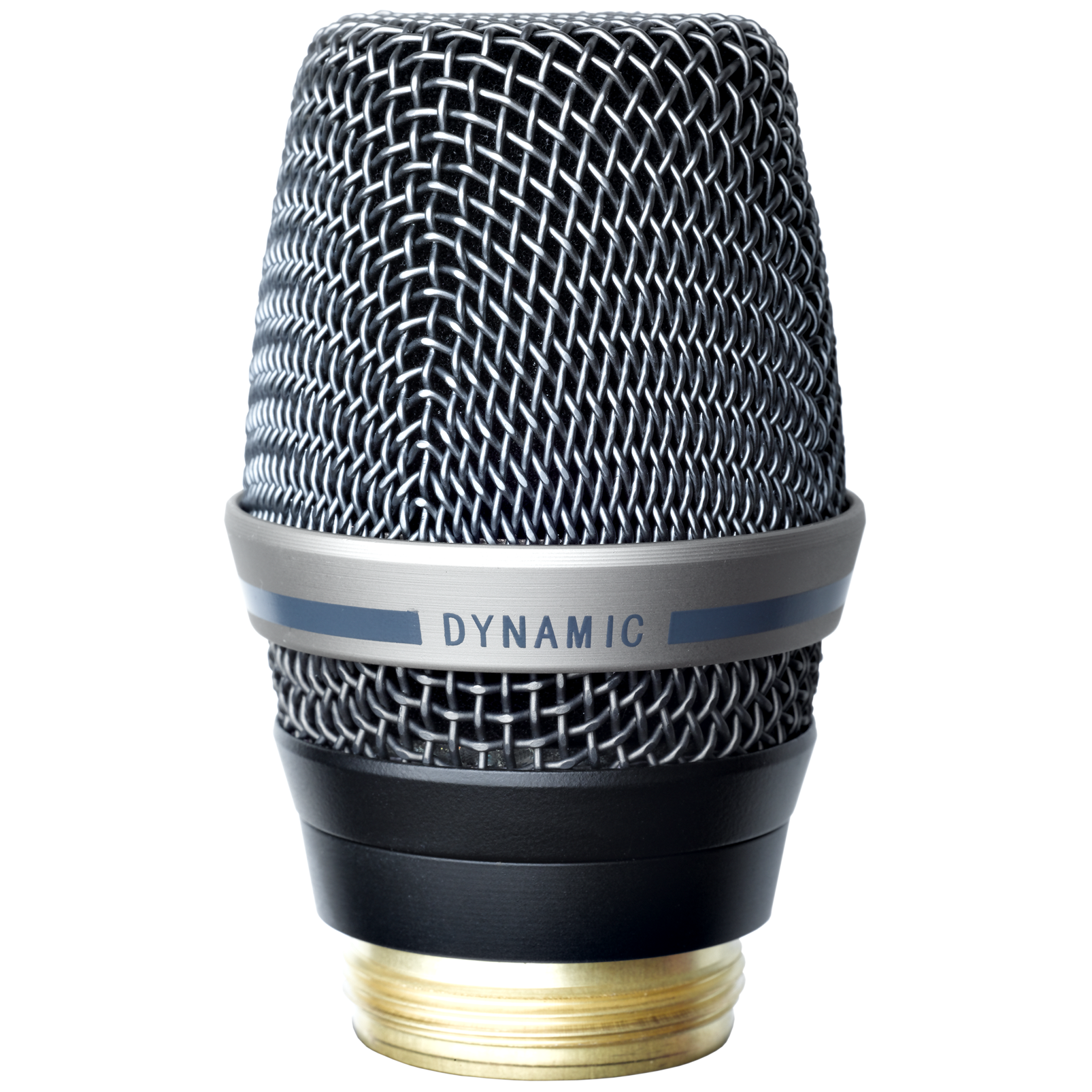

AKG D7WL1 Microphone Capsule For DHT800 and HT4500

Product Code: AKG 3082X00030

Key Features
  • Dual-thickness Varimotion diaphragm
  • Provides a subtle and open sound in all frequency ranges
  • Highest feedback suppression
  • Laminate diaphragm material damps critical resonance peaks
  • Integrated hum compensation coil
  • For utmost clean sound
  • Precision metal dust filter
  • Protects the capsule from sound-changing pollution
  • Self-cleaning contacts
  • Ensure reliable operation and long life
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG D7WL1 Microphone Capsule For DHT800 + HT4500

Wireless powersound

The D7 WL1 reference dynamic vocal microphone head creates the subtle and opened sound of a condenser capsule with the powerful resonance of a dynamic microphone. The patented dual layer Varimotion diaphragms can vibrate unhindered which results in an extraordinary crisp and clean sound. The unique laminated material damps high resonance peaks in the frequency response. In combination with the tight, supercardioid polar pattern enables the D7 s outstanding high gain before feedback.

The D7 WL1 features a precision metal dust filter that provides a consistent protection for the diaphragm, ensuring an extra long life. It is designed to fit the HT4500 and DHT800 handheld transmitters.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

AKG Wireless System Compatibility DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)
Type Dynamic
Polar Pattern Supercardioid
Capsule Patented dual-layer Varimotion diaphragm
Isolation Dual shock mount capsule and integrated humbucking coil
Grille Spring-steel wire-mesh
Frequency Response 70 - 20000 Hz w/ internal 80Hz high pass filter
Sensitivity 2.6 mV/Pa
Maximum SPL 147dB @ 1% / 156dB @ 3%
Equivalent Noise Level 18dB(A) to IEC 60268-4

Application

Live Instrument Yes
Live Vocal Yes
