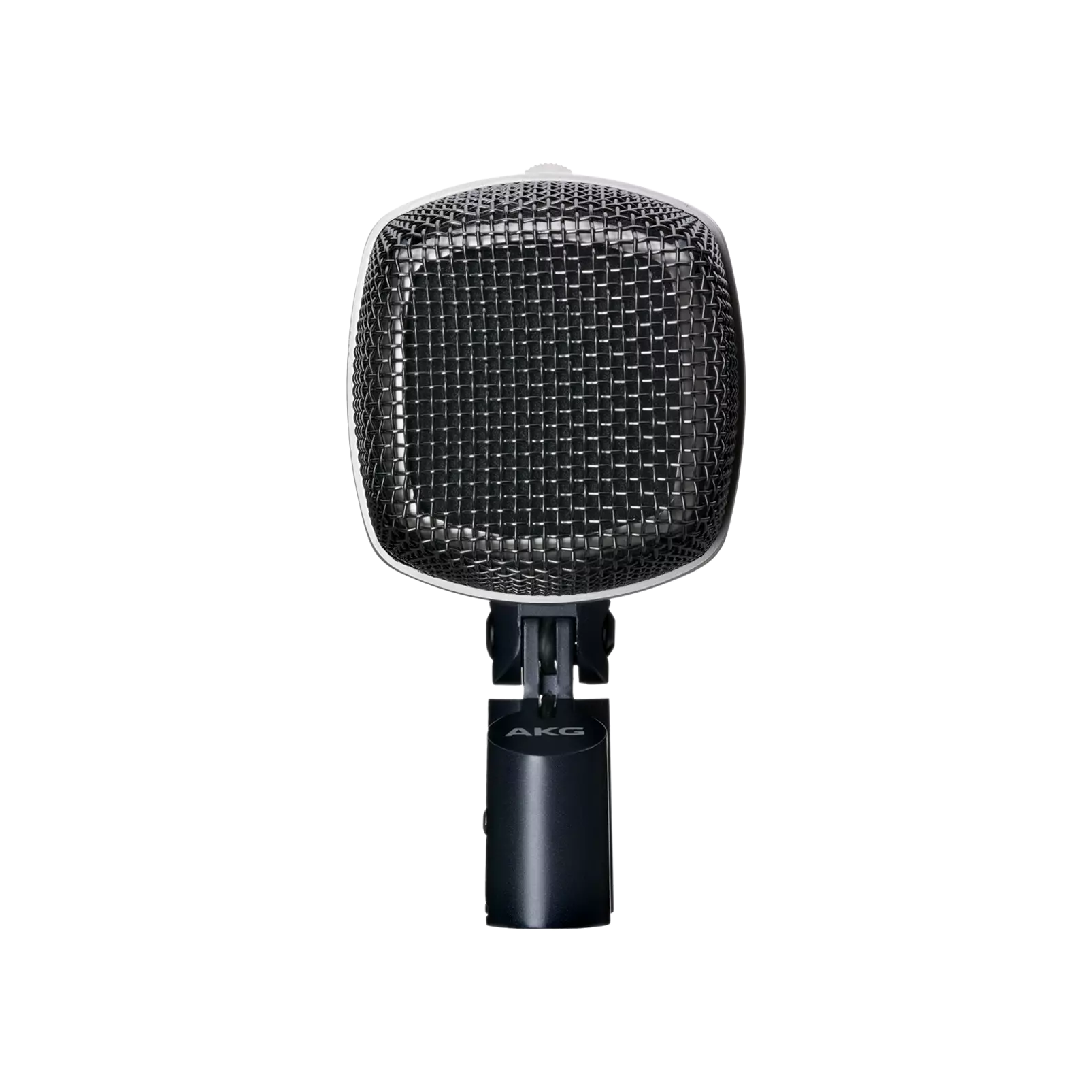

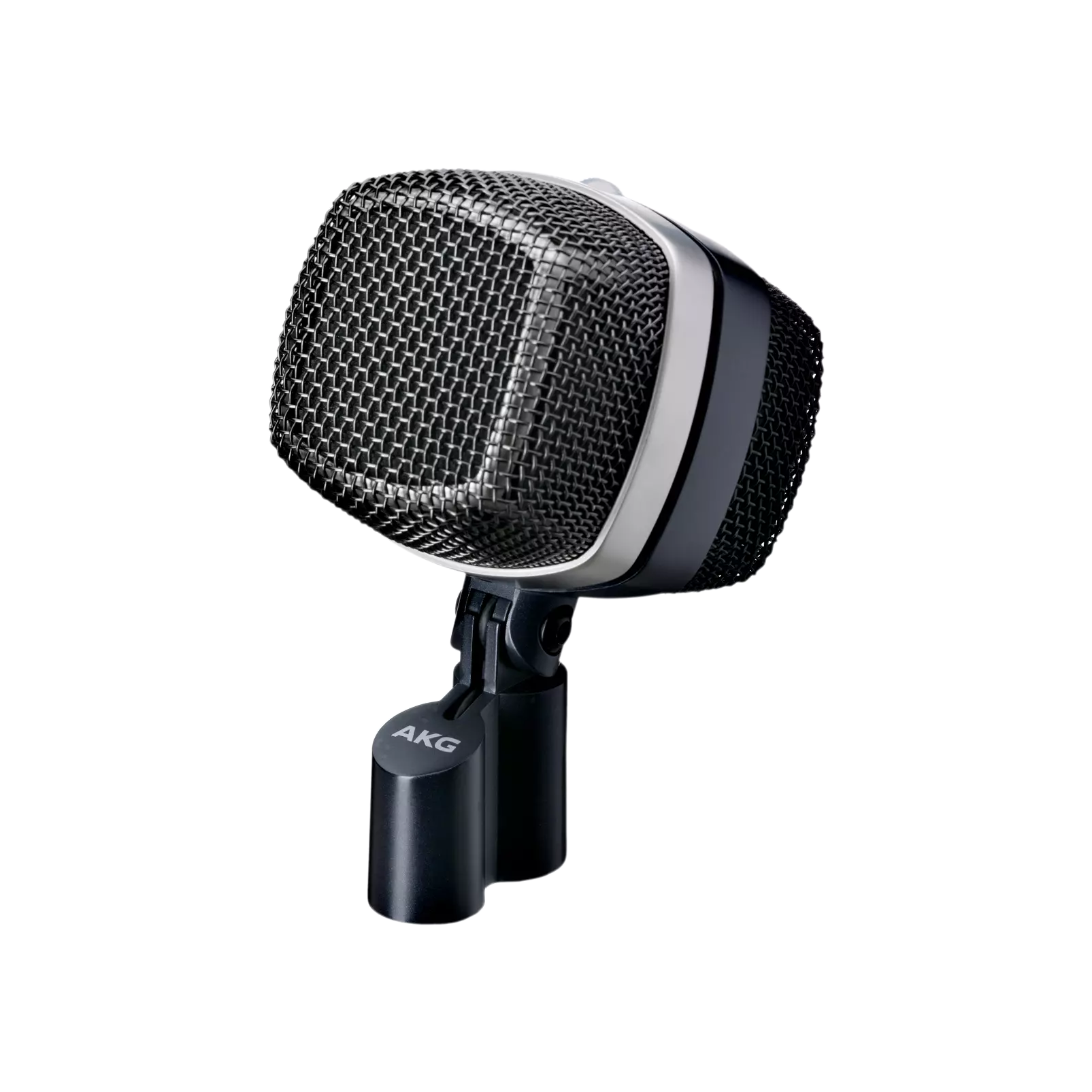

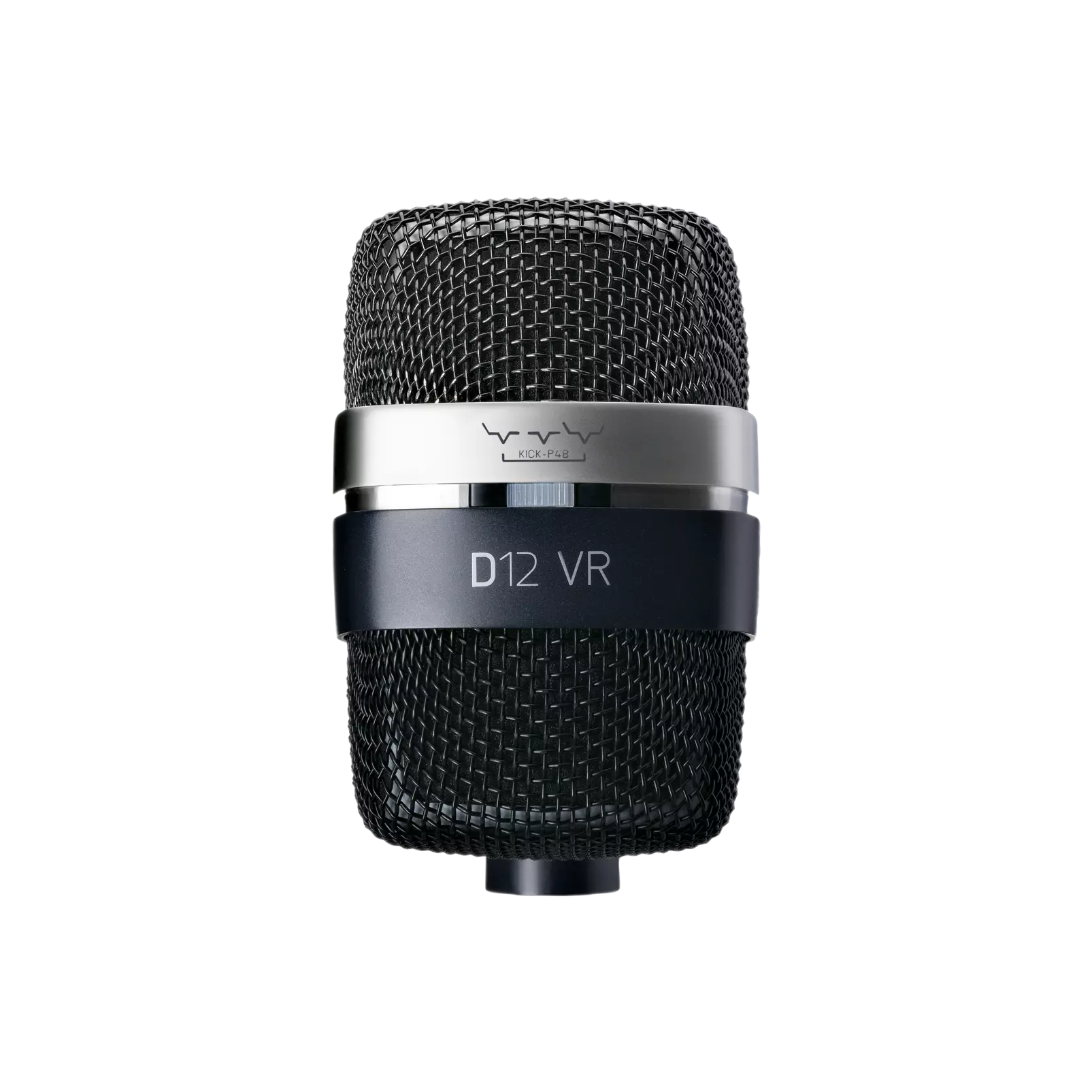

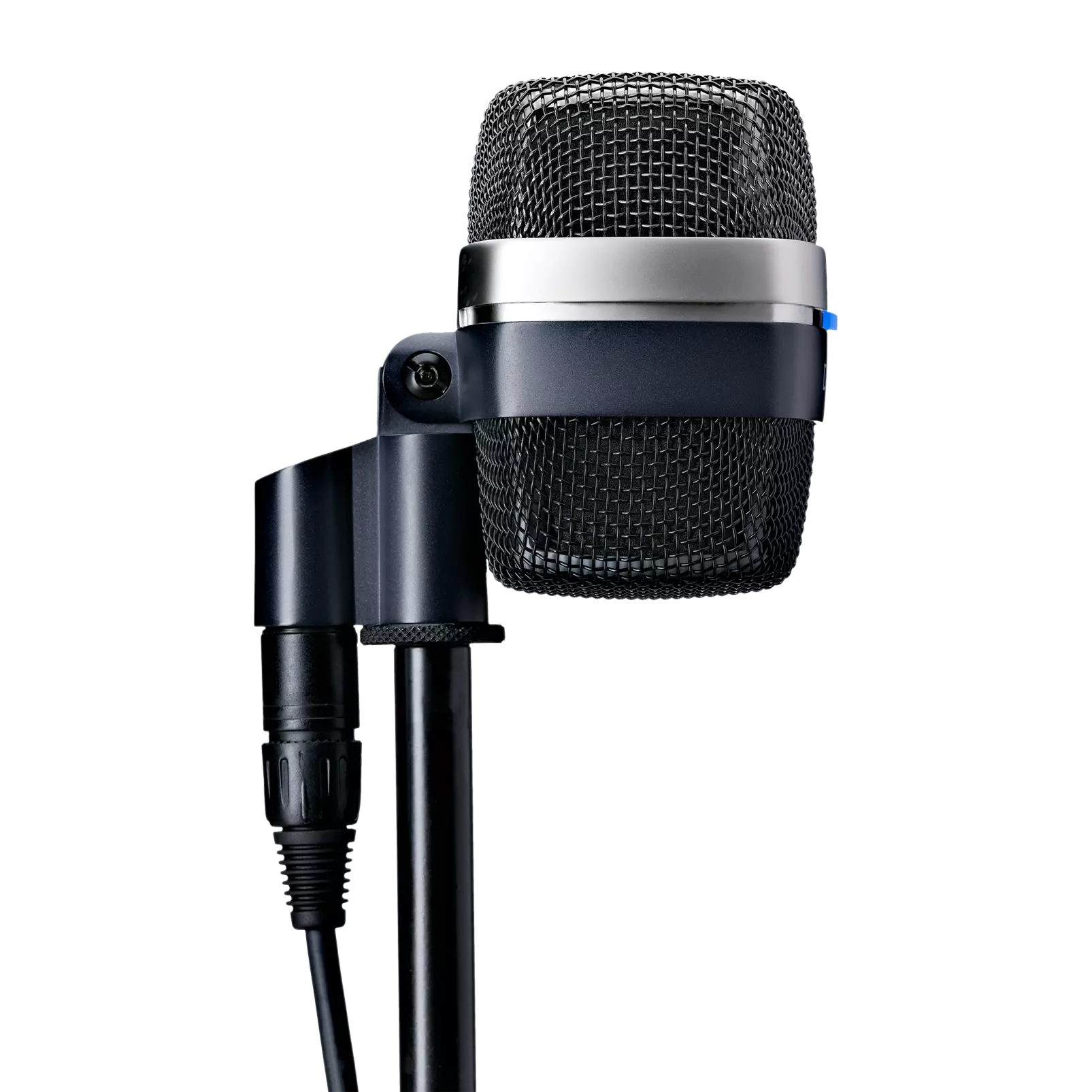

AKG D-12VR Large Diaphragm Dynamic Microphone

Product Code: AKG 3220H00010

Key Features
  • Ultra thin diaphragm. For accurate reproduction of the instruments sound.
  • Optimized bass chamber. For enhanced low frequency performance.
  • Patented switchable active-filter presets. To match the drums character.
  • Original C414 transformer. Delivers a warm sound especially at high signal levels.
  • Cardioid polar pattern. Rejects overspill from nearby instruments.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG D-12VR Large-Diaphragm Dynamic Microphone

Kick the hammer

Kick the hammer

The D12 VR is a reference large-diaphragm dynamic microphone with cardioid polar pattern. Designed specifically for kick-drum recording applications, the microphone has a thin diaphragm to enhance the low frequency performance. Its warm sound is realized by the original C414 transformer, especially impressive at high signal levels. The D12 VR features three active filter presets to match its sound shape with the kick drum s character. When activated, the output level is automatically reduced by 10 dB. The filter settings can be controlled using a switch on the microphone body. Without phantom power, the microphone operates in passive mode and delivers the instruments pure sound.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Polar Pattern 1.4 - 1.4 mA
Audio frequency bandwidth 1 - 1.5 h
Sensitivity for 2 HT4500, 2 PT4500, 2 SPR4500 or 2 BP4000
Electrical impedance 200 Ohms
Recommended load impedance 1000 Ohms
Maximum SPL for 0.5% THD 164dB SPL

Audio Output

Type Balanced XL
Gender Male
Contacts 3-pin

Dimensions

Length 101 mm
Width 66 mm
Height
125 mm
Diameter
66 mm
Net Weight
500 g

Design

Body metal
Finish galvanized nickel matte/black

Application

Pro Studio Yes
Live Instrument Yes

Instrument

Drums / Percussion

Yes

What's in the Box?

  • 1 x D12 VR Microphone
  • 1 x Microphone Bag
