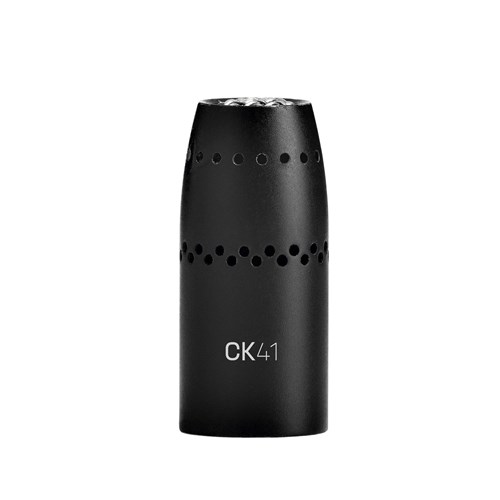

AKG CK41 Reference cardioid condenser microphone capsule

Product Code: AKG 3165H00010

Key Features
Cardioid Capsule with foam windscreen W40
$487.43 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

The CK41 is a reference condenser capsule with a wide cardioid polar pattern and a speech optimized frequency response. The cardioid is the most popular polar pattern, since it can be used almost universally. The 125° pickup angle is especially suited for inexperienced or very vivacious speakers as well as applications where more than one person uses the microphone in turn.

The CK41 capsule is integrated into an extremely slim and rugged metal housing. It fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK41 comes complete with a highly efficient windscreen.

Features

Cardioid polar pattern

Eliminates noise from the rear side

125° pickup angle

For inexperienced or very vivacious speakers

Sophisticated staple capsule technology

For studio-quality audio performance

Highly reliable capsule contacts

Prevent contact problems and ensure extra-long life

Highly efficient windscreen

Reduces wind and pop noise equally

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Polar Pattern Cardioid
Audio frequency bandwidth 60 - 20000 Hz
Sensitivity 5 mV/Pa
Maximum SPL for 3% THD 142 dB
Equivalent noise level 30 dB-A
Signal to Noise 64 dB-A

Dimensions

Height 20 mm
Diameter 9 mm
Net Weight 3.9 g

Audio Output

Type Modular Series Standard
