AKG CK-69 Two Reference Small Condenser Microphone Shotgun Capsules For C480B ULS

Product Code: AKG 2669H00010

Key Features

Reference small condenser microphone shotgun capsule - Just pure sound

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

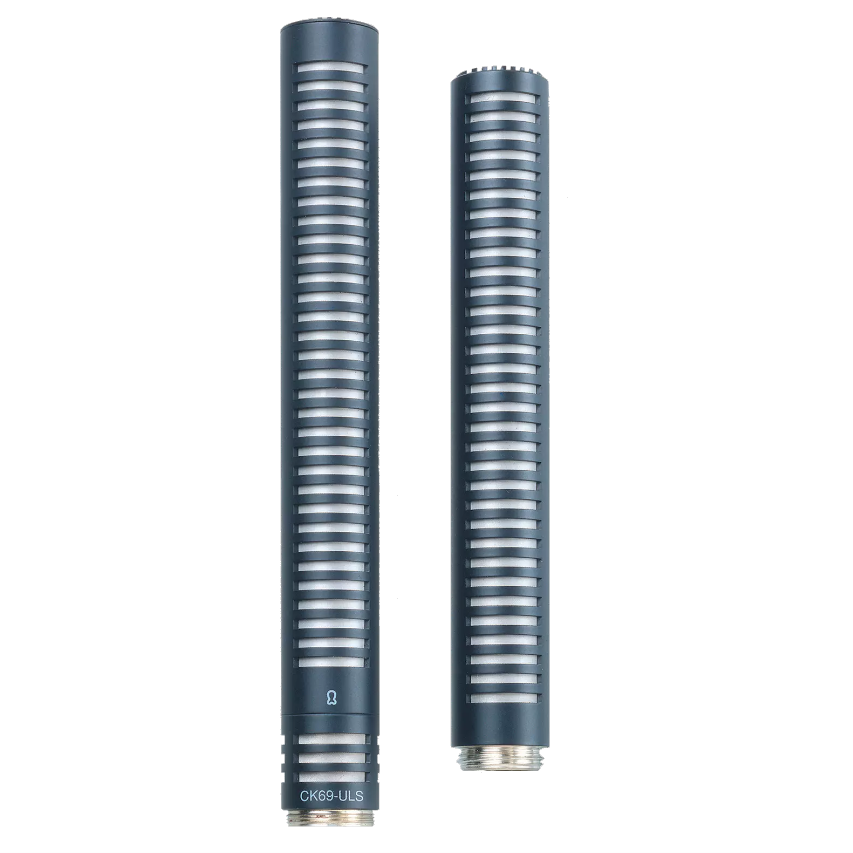

AKG CK-69 Two Reference Small Condenser Microphone Shotgun Capsules For C480B ULS

The CK69 ULS professional shotgun capsule delivers perfect results for film/TV outdoor applications or indoor front-of-stage recording. It has a unique two-shotgun-capsules-in-one-microphone design, which enables quick and easy conversion from long- to short-distance applications. It is also a perfect microphone for interviews in noisy environments.

The CK69 ULS works exclusively with the C480 B pre-amp. To ensure an extra-long life and a reliable connection, the capsule is equipped with large-area, self-cleaning, gold-plated contacts. An eye for detail paired with the highest manufacturing standards makes the Ultra Linear Series capsules the choice of knowledgeable technicians worldwide.

Features:

Sophisticated interference tube design Provides maximum noise attenuation.

Two shotgun lengths in one microphone For a selectable opening distance.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

General Specifications

Audio frequency bandwidth 20 - 18000 Hz
Equivalent noise level 9 dB-A
Sensitivity 27 mV/Pa
Signal to Noise 85 dB-A
Electrical impedance 150 Ohms
Recommended load impedance 2000 Ohms
Polar Pattern Hypercardioid

Powering Interface

Voltage 48 to 48 V
Current

Dimensions

Height 176/317 mm
Diameter 21 mm

Design

Finish matte black

Audio Output

Type Balanced XLR
Gender male
Contacts 3-pin
