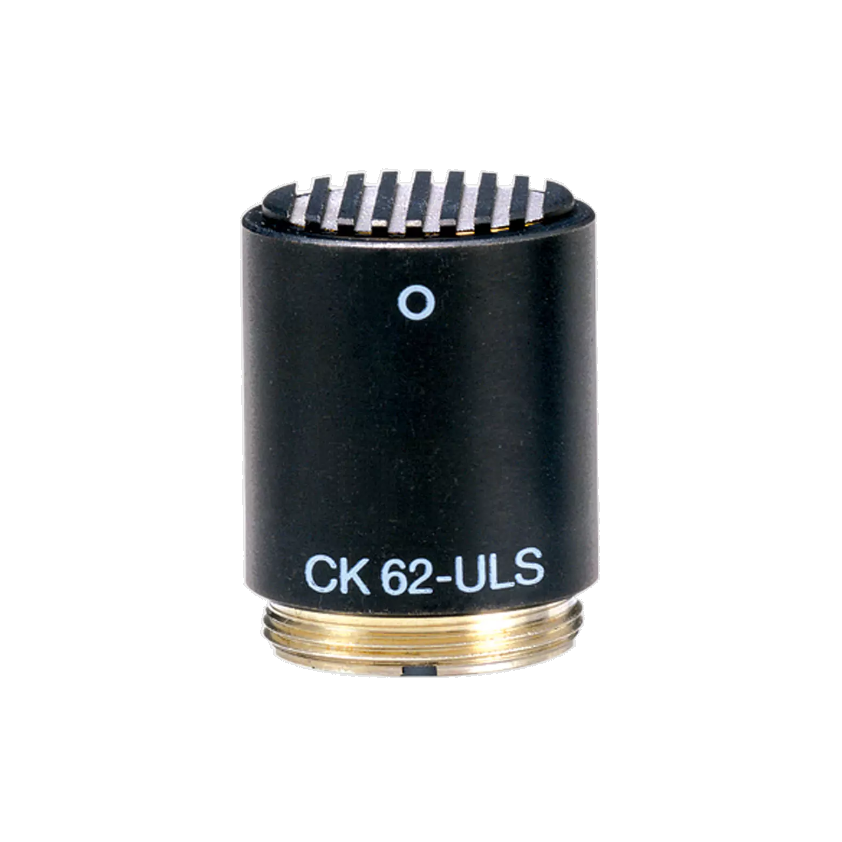

AKG CK-62 Reference Omnidirectional Condenser Microphone Capsule For C480B ULS

Product Code: AKG 2231H00220

Key Features

Reference omnidirectional condenser microphone capsule - Just pure sound

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG CK-62 Reference Omnidirectional Condenser Microphone Capsule For C480B ULS

The CK62 ULS professional small condenser capsule is characterized by a ruler-flat frequency response and an omnidirectional polar pattern. It is one of the most neutral small-diaphragm capsules ever, and a perfect choice for demanding applications such as classical-music recording. The CK62 ULS is widely used in recording studios, in opera houses and on theater stages around the world.

The CK62 ULS works exclusively with the C480 B pre-amp. To ensure an extra-long life and a reliable connection, the capsule is equipped with large-area, self-cleaning and gold-plated contacts. Careful attention to detail and the highest manufacturing standards make the Ultra Linear Series modular system the choice of experienced technicians worldwide.

Features:

Omnidirectional polar pattern For pure, pristine sound quality.

Self-cleaning contacts Ensure reliable operation and long life.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

General Specifications

Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 11 dB-A
Sensitivity 20 mV/Pa
Signal to Noise 83 dB-A
Electrical impedance 150 Ohms
Recommended load impedance 2000 Ohms
Polar Pattern Omnidirectional

Powering Interface

Voltage 48 to 48 V
Current

Dimensions

Height 27 mm
Diameter 21 mm

Design

Finish matte black

Audio Output

Type Balanced XLR
Gender male
Contacts 3-pin

What's In The Box

CK62 ULS Capsule 1
W32 Windscreen 1
