AKG CK-61 Reference Cardioid Condenser Microphone Capsule For C480B ULS

Product Code: AKG 2231H00210

Key Features

Reference cardioid condenser microphone capsule - Just pure sound

Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

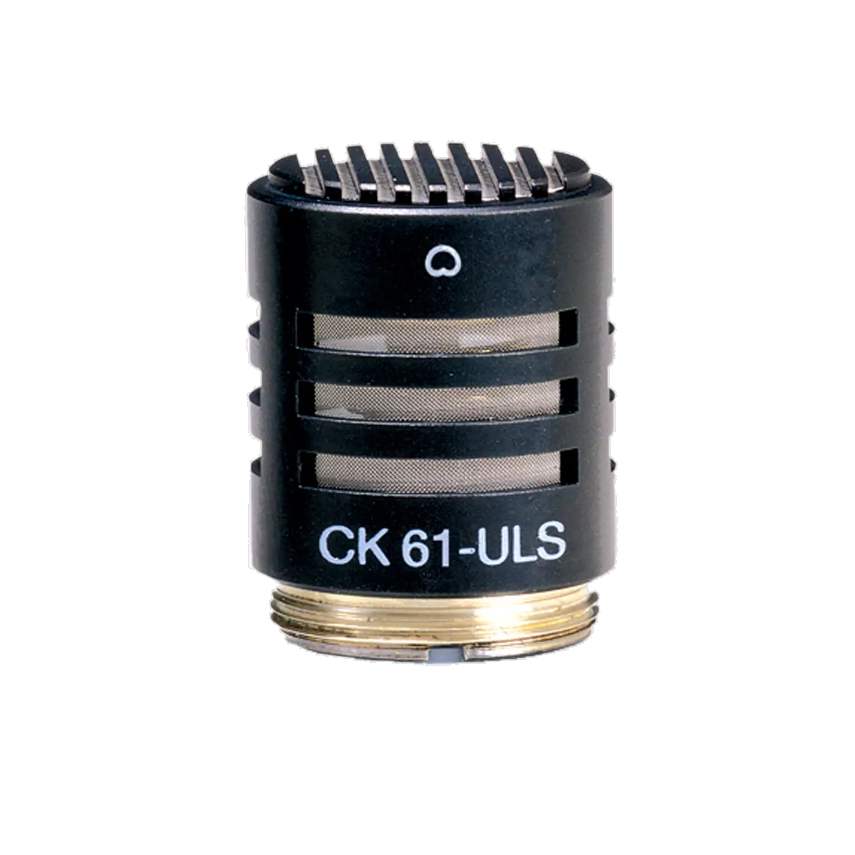

AKG CK-61 Reference Cardioid Condenser Microphone Capsule For C480B ULS

The CK61 ULS professional small condenser capsule is characterized by a ruler-flat frequency response and an unmatchable consistent cardioid polar pattern. It is the ideal choice for critical recording and live-sound applications where consistent suppression of off-axis sound is an important requirement. The CK61 ULS is widely used in broadcast and recording studios as well as on stages worldwide.

The CK61 ULS works exclusively with the C480 B pre-amp. To ensure an extra-long life and a reliable connection, the capsule is equipped with large-area, self-cleaning, gold-plated contacts. Careful attention to detail and highest manufacturing standards make the CK61 Ultra Linear Series capsule the choice of experienced technicians worldwide.

Features:

Cardioid polar pattern with excellent on-axis response For pure, pristine sound quality.

Self-cleaning contacts Ensure reliable operation and long life.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

General Specifications

Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 11 dB-A
Sensitivity 20 mV/Pa
Signal to Noise 81 dB-A
Electrical impedance 150 Ohms
Recommended load impedance 2000 Ohms
Polar Pattern Cardioid

Powering Interface

Voltage 48 to 48 V
Current

Dimensions

Height 27 mm
Diameter 21 mm

Design

Finish matte black

Audio Output

Type Balanced XLR
Gender male
Contacts 3-pin

What's In The Box

CK61 ULS Capsule 1
W32 Windscreen 1
