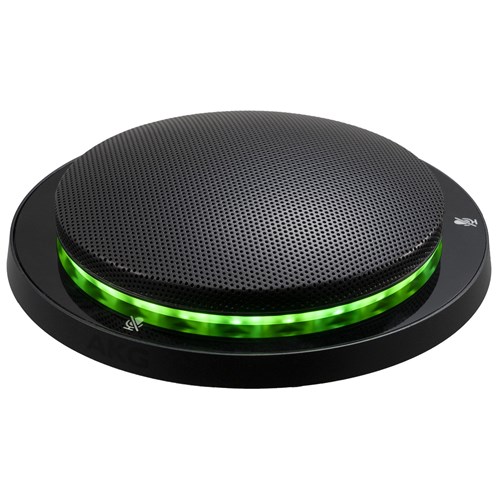

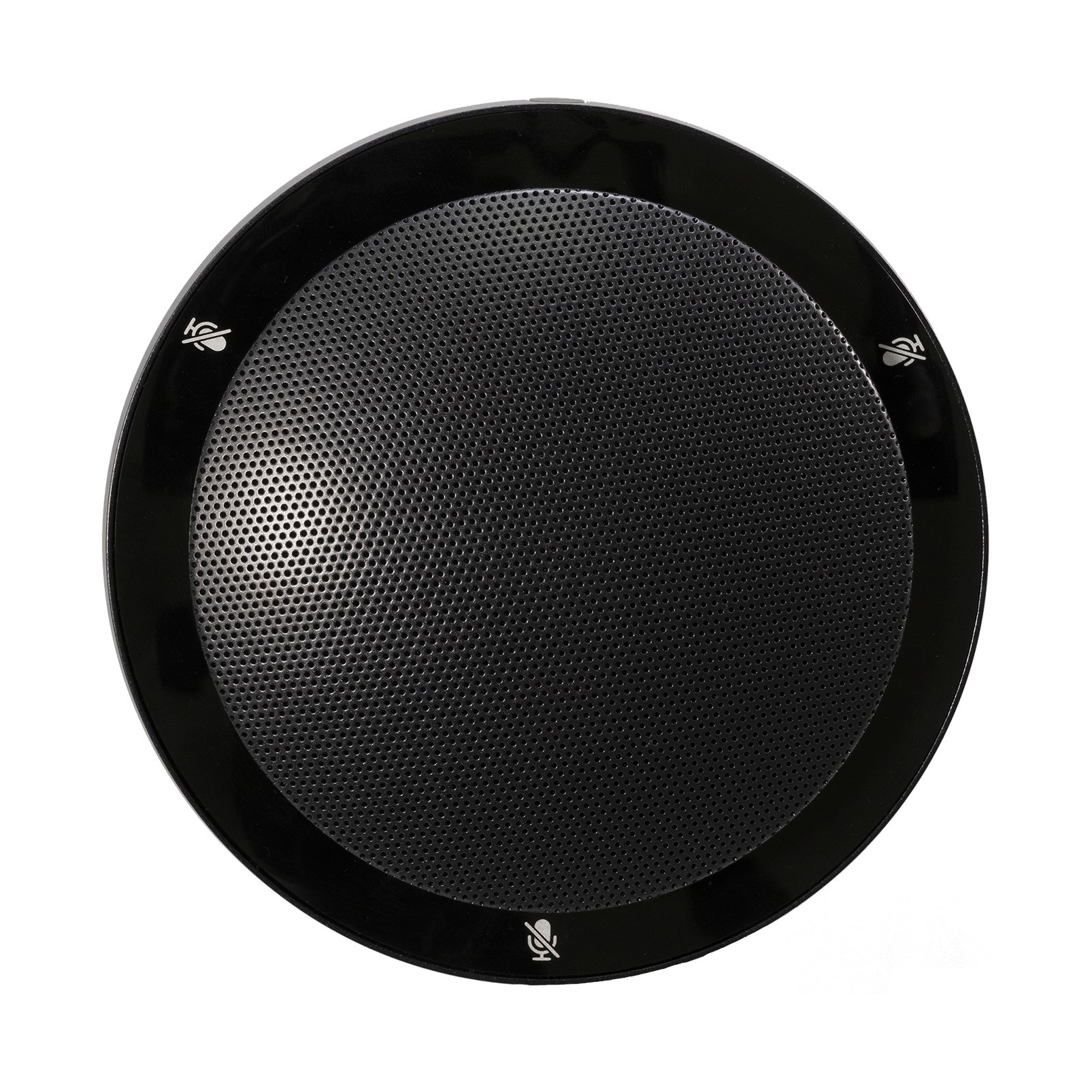

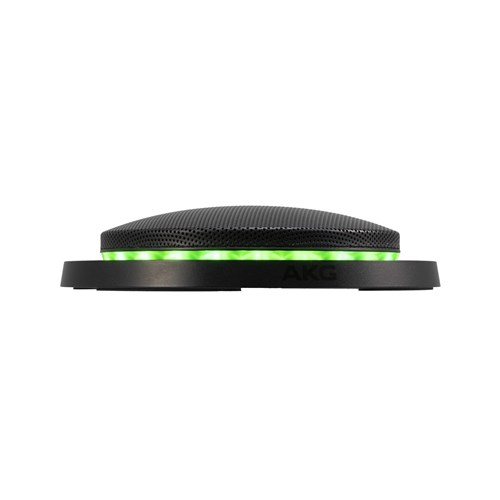

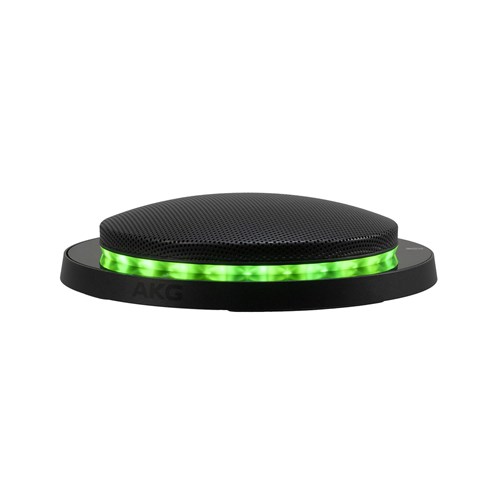

AKG CBL301 Triple element professional low profile boundary layer microphone

Product Code: AKG 5095183-00

Key Features
Triple element, professional low-profile boundary layer microphone
$1,977.36 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The CBL301 is easy to install with intuitive user controls. Leveraging AKG’s vast portfolio of innovation, the new CBL Series by AKG is a family of low-profile boundary layer microphones, available in multiple form factors and mic coverage patterns to accommodate critical applications including conference rooms and meeting spaces. Featuring intuitive user controls for talk/mute, elegant design aesthetics with LEDs, and screw terminals for mics and I/O, the CBL Series is easy to install, easy to use, easy on the eyes and makes meetings sound great.

Features

Low Profile

Minimally disrupts the table surface

Triple Element Cardioid Microphone

User-configurable from 270° to 360°

Screw Terminals

Greatly simplify installation

Mute Switch

Change talk and mute state by simply touching the mic

RGB LED Ring Indicators

Red, green, and blue LEDs provide clear visual cues to indicate current talk and mute state

RF Interference Suppression

Avoid interference from mobile phones and laptops

Elegant Design

Complements any room interior

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Description AKG CBL Series Professional Boundary Layer Microphones, Triple-Element
Model CBL301-B
Polar Pattern Cardioid
Minimum Current 400 µA
Maximum Current 600 µA
Typical Current 500 µA
Maximum SPL 120 dB
LED RGB ring LED to indicate mic status

Dimensions

Height 28.4mm (1.1”)
Width 128.5mm (5.1”)

Design

Finish Black

Powering Input

Input Max Voltage 24V ( 10%)
Input Min Voltage 3.3V (-10%)
Input Resistance 100 k?

Audio Output

Output Voltage 3.3V (±10%)
Output Max Current 500 µA (±10%)

Powering Interface

Min Supply Voltage 24V -10% (phantom power)
Max Supply Voltage 48V -10% (phantom power)
Output Impedance Maximum 200 ?

Application

Conferencing Yes

Device

Boundary Layer Microphone Yes
