AKG C747V11 Hypercardioid Shotgun Microphone

Product Code: AKG 2226H00110

Key Features
  • Enhanced, hypercardioid polar pattern
  • Eliminates noise from the sides
  • RFi shielding technology
  • Prevents interference noise from mobile phones
  • Withstands high sound pressure levels
  • For close-up miking of loud sources
  • Small and inconspicuous
  • For mobile and installed solutions
  • Extensive accessory set included
  • For a wide range of mounting possibilities
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG SLIM HYPERCARDIOID SHOTGUN MICROPHONE

A history of sound

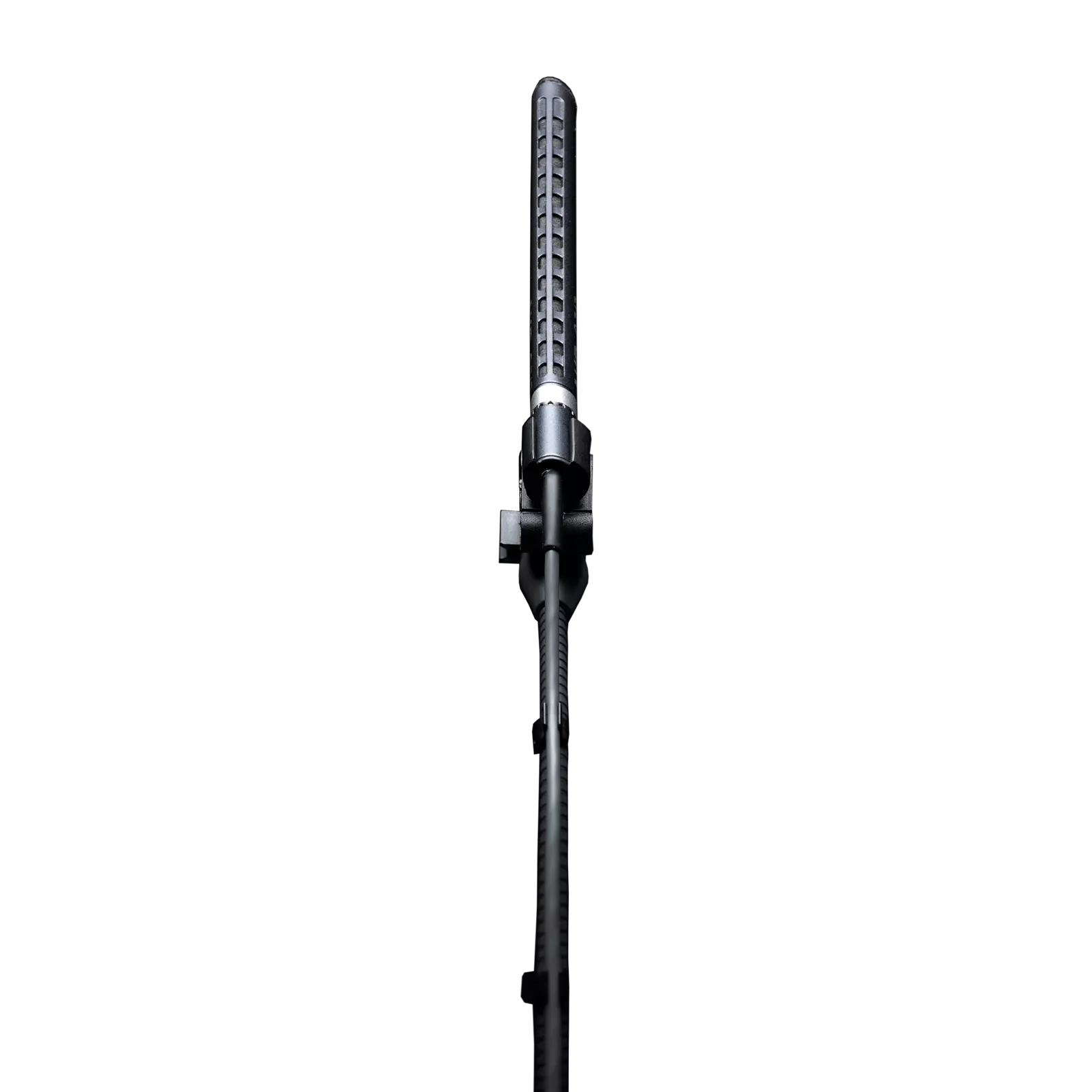

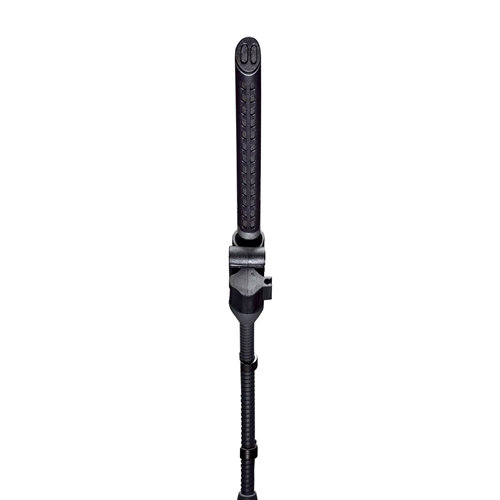

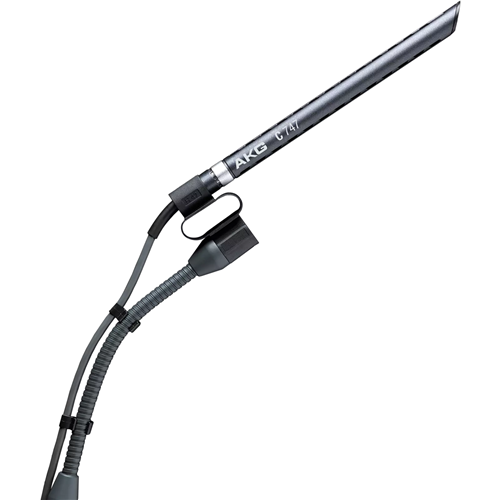

The C747 V11 is a professional shotgun condenser capsule with a flat frequency response and a clean off-axis response. Due to its brilliant sound reproduction, it is perfect for guitar, piano, drum and overhead recordings. Thanks to its inconspicuous appearance, it is also widely used as a speech and lectern microphone.

The C747 V11 features an integrated RFi shield to block out unwanted interference from mobile phones, wireless microphones and other wireless devices. The C747 V11 ships with an extensive accessory set including a shock mount adapter, mini-gooseneck, stand adapter, mounting clamp, thread link and windscreen.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio frequency bandwidth 30 - 18000 Hz
Equivalent noise level 32 dB-A
Sensitivity 8.5 mV/Pa
Signal to Noise 73 dB-A
Bass cut filter 150 Hz
Electrical impedance 400 Ohms
Recommended load impedance 1500 Ohms
Polar Pattern Hypercardioid

Dimensions

Diameter 9 mm
Net Weight 25 g

Design

Finish stage blue

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 9 to 52 V
Current 2 mA

Device

Shotgun Microphone Yes

Application

Pro Studio Yes
Presentation Yes

Instrument

Drums / Percussion Yes
Piano / Strings Yes
