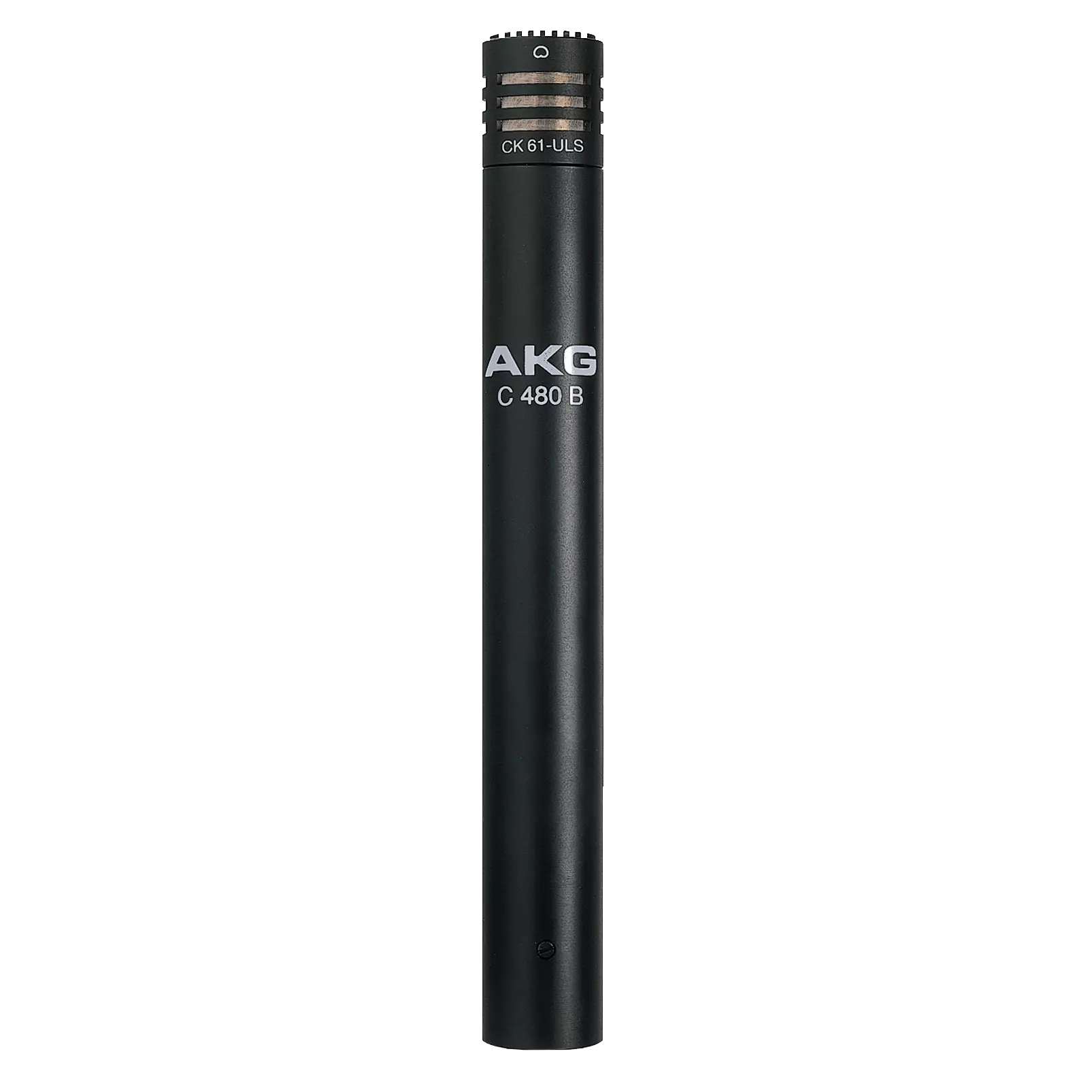

AKG C480BCOMBO Preamp plus CK61 Cardioid Capsule

Product Code: AKG 2200H00330

Key Features
  • Sophisticated microphone pre-amp design
  • For ultralow noise performance
  • Transformerless output
  • Provides extremely low distortion, highest reliability and less weight
  • Specifically designed output stage for difficult loads
  • Drives excessively long cables with no signal degradation
  • Cardioid polar pattern with excellent on-axis response
  • For pure, pristine sound quality
  • Self-cleaning contacts
  • Ensure reliable operation and long life
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG C480BCOMBO Preamp + CK61 Cardioid Capsule

Just pure sound

The C480 B Combo is a combination of C480 B pre-amp and the CK61 ULS capsule. It offers excellent audio quality and maximum flexibility. The electronic circuitry of the C480 B comes with a transformerless output stage and assures completely linear transfer characteristics across the entire frequency range, while achieving self-noise figures close to the theoretical minimum. The CK61 capsule is characterized by a ruler-flat frequency response and an unmatchable consistent cardioid polar pattern. It is the ideal choice for critical recording and live-sound applications where consistent suppression of off-axis sound is an important requirement. The CK61 ULS is widely used in broadcast and recording studios as well as on stages worldwide.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Polar Pattern Cardioid
Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 11 dB-A
Sensitivity 20 mV/Pa
Signal to Noise 83 dB-A
Preattenuation Pad 6 - 10 dB
Bass cut filter 100 Hz
Electrical Impedance 150 Ohms
Recommended load impedance 2000 Ohms

Dimensions

Height 171 mm
Diameter 21 mm

Design

Finish matte black

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 48 to 48 V
Current 2 mA
