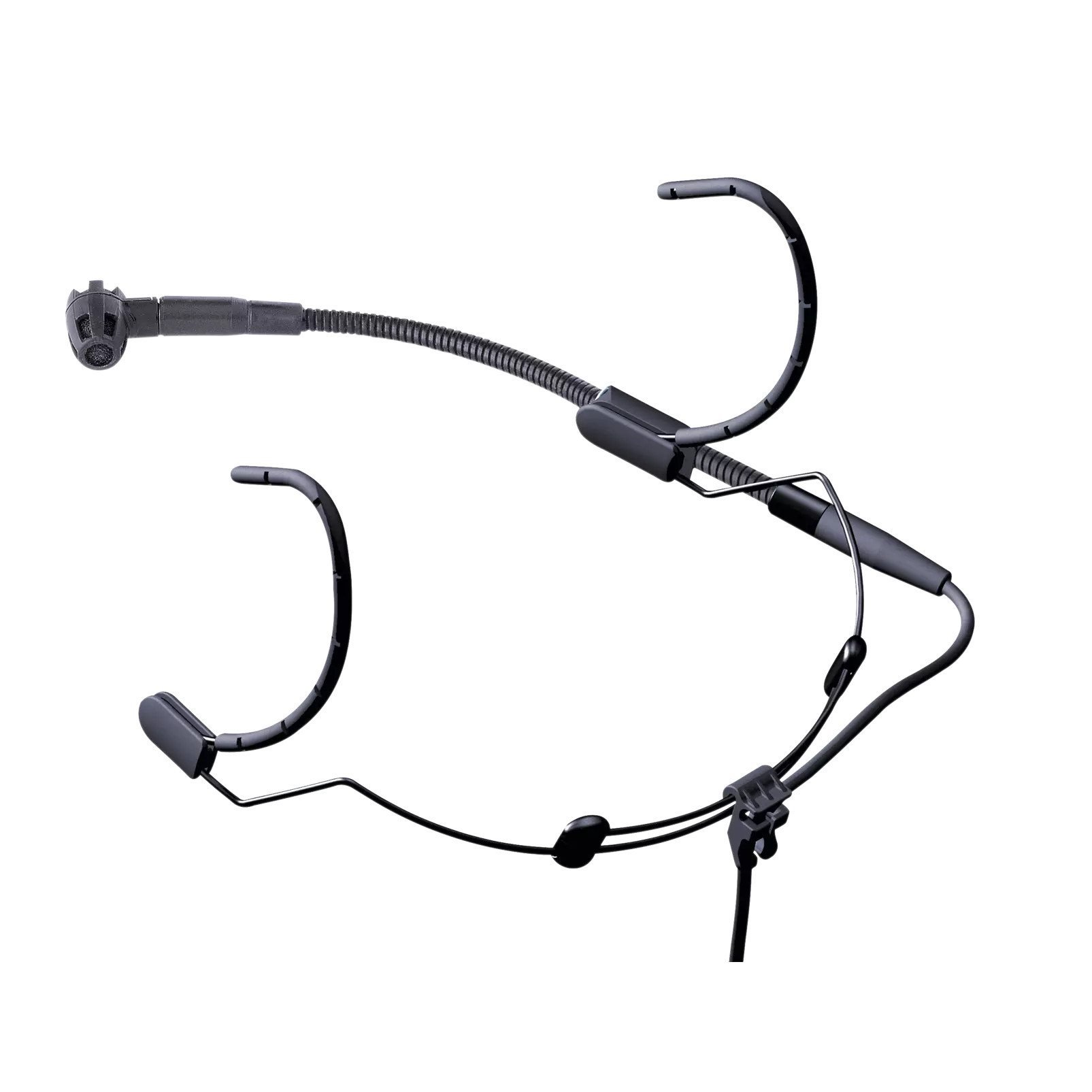

AKG C-520 Cardioid Condenser Vocal Microphone

Product Code: AKG 3066X00010

Key Features
  • Lightwight and adjustable headband construction. For maximum comfort and freedom of movement.
  • Left and right flxible boom mounting.  For precise positioning to the sound source.
  • Condenser capsule on flexible shock mount.  For efficiant rejection of mechanical, ambient and body noise.
  • Moisture shield.  Ensuring a dry microphone capsule.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG C-520 Cardioid Condenser Vocal Microphone

Free your vocals

The C520 professional head-worn condenser microphone with maximum dynamic range for perfect vocal sound. An ideal choice for frontmen, singing keyboardists, drummers, guitarists and dancing performers needing a hands-free microphone. The moisture shield prevents perspiration from penetrating into the transducer element, ensuring a high degree of humidity protection for the microphone.

The C520 provides a transducer shock mount to reduce body noise to a minimum. Its cardioid polar pattern effectively rejects unwanted ambient noise. The microphone arm mounts on either the left or the right side of the headband.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio frequency bandwidth 60 - 20000 Hz
Equivalent noise level 31 dB-A
Sensitivity 5 mV/Pa
Signal to Noise 63 dB-A
Electrical impedance 200 Ohms
Recommended load impedance 2000 Ohms
Polar Pattern Cardioid

Audio Output

Type Mini XLR
Gender Female
Contacts 3-pin

Powering Interface

Voltage
9 to 52 V
Current 2 mA

Application

Live Vocal Yes
Sports / Fitness Yes

Instrument

Vocals Yes

Dimensions

Length 195 mm
Height 195 mm
Net Weight 26 g
Cable length 3 m (10 ft.)

Device

Headset Microphone Yes

Design

Finish matte black

What's in the box?

  • 1 x C520 Head-Worn Microphone with standard XLR connector
  • 1 x W44 Windscreen
