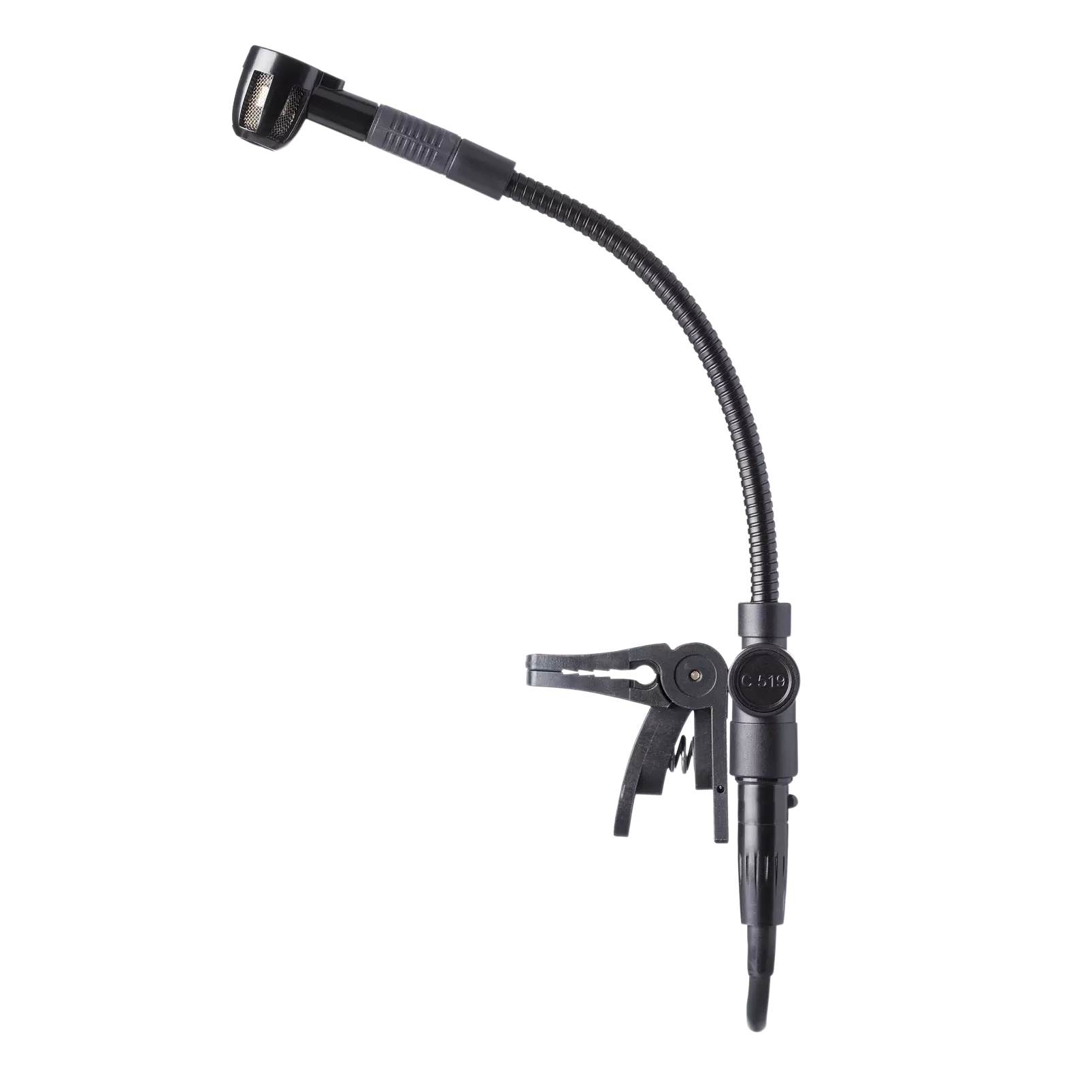

AKG C-519ML Miniature Clip On Condenser Microphone

Product Code: AKG 3065X00020

Key Features
  • Cardioid polar pattern. Allows operation close to stage monitors.
  • Rugged, high stable gooseneck. For precise placement of the microphone.
  • Detachable microphone cable.  Easy to install and service.
  • Integrated transducer shock mount. For efficient rejection of mechanical noise.
  • Rubberized mounting clip.  To firm, gentle fit of a wide variety of instruments.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

AKG C-519ML Miniature Clip On Condenser Microphone

Horn section liberation

The C519 professional miniature condenser microphone clips gently onto the bell of a trumpet, saxophone, trombone, tuba, didgeridoo or any other wind instrument. Its tight cardioid polar pattern makes the C519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful and clear sound.

The MPAV from C519 M features an integrated, switchable bass cut for adjusting the microphones frequency response. The C519 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio frequency bandwidth 60 - 20000 Hz
Equivalent noise level 31 dB-A
Sensitivity 5 mV/Pa
Signal to Noise 63 dB-A
Electrical impedance 200 Ohms
Recommended load impedance 2000 Ohms
Polar Pattern Cardioid

Audio Output

Type Mini XLR
Gender Female
Contacts 3-pin

Powering Interface

Voltage
9 to 52 V
Current 2 mA

Application

Project Studio Yes
Live Instrument Yes

Instrument

Horns / Woodwinds Yes

Dimensions

Width 47 mm
Height 213 mm
Net Weight 195 g

Design

Body metal
Finish matte black

What's in the box?

  • 1 x C519 Microphone
  • 1 x W44 Windscreen
  • 1 x Microphone Bag
  • 1 x Mini XLR to Mini XLR Cable (1.5 m/5 ft.)
  • 1 x A400 Adapter Plate
