AKG C-480B ULS Reference Modular Microphone PreAmp

Product Code: AKG 2180H00150

Key Features

Reference Modular Microphone Pre-Amp - Just pure sound

Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

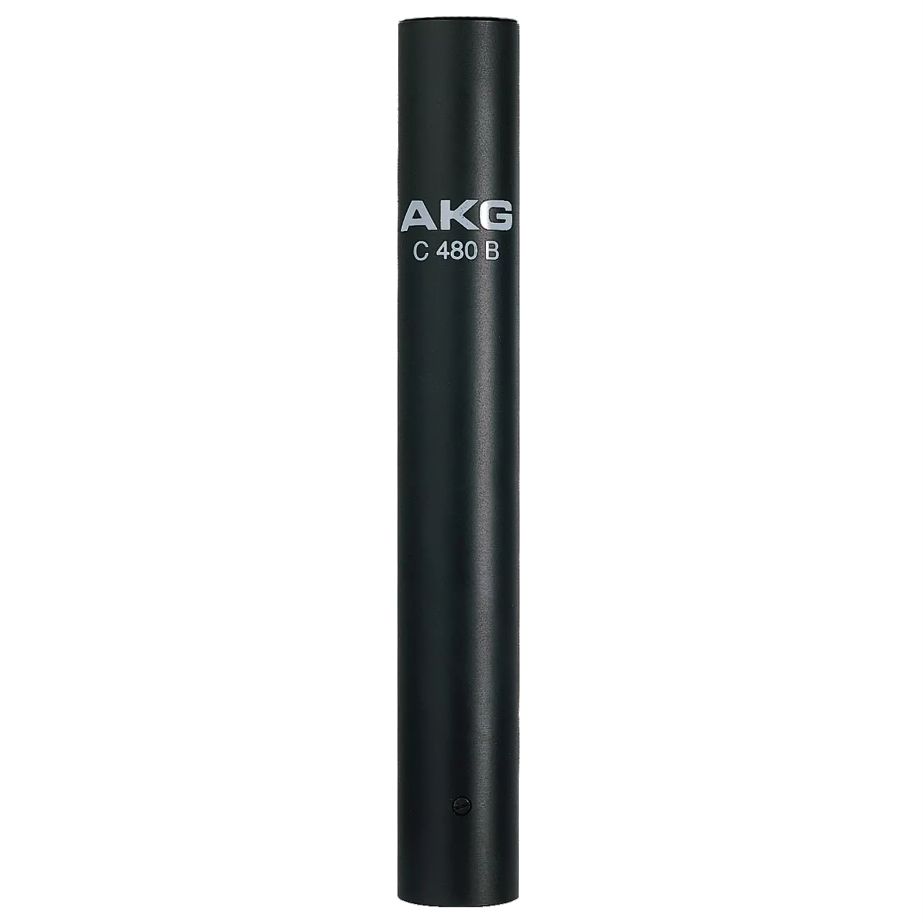

AKG C-480B ULS Reference Modular Microphone Pre-Amp

Just pure sound

The C480 B is the pre-amp for the ultralinear series capsules, CK61, CK62, CK63, and CK69 ULS, and represents one of the quietest microphone amps ever built. The C480 B offers excellent audio quality and maximum flexibility. Its electronic circuitry coupled with a transformerless output stage assures completely linear transfer characteristics across the entire frequency range, while achieving self-noise figures close to the theoretical minimum.

A specially designed output stage drives difficult loads like excessively long cables without harming the signal quality. The C480 B offers a two-step high-pass filter and two gain stages of either -10dB or +6dB.

Features:

Sophisticated microphone pre-amp design For ultralow noise performance.

Transformerless output Provides extremely low distortion, highest reliability and less weight.

Switchable attenuation pad Enables high SPL applications up to 144dB.

Switchable bass-cut filter Eliminates rumble or footfall noise.

Specifically designed output stage for difficult loads Drives excessively long cables with no signal degradation.



Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.

General Specifications

Polar Pattern Cardioid
Audio frequency bandwidth 20 - 20000 Hz
Preattenuation Pad 6; -10 dB
Bass cut filter 100 Hz
Recommended load impedance 2000 Ohms

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Dimensions

Height 173 mm
Diameter 21 mm

Design

Finish matte black

Powering Interface

Voltage 48 V
Current 2 mA

What's In The Box

C480 B Pre-Amp 1
SA60 Stand Adaptor 1
