AKG C-414XLS Multipattern Condenser Microphone

Product Code: AKG 3059X00050

Key Features
  • Engineered for highest linearity and neutral sound.  For beutifully detailed recording of vocals and any acoustic instrument.
  • Mome selectable polar patterns.  For the perfect setting for every application.
  • Three attenuation levels (-6, -12, -18dB).  For close-up recording or high-output sources of up to 158dB SPL.
  • Three different switchable bass-cut filters. To reduce wind noise, subsonic noise or proximity effect.
  • Overload warning with audio peak hold LED.  To detect shortest audio peaks.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

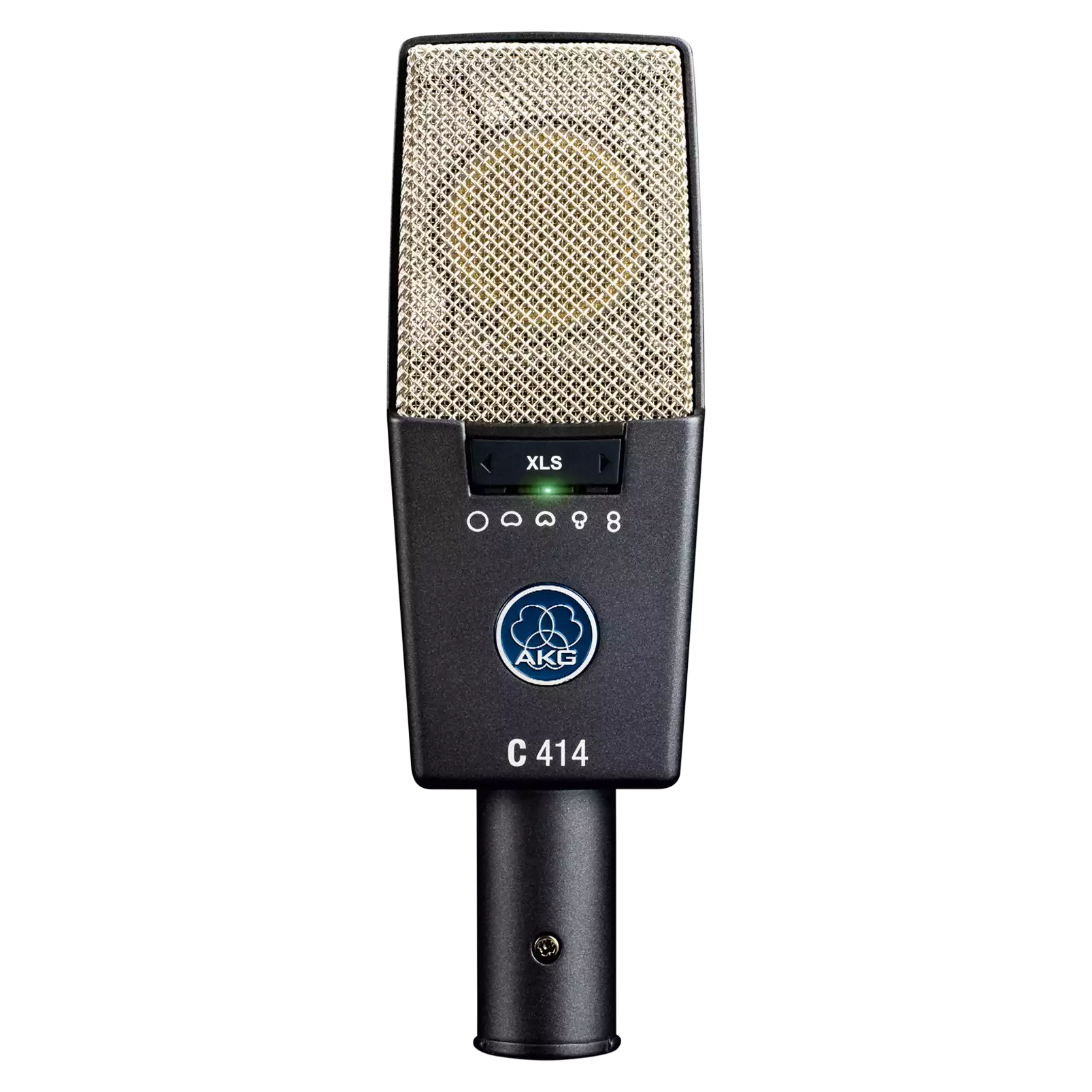

AKG C-414XLS Multipattern Condenser Microphone

A legend since 1971

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 6 dB-A
Sensitivity 23 mV/Pa
Signal to Noise 88 dB-A

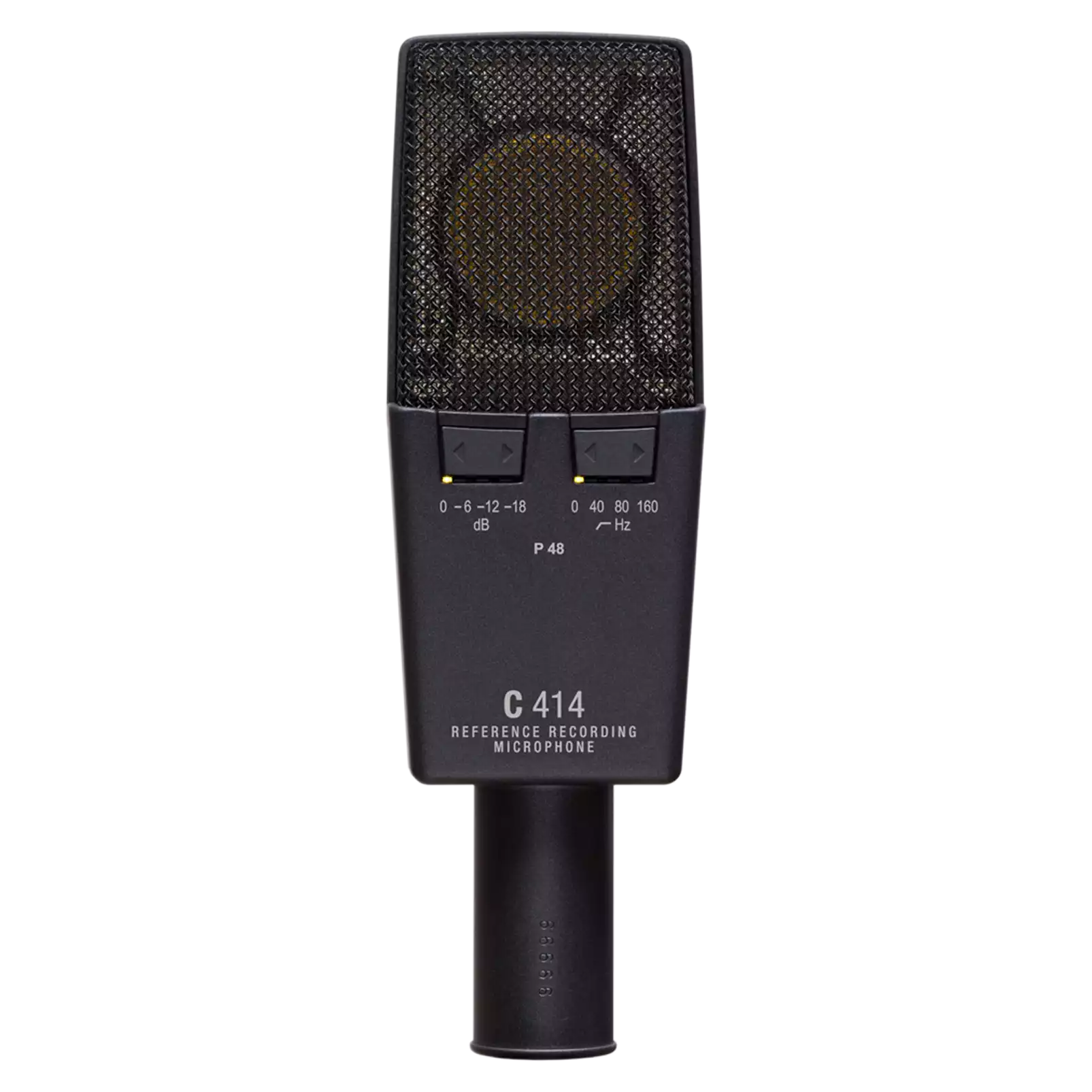

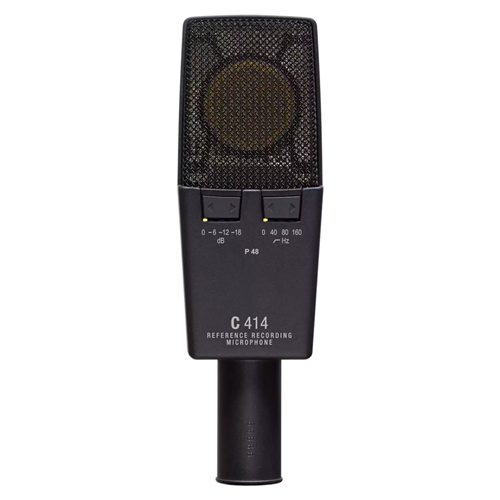

Preattenuation Pad -6; -12; -18 dB
Bass cut filter 160; 80; 40 Hz
Electrical impedance 200 Ohms
Recommended load impedance 2200 Ohms
Polar Patterns Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 44 to 52 V
Current 4.5 mA

Application

Pro Studio Yes

Dimensions

Length 38 mm
Width 50 mm
Height 160 mm
Net Weight 300 g

Design

Finish dark gray/silver

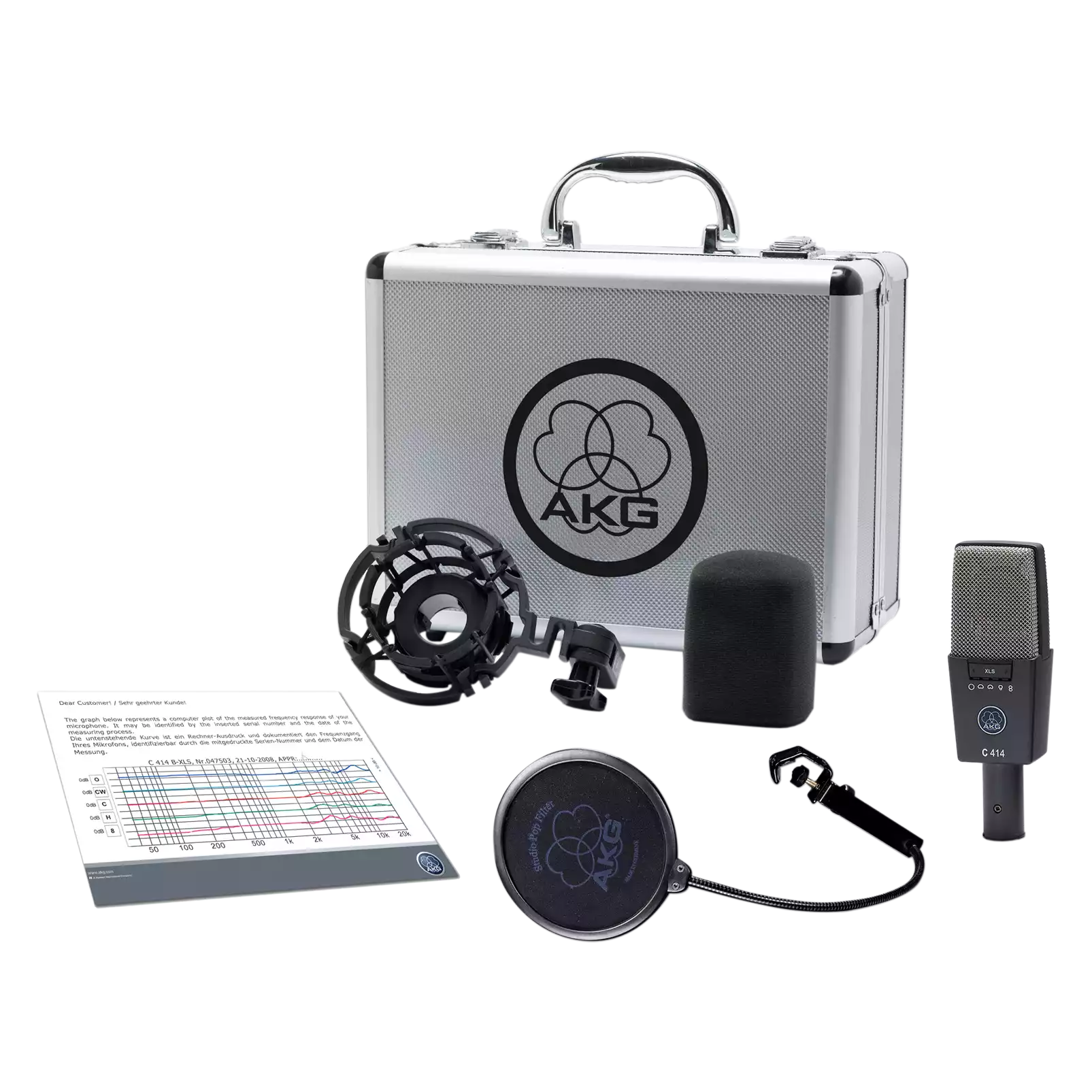

What's in the Box:

  • 1 x C414 XLS Microphone
  • 1 x H85 Universal Shock Mount
  • 1 x PF80 Pop Filter
  • 1 x W414 Windscreen C414
  • 1 x Metal Carrying Case
