AKG C-414XLII Multipattern Condenser Microphone

Product Code: AKG 3059X00060

Key Features
  • Sonic character of the famous AKG C12. Delivers astounding sound quality for lead vocals and solo instruments.
  • Nine selectable polar patterns.  For the perfect setting for every application.

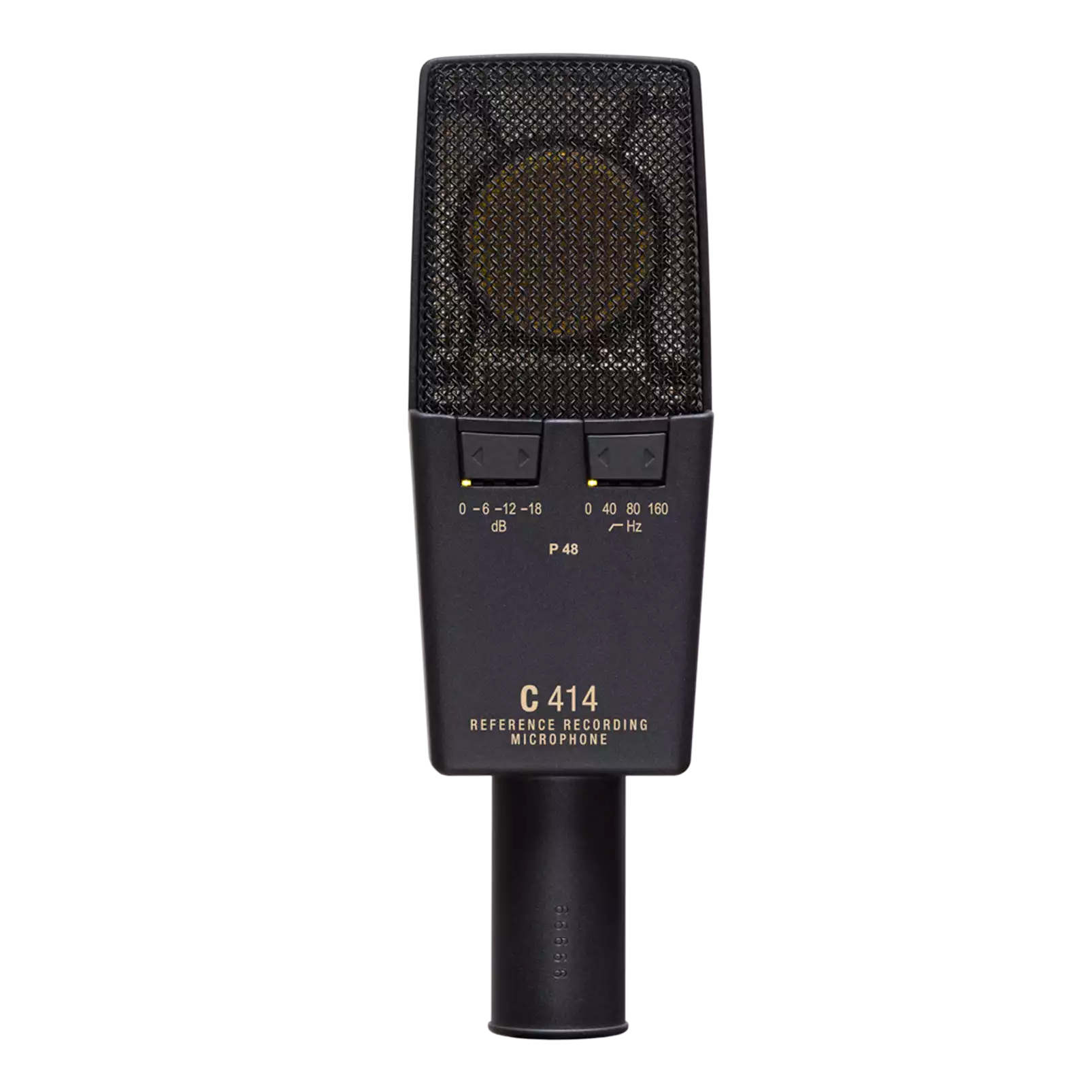

  • Three attenuation levels (-6/-12/-18dB).  For close-up recording or high-output sources of up to 158dB SPL.
  • Three sitchable different bass-cut filters. To reduce wind noise, stage vibration or proximity effect.
  • Overload warning with audio peak hold LED. To detect shortest audio peaks.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

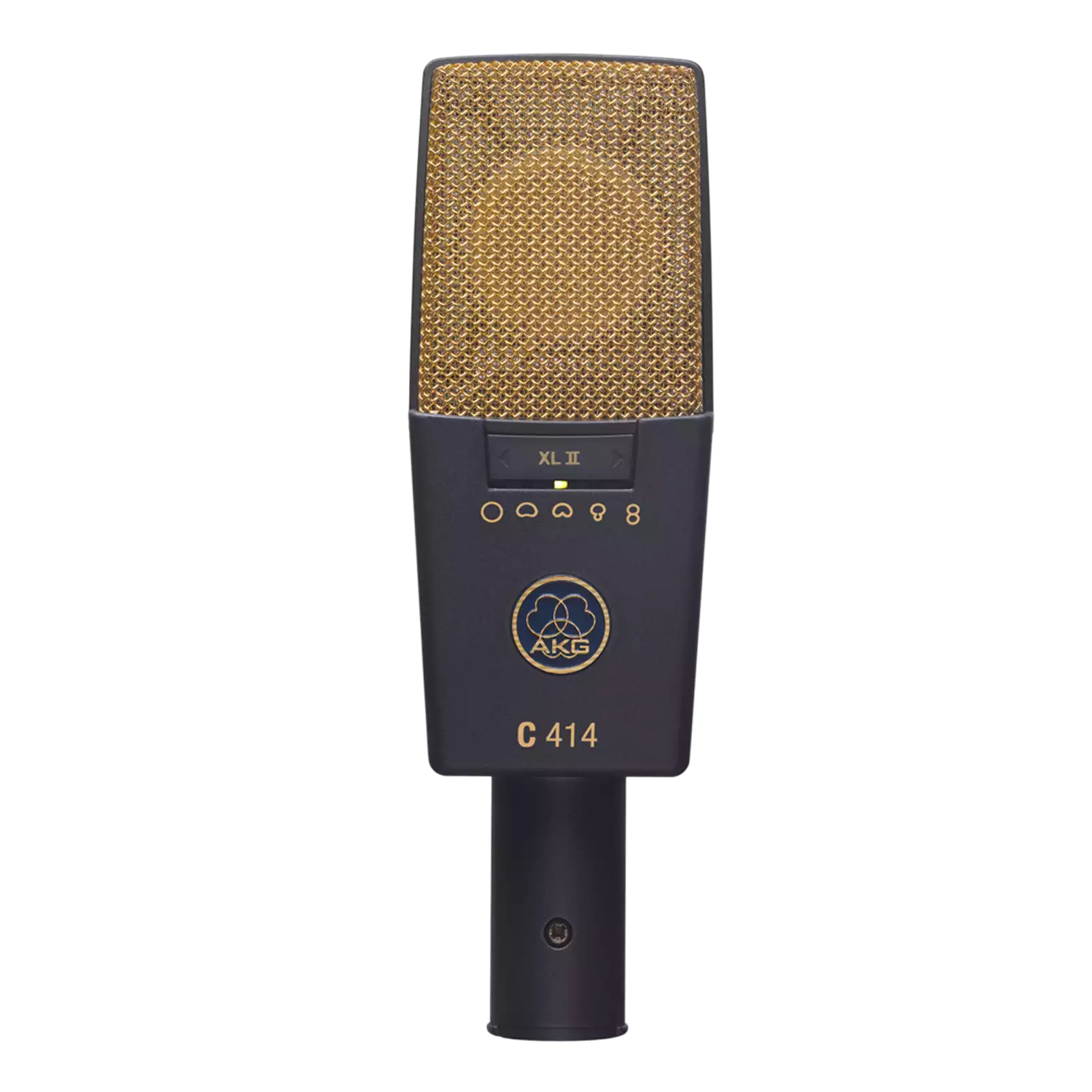

AKG C-414XLII Multipattern Condenser Microphone

The classic C12 sound

The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 6 dB-A
Sensitivity 23 mV/Pa
Signal to Noise 88 dB-A
Preattenuation Pad -6; -12; -18 dB
Bass cut filter 160; 80; 40 Hz
Electrical impedance 200 Ohms
Recommended load impedance 2200 Ohms
Polar Patterns Cardioid, Hypercardioid, and Figure of Eight

Dimensions

Length 38 mm
Width 150 mm
Height
160 mm
Net Weight 300 g

Application

Pro Studio
Yes

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 44 to 52 V
Current 24.5 mA

Design

Finish dark gray/gold

Instrument

Piano / Strings Yes
Vocals Yes
Horns / Woodwinds Yes
