AKG AB4000EW Antenna Booster

Product Code: AKG 3009H00130

Key Features
  • 17dB Amplification
  • For extremely long cable run
  • Remote powering via the antenna cable
  • Eliminates any extra installation effort
  • Cable length adjustment switch
  • For optimizing antenna signal levels
  • Water-resistant construction
  • To withstand extreme weather conditions
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

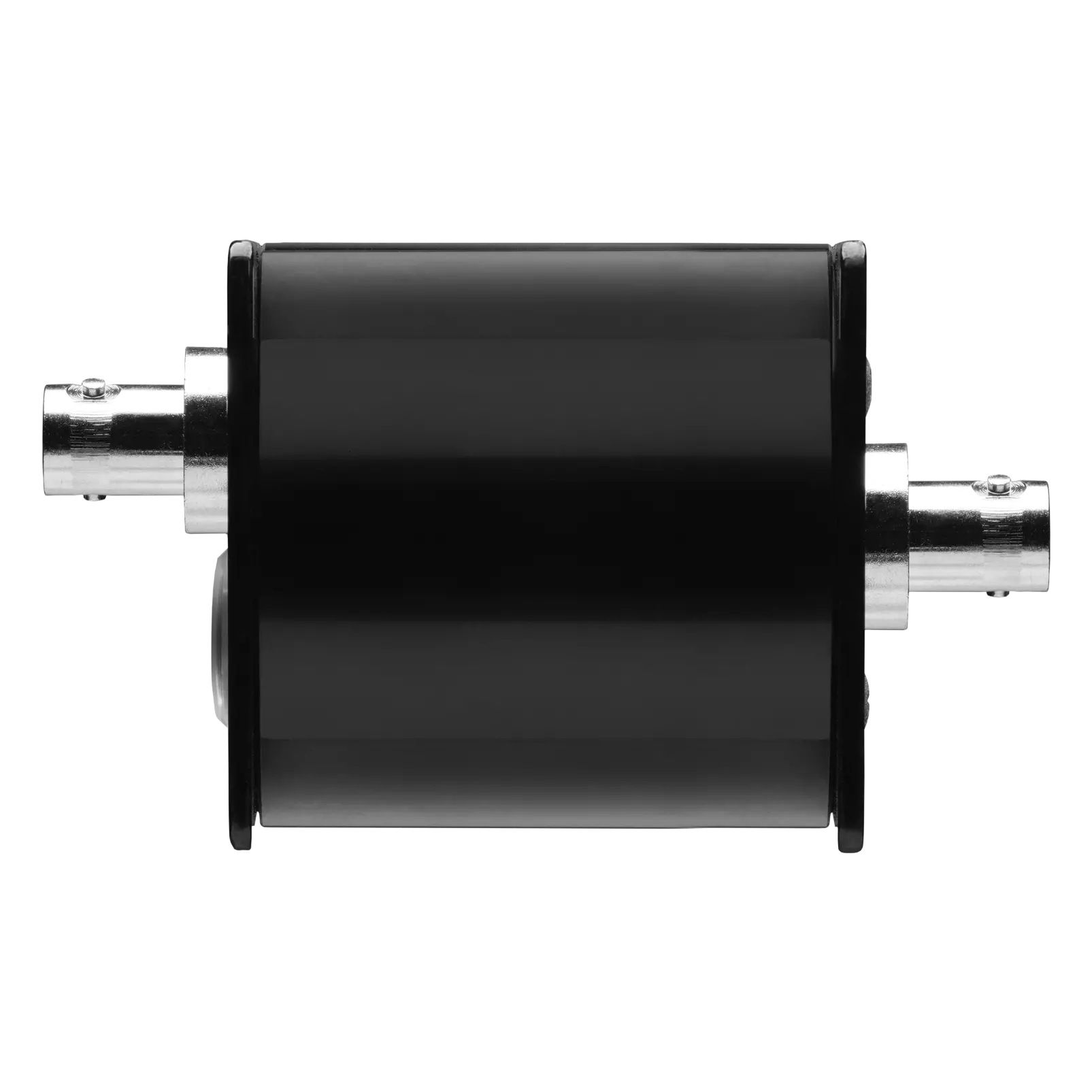

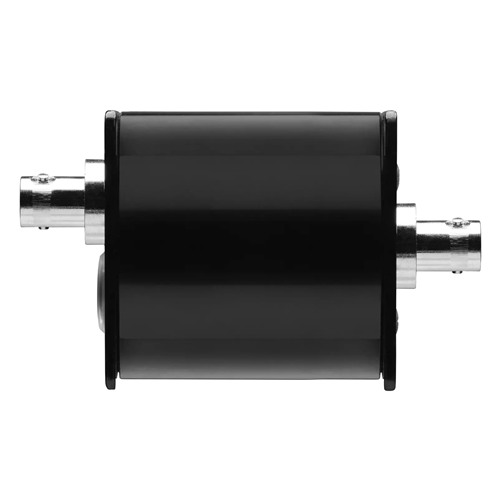

AB4000 EW Antenna booster

Beyond All Limits

AB4000 EW is a high-performance antenna booster to compensate signal loss on long antenna cables. One AB4000 EW can compensate 3.5 to 17.5 dB of cable attenuation. Up to two boosters can be cascaded in case of extremely long cable runs.

The AB4000 EW comes in a rugged, waterproof metal housing and features an in-line power LED display and cable length adjustment switches. It works with all active and passive AKG antennas, RA4000 B/EW, RA4000 EW, SRA2 B/EW and SRA2 EW, and operates in a frequency range from 470MHz to 952MHz.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Switching bandwidth (from/to)
470 to 952 MHz
Operating temperature range -10 to 50 Celsius

Dimensions

Length 110 mm
Height 50 mm
Width 50 mm
Net Weight 150 g

Antenna Input

Amount 1
Type BNC
Gender Female
Note RF input (50 Ohms)
Recommended load impedance 50 Ohms

Antenna Output

Amount 1
Type BNC
Gender Female
Note RF input (50 Ohms)
Recommended load impedance 50 Ohms

Design

Finish Black
Body Metal
