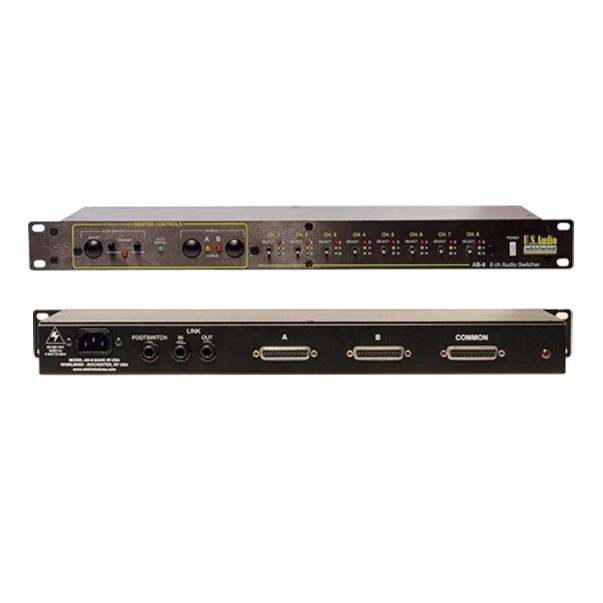

Whirlwind AB8 8-Channel Mic / LineSwitcher DB25 I/O Manual / Auto Switching 1RU

Product Code: WH AB-8

Key Features

The AB-8 is an 8-channel, balanced, bi-directional signal switcher, 1 in - 2 out or 2 in - 1 out per channel.

$1,895.18 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents
  • Eight channels of balanced A - B switching for line, mic or MIDI signals.
  • Each of the eight channels can be individually switched or assigned to a Master Control circuit.
  • Master switching is controlled through front panel pushbuttons, optional footswitch or automatically triggered by loss of signal on channel one of A input.
  • Can be configured as two inputs to one output, one input to two outputs or a mixture of both.
  • Multiple units can be ganged together under Master Control of the first unit or through control Voltage input.
  • Indicator lights show status of each channel.
  • AUTO SWITCH functions automatically switches to redundant copy of backing tracks for live performance.
  • AUTO SWITCH has sensitivity and hold time controls to accommodate input signal levels from -20dB to 20dB
  • Easily switch from tracking to mixing in recording setups.
  • All signal paths revert A to Common when AC power is removed.
  • Internal DIP switches configure ground path switching and DC Voltage blocking requirements.
