A25 Bring Your Own Meeting (BYOM) Device for Focus Rooms

Product Code: YL-A25-BYOM

Key Features
  • Triple-eye camera system (3*4K camera)
  • 151 deg HFOV
  • All-in-one audio and video device
  • IntelliFocus
  • 5m pickup range
  • AI noise cancellation
  • Video fence
  • One USB-C for BYOD & Content
  • 8 MEMS mic array
  • Built-in 10W speaker
  • Electric privacy shutter
$1,750.10 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 3-5 business days
  • Features
  • Overview
  • Technical Specs
  • Documents

A25 Bring Your Own Meeting (BYOM) Device for Focus Rooms

***Pre-Order Now - First stock due end of November 2026***

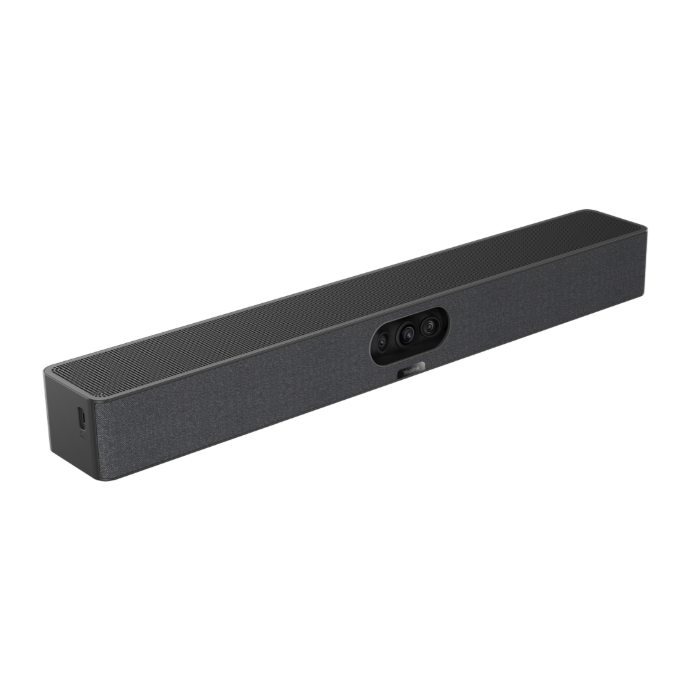

A25 BYOM is an all in one video collaboration bar built for focus rooms. It comes with an advanced triple camera system that provides a 151° ultra wide field of view and high definition imaging. It integrates a high quality loudspeaker, an 8× MEMS microphone array, and intelligent noise reduction for professional meeting audio.

The integrated design allows quick and easy deployment: just power on, connect to the network, and use immediately. An automatic lens cover ensures reliable privacy protection.

Operation is simplified via one USB C cable to a PC, enabling smooth and flexible BYOM usage.



Built for Wide. Tuned for Clear

The MeetingBar A25-BYOM offers a precisely calculated 151° field of view, perfectly balancing ultra-wide coverage with clear image quality. Designed for real-world focus rooms with curved tables pushed against the walls, it uses one ultra-wide lens plus two telephoto lenses to maintain sharp, edge-to-edge visibility--capturing every participant clearly in tight spaces.

image 1



Be Impressive with AI-Powered View

The MeetingBar A25-BYOM ensures everyone is equally impressive and important in a virtual meeting. Embrace a new level of meeting equity.

The on-device IntelliFocus feature displays real-time close-up shots of the recent speakers, enabling you to stay focused on what truly matters. Feel free to make your points just as you would in a face-to-face conversation.

image 2

The Video Fence feature marks the boundaries of a virtual meeting space. Your colleagues only see and hear what's inside, keeping the focus solely on your point.

image 3



Hear and Be Heard with AI-Powered Audio

A25-BYOM ensures smooth communication with full-duplex audio, letting everyone speak and be heard at the same time without overlap. Its advanced AI-Enhanced Noise Cancellation filters out background sounds, delivering clear, natural voice quality in any space.



Simplify with One Plug

MeetingBar A25-BYOM's One-Cable Solution simplifies deployment and sharing.

A single USB-C cable from the bar to the PC enables 4K sharing and BYOD.

image 4



Android Based, Meetings Secured

The A25-BYOM, running on Android 13, supports the Microsoft Device Ecosystem Platform (MDEP) to deliver a secure, future-proof meeting experience.

It protects against malicious attacks and data leaks, ensuring your meetings remain safe and reliable while staying ready for future updates and integrations.

*MDEP support coming soon.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Camera Number of cameras: 3
  Lens FOV: 1x Ultra-Wide Camera: DFOV 182°, HFOV 151°, VFOV 81°; 2x Tele Camera: DFOV 93.5°, HFOV 84.4°, VFOV 53.1°
  Maximum pixels: 3x 4K cameras, all with 8MP image sensors
  Number of preset positions: 9
  Depth of field: 0.4-2.5 meters
  Maximum resolution: 3840x2160
  Maximum frame rate: 30 fps
  Video output resolution: 4K (2160P) 30fps, 1080P 60fps
  Privacy cover: Electric lens cap
  Electronic gimbal
  Lens calibration
  Intelligence features: IntelliFocus (2 portraits), Auto Framing, Speaker Tracking, Picture in Picture, Video Fence
Speaker Built-in 10W speaker
  Rated power: 10W
  Maximum power: 12W
  Maximum sound pressure level: 90dB SPL 10W@1m
  Frequency response: 100Hz-16kHz
  Sensitivity: 86dB SPL @ 1W @ 0.5 meter
  Sampling rate: 48kHz
  Sound emission angle: Forward-facing
  Total Harmonic Distortion (THD): <5% at 10W, 1kHz
  Rated impedance: 4 ohms
Microphone Built-in 8 MEMS microphone array
  Pickup distance: 5 meters (3.5-meter high-quality pickup distance)
  Signal-to-noise ratio: 72dB@1kHz
  Maximum sound pressure level: 130dB SPL (whole device), 100dB SPL (individual microphone)
  Dynamic range: 28-100dB SPL
  Sensitivity: -38dBV/Pa
  Frequency response: 100Hz-20kHz
  Sampling rate: 48kHz
  Bit depth: 32-bit
  Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control)
  Noise suppression: AI-enhanced noise suppression
  Expansion mics: Not supported
Resolution Lens resolution: Up to 4K30fps
  Bandwidth requirement: 10Mbps or more
Content Sharing Up to 4K30fps
Ports 1x USB 2.0 Type-A port
  1x USB 2.0 Type-C port (side)
  1x USB 3.0 Type-C port: video input supports formats up to 4K30fps, including 1080P60fps (content sharing); video output supports formats up to 1080P30fps (BYOM)
  1x Ethernet port: 10/100/1000Mbps
  1x Yealink VCH port (RJ-45)
  1x HDMI-out port: video output supports formats up to 4K30fps, including 1080P60fps; supports HDMI CEC
  1x 3.5mm Line-out port
  1x Power port
  1x Security lock slot
  1x Reset slot
Package Contents A25-BYOM
  Power adapter, 3.5m/11.48ft
  HDMI cable x1, 1.8m/5.91ft
  Network cable x1, 3m/9.84ft
  USB A to C cable x1, 3.0m/9.84ft
  USB-C to C cable x1, 1.8m/5.91ft
  Wall mount
  Cable cover
  Quick start guide
  VCR11 Remote
Dimensions and Weight (W x D x H) A25-BYOM: 570 x 80 x 65 mm
  N.W/CTN: 3.812 kg
  G.W/CTN: 4.290 kg

Refer to datasheet for a full list of specs.
