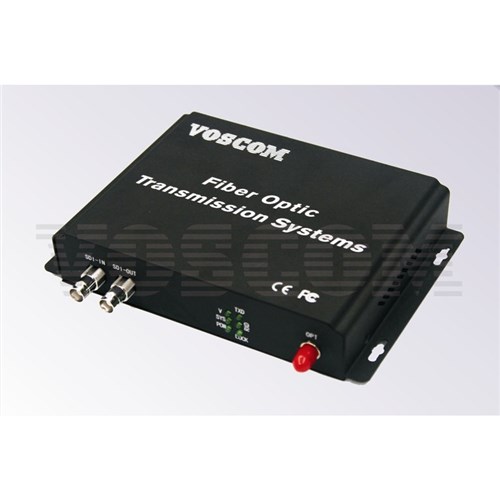

3G-SDI Video over Fibre VOS-1H3G-T/R provides for the digital transmission of 1-Channel uncompressed 2.97Gbps 3G-SDI (SMPTE 424M), 1.485Gbps HD-SDI (SMPTE 292) or 270Mbps SD-SDI (SMPTE 259M) 1080P HD video over fibre, no audio, no data, and support one loopback output for local display, and dual output for two displays in the remote end.
Stand-alone or rack-mount. All 3G-SDI Video over Fibre of VOS-1H3G-T/R come in an insert card version. The cards can be inserted into our 16-slot, 19inch 4U rack-mountable card cage (VOS-CH04-HD-16).
Single-Mode or Multi-Mode, VOS-1H3G-T/R can support FC/PC or ST/PC optical connector, the transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km, Multi-mode 300m.
Price is for a "SET", includes Transmitter and Receveier, and their power supplies.
Pricing is for Single-mode 20km or Multi-mode 300m models.
This model is common, inquiries for custom models are welcome.
Important Note When Ordering This Product: Please advise us if you require:
- The fibre mode to be “Single-Mode” or “Multi-Mode”.
- “FC/PC” or “ST/PC” optical connectors.
To advise us of the above specifications, kindly type your requirements into the "Order Comments" section at the point of submitting your order.
