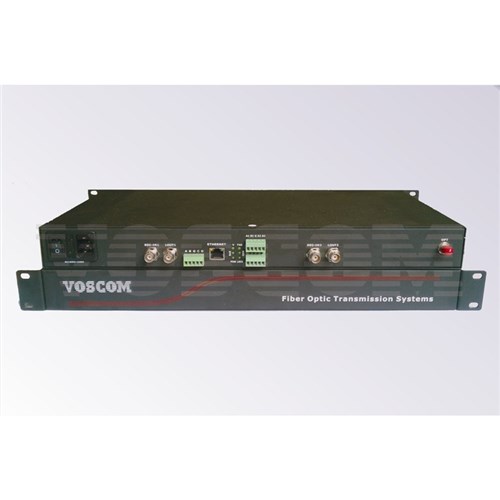

VOSCOM 1-Channel Duplex 3G-SDI and 2 Duplex Audio and 1 Duplex Data and 2 Simplex or 1 Duplex Contact Closure and IP Ethernet Fibre

Product Code: VOS-1DH3G-ADCET/R

Key Features
• Uncompressed Duplex 3G-SDI / HD-SDI
• Support Muti-rate 19.4M to 2.97Gbps
• Support Duplex Audio & Serial Data
• Support Contact Closure & IP Ethernet
• Support Embedded Digital audio
• Support 19inch 1U Rack
$7,405.35 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

3G-SDI Fibre Transmission VOS-1DH3G-ADCET/R provides for the digital transmission of 1-Channel duplex uncompressed 2.97Gbps 3G-SDI (SMPTE 424M), 1.485 Gbps HD-SDI (SMPTE 292) or 270 Mbps SD-SDI (SMPTE 259M) 1080P HD video over fibre, support 2 duplex analog audio, 1 duplex RS232/RS485 serial data and 2 simplex contact closure or 1 duplex contact closure, and IP Ethernet. also support one loopback output for local display, and dual outputs for two displays in the remote end. This unit only can support 19inch 1U Rack.

Single-Mode or Multi-Mode, VOS-1DH3G-ADCET/R can support FC/PC or ST/PC optical connector, the transmission distance range according to the Optical Budget. Manufacturer's standard is: Single-mode 20km, Multi-mode 300m.

Price is for a "SET", includes Transmitter and Receveier, and their power supplies. Pricing is for Single-mode 20km or Multi-mode 300m models. This model is common, inquiries for custom models are welcome.

Important Note When Ordering This Product: Please advise us if you require:

  1. The fibre mode to be “Single-Mode” or “Multi-Mode”.
  2. FC/PC” or “ST/PC” optical connectors.

To advise us of the above specifications, kindly type your requirements into the "Order Comments" section at the point of submitting your order.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.
