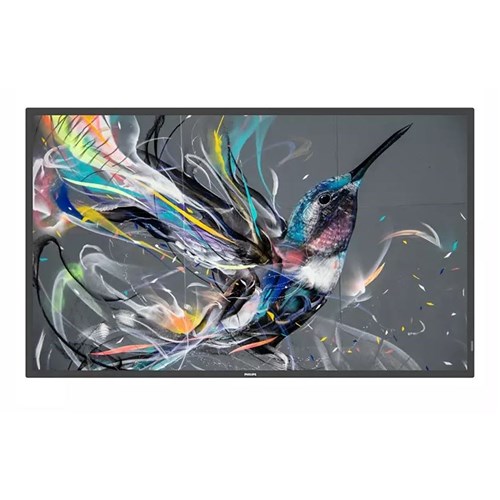

Philips 65 inch QE Eco Series 4K 18/7 300nit Android Professional Display

Product Code: PHL 65BDL3650QE

Key Features
  • EcoDesign 18/7 display
  • Powered by Android
  • 65"
  • Direct LED Backlight
  • Ultra HD
$2,341.43 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Philips 65 inch QE Eco Series 4K 18/7 300nit Android Professional Display

Display better

Engage your audience with this environmentally conscious 4K Ultra HD digital display. Delivering uncompromised 4K UHD performance while running on half the power compared to other market models, with the very latest PPDS EcoDesign.

100% recycled and recyclable packaging

Designed with manufacturing processes, physical features, materials, packaging, and built-in software that are kinder to the environment and deliver better energy efficiency, the Philips Signage 3650 EcoDesign display is designed to operate using less than half the power of its counterparts, while still delivering the same unrivalled performance.

Android SoC processor. Native and web apps

Powered by our Android 10 SoC platform, these hard-working displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer.

Connect and control your content via the cloud

Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with full HD resolution. Simply connect the display to the internet using the optional CRD22 Wifi module or via LAN, and enjoy your own created playlists.

EPEAT Silver Climate certified

Recognised by and registered with EPEAT with a Silver Climate Ecolabel, the Philips Signage 3650 EcoDesign QE-Line meets the robust set of criteria laid out by the world's premier ecolabel for electronics.

FailOver. Ensure content is always running

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection.

Optional Interact for wireless screen share

Wirelessly screen share using your existing Wifi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network.

PPDS Wave ready for remote management

Unlock the power, versatility and intelligence inside your Philips Signage 3650 EcoDesign displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy, and environmental impact.

Wifi and Bluetooth 5.2 via optional module

Easily schedule content to play from USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Warranty

We offer a 3 year onsite warranty via 3rd party on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Picture/Display
Diagonal screen size (metric)

163.9  cm

Diagonal screen size (inch)

64.5  inch

Panel resolution

3840 x 2160

Optimum resolution

3840 x 2160 @ 60 Hz

Brightness

300  cd/m²

Contrast ratio (typical) 1200:1
Dynamic contrast ratio

500,000:1

Response time (typical)

8  ms

Aspect ratio

16:09

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Pixel pitch

0.372 x 0.372 mm

Display colors

1.06 Billion

Panel technology

IPS

Picture enhancement

Dynamic contrast enhancement



Motion compens. deinterlacing



3/2 - 2/2 motion pull down

  Progressive scan
Operating system

Android 10

Connectivity
Video input

HDMI 2.0 (x2)



DVI-I (x 1)



USB 2.0 (x2)



USB 3.0 (x2)

Audio input

3.5 mm jack

Audio output

3.5mm jack

External control

RJ45



RS232C (in/out) 2.5 mm jack



IR (in/out) 3.5 mm jack

Optional WiFi functionality

CRD22 wifi dongle

Other connections

micro SD



OPS

Convenience
Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Keyboard control

Lockable



Hidden

Network controllable

RS232



RJ45

Signal loop through

RS232



IR Loopthrough

Placement

Landscape (18/7)



Portrait (18/7)

Remote control signal

Lockable

Ease of installation Smart Insert
Dimensions
Bezel width

14.9 mm (Even bezel)

Set Width

1462.3  mm

Set Height

837.3  mm

Set Depth

68.9mm(D@wall mount) / 89.9mm(D@handle)  mm

Wall Mount

400mm x 400mm , M8

Product weight

28.5  kg

Power
Mains power

100 - 240V~, 50/60Hz

Standby power consumption

<0.5W

Consumption (Max)

133 W

Consumption (Typical)

86 W

Power Saving Features

Smart Power

Energy Label Class

D

Sound
Built-in speakers

2 x 10W RMS

Accessories
Included Accessories

IR sensor cable (1.8 m) (x1)



RS232 daisy-chain cable



Philips logo (x1)



AC Power Cord



AC Switch Cover



Cable clip (x2)



Quick start guide



RS232 cable



USB Cover (x1)

Internal Player
CPU

Dual core cortex A53 1.1G Hz, Dual core cortex A73 1.15G Hz, Quad Core Cortex A55

GPU

G52 MC1

Memory

16GB, 3GB DDR
