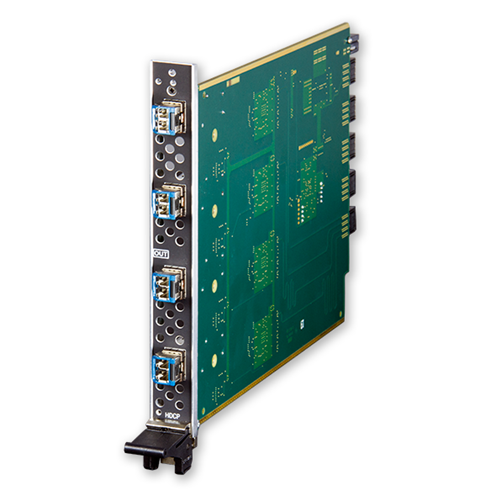

AMX DGX-O-DXF-SMD - 4 connection DXLink Fiber Enova DGX Output Board (single mode/duplex)

Product Code: AMX FG1058-630-FX

Key Features
4 connection DXLink Fiber Enova DGX Output Board (single mode/duplex) with field serviceable SFP modules, includes HDCP compliance, compatible with Enova DGX 8, 16, 32 and 64 Enclosures
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The DGX-O-DXF-SMD is a DXLink Fiber output board with field serviceable SFP modules designed for use with single mode fiber, and is compatible with the Enova DGX 8, 16, 32 and 64 Digital Media Switcher Enclosures. Use it as part of an integrated system to transmit audio, video, control and Ethernet over single mode fiber from up to 10 Km to a DXLink Receiver. Fiber uses light to send data, rather than electric signals making it both the highest quality and most secure way to transmit video as it is not susceptible to electronic noise or non-intrusive physical wiretapping.

The Enova DGX DXLink Output Board is ideal for applications where the demands of high-resolution video clarity, long distance transmission and maximum security need to be met without compromise including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums.

Features

  • HDCP Compliance Over Fiber – Transmit HDCP compliant video including HDMI up to 10 Km
  • Industry Leading Data Rate – DXLink is leading the way with an optical transport rate of 10 Gbps
  • Secure and Isolated – Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
  • Field Serviceable Fiber Modules – Easily remove and replace SFP modules in the field

Harman Professional University certifications required to purchase this product. Please contact your Account Manager to learn more.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

FG Numbers FG1058-630
