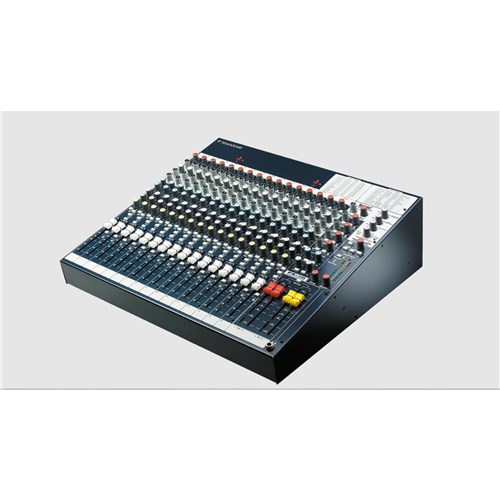

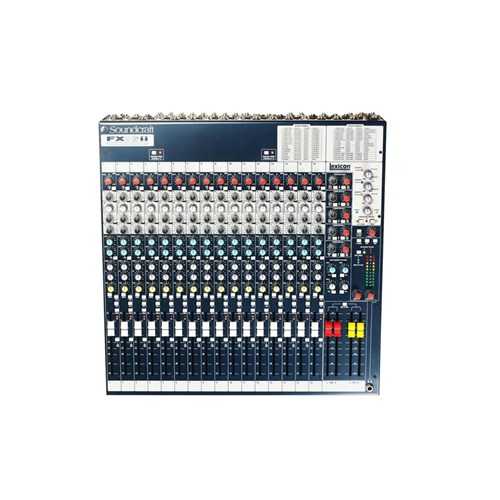

Soundcraft FX16ii Compact Recording/Live Lexicon Effects Mixer

Product Code: SCF RW5757

Key Features
  • 26 inputs
  • 16 mono microphone channels.
  • 4 stereo returns
  • 4-bus architecture, with sub-group routable to mix
  • Built-in 24 bit Lexicon digital effects processor
  • 32 FX settings
  • Tap Tempo
  • 3 FX parameter adjust rotaries
  • User FX settings store function
  • Direct outputs for multi-track recording individually switch-able for pre-post-fade operation
  • Inserts on all mono channels
  • Inserts on stereo mix output
  • Classic Soundcraft 3-band EQ with swept mid-band
  • Stereo 18dB/octave 100Hz high-pass filter
  • Dual global +48V phantom power split channels 1-8 and 9-16
  • Channel Mute control
  • 10-segment tri-coloured metering
  • Two sub-group outputs
  • Separate mono sum output
  • Integral universal power supply
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Soundcraft FX16ii Compact Recording/Live Lexicon Effects Mixer

In 1997 Soundcraft launched the Spirit FX16 which immediately became popular with its 16 direct outputs and built-in effects unit in wide ranging applications. 10 years later Soundcraft has given the FX16 an overhaul bringing it in line with the Soundcraft Professional range using the latest 24-bit, digital Lexicon® effects processor and creating the Soundcraft FX16ii™.

The Soundcraft FX16ii mixer uses the same AudioDNA® processor featured in many of the Digitech® and Lexicon outboard equipment including the highly respected Lexicon MX400 processor. With over 35 years experience, the Lexicon name is synonymous with the best reverb and processing in the business, ensuring the finest quality effects not usually found in a console at this price level.

The Soundcraft FX16ii offers a combination of powerful live and recording features; each channel has a Direct Output which is individually switch-able pre or post fader to enable use with 16-track recording systems. The Lexicon effects work just as well in the live as well as the recording environment with a tap tempo function, 3 parameter controls, user effects settings store ability, effects clip LED and 32 powerful and editable effects to choose from.

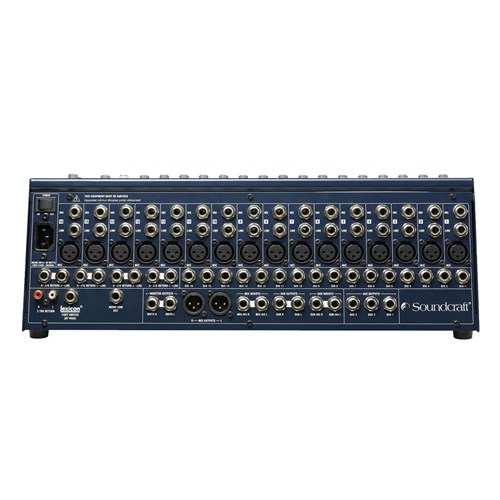

The use of the latest PCB surface mount technology means that the Soundcraft FX16ii fits all of these features into a rugged, compact frame which can be optionally rack-mounted into a 10U space via Soundcraft FX16ii's rotating connector pod which allows cables to be connected conveniently behind the rack and save rack space.

Applications:

Live Sound: Bands, Small Venues, Clubs, Conferences, Schools, Houses of Worship

Studio Recording: Digital/Analogue Multi-tracking (8 or 16 track), Small/Home Studios, Pre-/Post-Production.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
  • Frequency Response
    • Mic / Line Input to any Output:+/-1dB, 20Hz – 20kHz
  • T.H.D.
    • Mic Sensitivity -30dBu, +14dBu @ Mix output: < 0.09% @ 1kHz
  • Noise
    • Mic Input E.I.N. (maximum gain): -127dBu (150 source)
    • Aux, Mix and Masters (@ 0dB, faders down):<-84dBu
  • Crosstalk (@ 1kHz)
    • Channel Mute: > 96dB
    • Fader Cut-off (rel +10 mark): > 96dB
    • Aux Send Pots Offness: > 86dB
  • EQ (Mono inputs)
    • HF: 12kHz, +/-15dB
    • MF (swept): 150Hz – 3.5kHz, +/-15dB
    • LF: 80Hz, +/-15dB
    • Q: 1.5
  • Power Consumption: Less than 40W
  • Operating Conditions
    • Temperature Range: 5°C to 40°C
  • Input & Output Levels
    • Mic Input: +15dBu max
    • Line Input: +30dBu max
    • Stereo Input: +30dBu max
    • Mix Output: +20dBu max
    • Headphones (@150 ): 300mW
  • Input & Output Impedances
    • Mic Input: 2k
    • Line Input: 10k
    • Stereo Input: 65k (stereo), 35k (mono)
    • Outputs: 150k (balanced), 75k (unbalanced)
