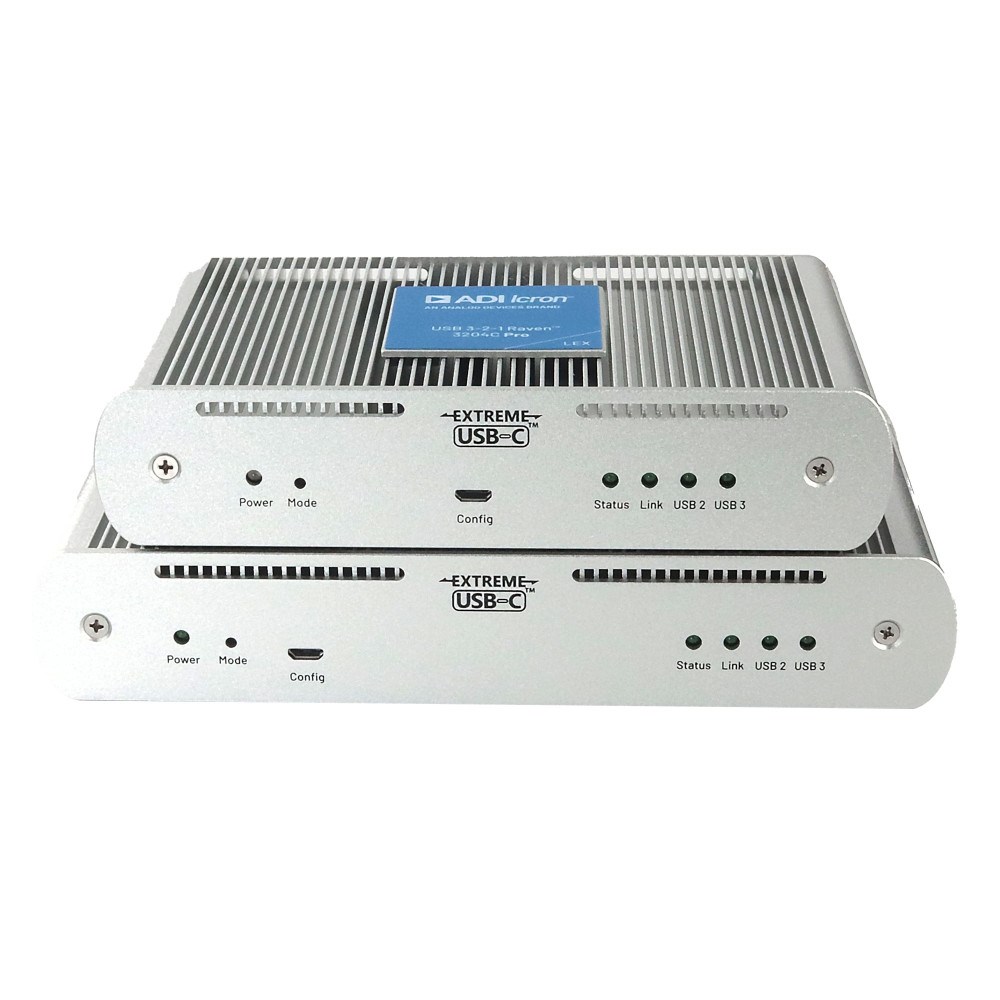

Icron Technologies USB 3-2-1 Raven 3204C Pro 4-Port USB 3-2-1 LAN or CAT 6a/7 USB-C Extender System Silver

Product Code: IC 00-00479

Key Features
  • Supports all USB 3, 2, and 1.1 devices simultaneously up to 5Gbps (shared)
  • Extends USB 3-2-1 up to 200m across a 10GbE LAN switch or 100m though a single CAT 6a/7 cable
  • Power the LEX using the USB-C connection to the host
  • REX includes 2 USB-C ports and 2 USB-A ports
  • Delivers 3A at each USB-C port and 1.2A at each USB-A port
  • Convenient Firmware Upgrade over Network capability saves time and reduces maintenance costs
  • 1Gb Ethernet pass-through eliminates extra cable runs for simplified installations
  • Compatible with all major UC conferencing applications
  • Supports all USB transaction types (Control, Interrupt, Bulk, and Isochronous)
  • Includes the ExtremeUSB-C suite of features:
  • Transparent USB extension supporting USB 3, 2 and 1
  • True plug and play; no software drivers required
  • Works with all major operating systems; Windows, macOS, Linux and ChromeOS
$3,593.34 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 3-2-1 Raven 3204C Pro 4-Port USB 3-2-1 LAN or CAT 6a/7 USB-C Extender System Silver

Icron Raven 3204C Pro extends USB 3 (5Gbps), USB 2.0 and USB 1.1 devices up to 100m (330 ft) from a host computer across a point-to-point CAT 6a/7 connection, or 200m from a host computer across a 10GbE LAN.

The Raven 3204C delivers the same exceptional performance as the Raven 3104, in a smaller, lighter design, with USB-C ports available for the host and extended devices, and the world’s first USB 3-2-1 extender over Local Area Network optimized for camera and video capture devices with Isochronous (ISO) support.

Extend ISO USB cameras, sound bars, touchscreens, hubs, DACs and other USB-A or USB-C peripherals past the maximum length of a standard USB 3 cable (1.8m/6ft) to a PC or laptop across the conference room or to an IT closet with standard CAT 6a/7 cabling. Use the LAN pass-through port to deliver IP control to any connected USB devices.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

USB Type USB 3.0, 2.0, 1.1
Transmission Media Cat 6a/7 Local Area Network
Number Of USB Ports 4 - Ports
Max. Distance Up to 200m
Power Adapter Location LEX and REX
USB Throughput 5 Gbps
Power Requirements 24V DC, 1A and 24V DC, 2.71A
USB Hub/Tier Usage 2 hubs total, 1 on LEX and 1 on REX
