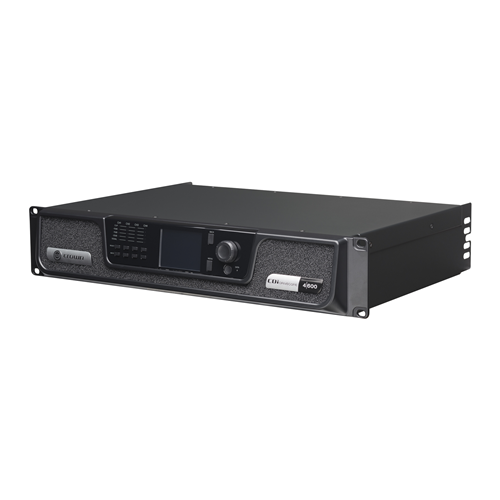

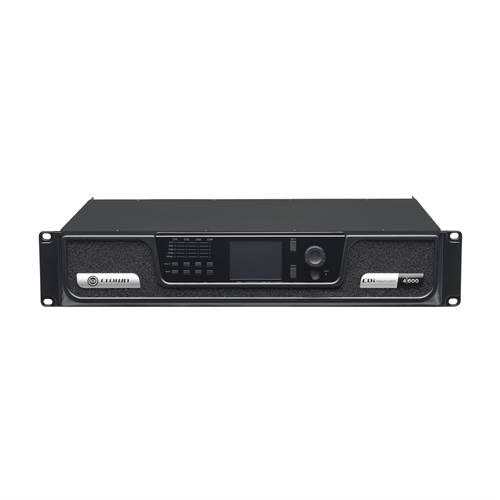

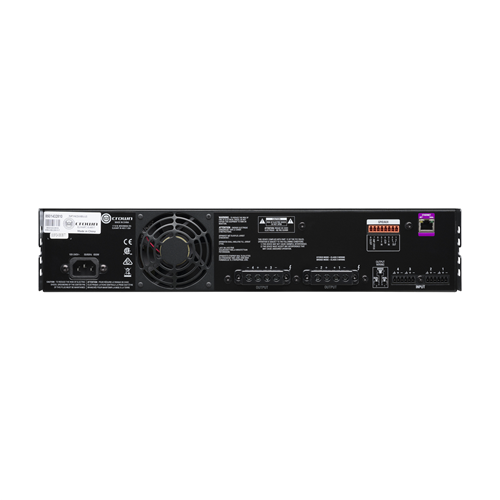

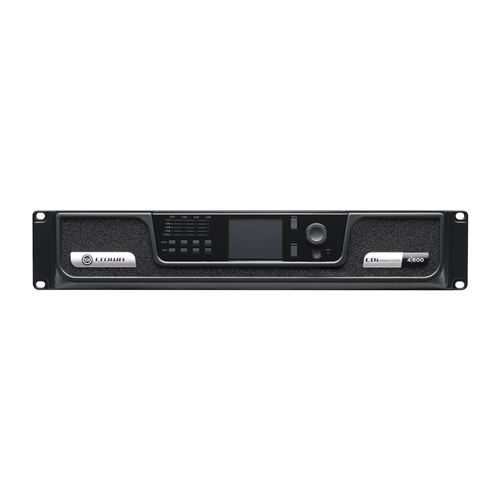

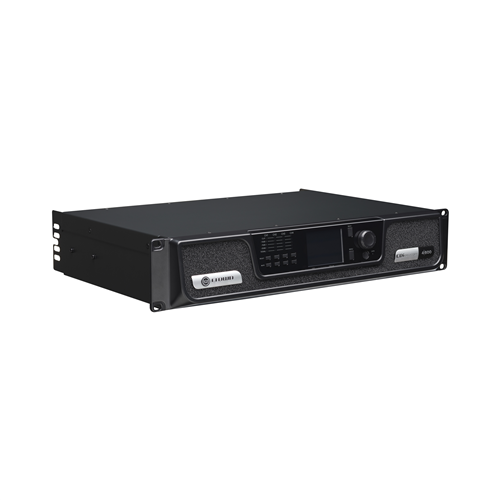

Crown CDI4600 - 4-Channel 600W per output Channel Amplifier

Product Code: CWN CDI4X600

Key Features
600 watts per channel 4 channel amplifier, 70/100V, 4/8 ohm, digital signal processing, networked, front panel interface.
$6,849.07 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|600 offers streamlined functionality to work in almost any medium sized installation such as cinema, houses of worship, bars, lounges, and more.  Designed for ease-of-use in a variety of applications, the 4|600 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Feature Comparison

CDi DriveCore Model Channels Network Control DSP Control Port BLU link
4|600 4

Output Power: Dual Mode - All Channels Driven

CDi DriveCore Model Channels 2O 4O 8O 16O 70Vrms 100Vrms
4|600 / 4|600BL 4 300W 600W 600W 300W 600W 600W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Output Power: Bridge Mono Mode - All Channels Driven

CDi DriveCore Model 4O 8O 16O 140Vrms 200Vrms
4|600 / 4|600BL 600W 1200W 1200W 1200W 1200W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

BLU link No
Channels 4
Sensitivity (for full rated power at 8 ohms) 0.7V RMS
Rated Power Output (per channel @ 4 ohms) 600W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms) > 104dB
THD (full rated power, 20 Hz - 20 kHz) 0.35%
Damping Factor (20 Hz to 100 Hz) > 1000
Frequency Response (8O, 20 Hz - 20 kHz) /-0.25dB
Crosstalk (below rated power) 20 Hz to 1 kHz > 80dB
Input Impedance (nominally balanced, nominally unbalanced) 20 kO balanced, 10 kO unblanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) 19 x 3.5 x 12.25
Weight 16.3 lbs (7.39 kg)
Power Supply Connector "15A IEC connector, 100 – 240V "
