Product Features:

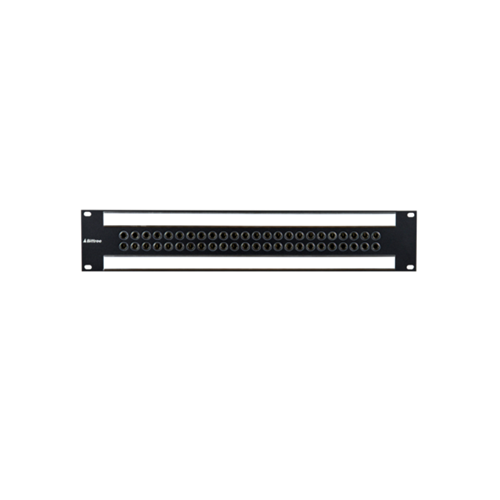

• Spacious 2x24 jack configuration with mono (even) jack spacing
• Designed for high and low impedance speaker systems
• Nominal 0.030 ohms per speaker terminal point
• 16 AWG two-conductor cable used for internal wiring
¼ Inch Long-Frame Jack Properties:
• Precision-stamped reinforced steel jack frame
• Copper-nickel-silver alloy leaf springs with gold-alloy cross bar switching contacts and nickel-plated sleeve bushings
• Rated to 30,000 minimum insertion cycles

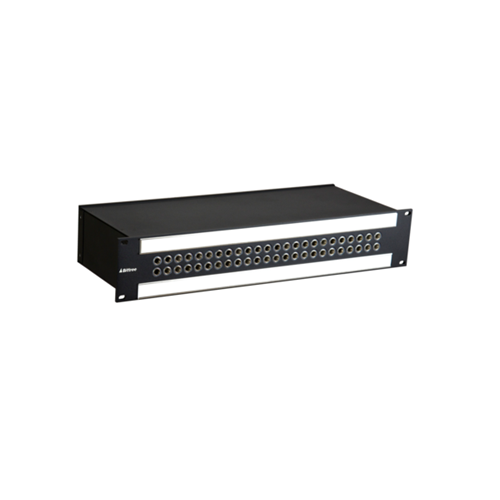

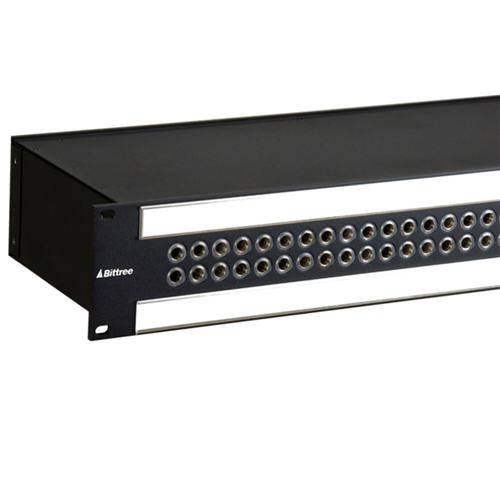

Panel Features:
• 3/16” (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
• Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel

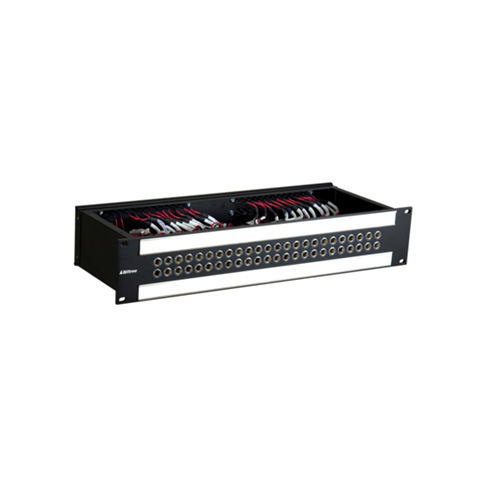

• 7" (30.48 cm) deep fully enclosed chassis
• 2 x DS870-10 designation strips (stainless-steel sliders with white styrene and non-glare Lexan inserts)

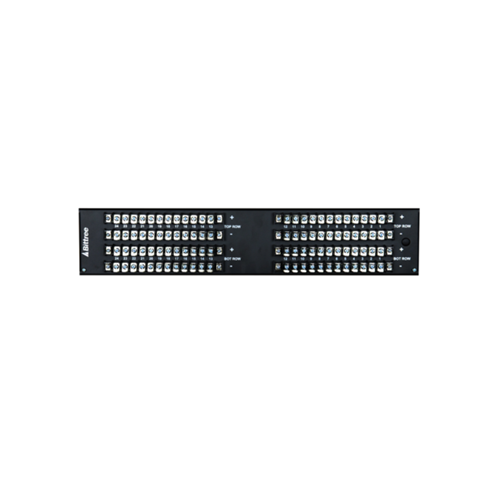

• Barrier Strip rear interface:
- 8 x terminal blocks (single-row, 12-position, dual-barrier)
- Compatible with 1/4" (6.35 mm) faston spade lugs
