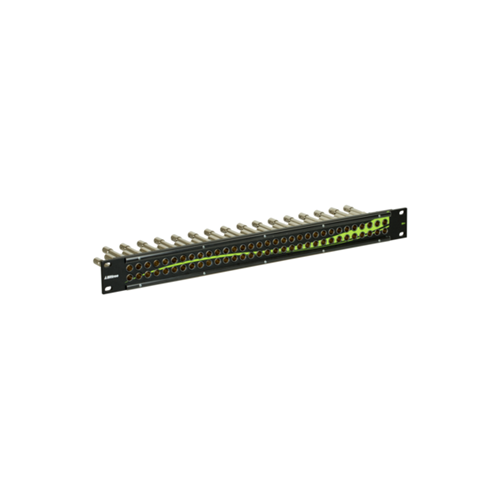

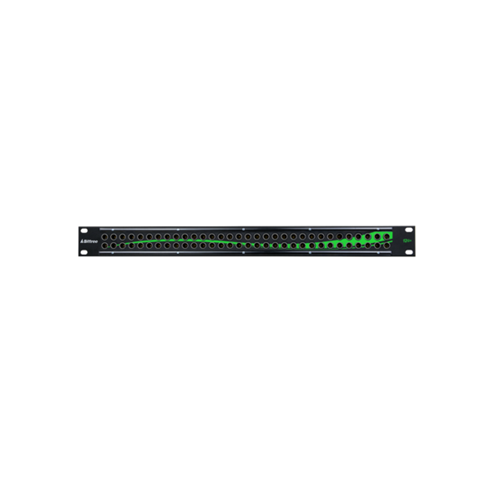

Bittree® 12G Mini-WECO (Midsize) Video Patchbay in 1 RU with 2x32 Jack Configuration
12G Mini-WECO Video Jack Properties:
• 24 GHz high-bandwidth performance for SD/SDI, HD/SDI, UHD/SDI, 4K, 8K, and HDR applications
• Single link compatible
• SMPTE 292M, 424M, 2081-1, and 2082-1 compliant
• True 75 ohm impedance with low return loss
• Life Cycle Rating: 30,000 cycles
Panel Features:
• 3/16" (0.187 in. / 4.76 mm) machined aluminum with a durable powder-coat finish
• Rear-mounted jack modules
• Precision machined phenolic insulator electrically and mechanically separates jacks from the front panel
• 2 x DS250-10 Designation Strips:
- Extruded aluminum bars with clear plastic snap-over caps

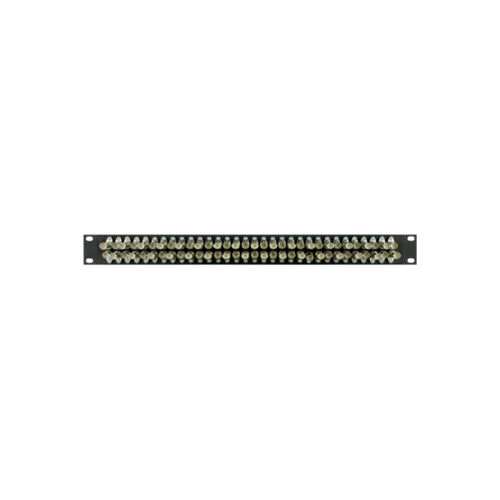

• Staggered BNC Rear Interface
Mini-WECO (Midsize) Patchbay, 12G SDI. Medium Density: 32 patch points per row.
Additional configurations available; please contact us or visit bittree.com for more information.
