Use for:
- Headphone distribution systems.
- Sign language interpretation or language translation.
(The superior sound quality will reduce ear fatigue when working over extended periods of time.) - Adding headphone monitoring to any piece of audio equipment.
- Boosting weak headphone outputs in high SPL environments.

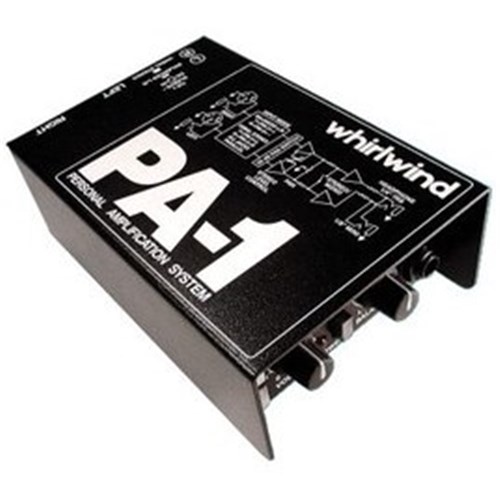

The PA-1 accepts either balanced or unbalanced stereo, line level signals through parallel XLR and 1/4" TRS inputs.
A switch changes the input connector configuration from separate balanced inputs to combination unbalanced
(Tip/Pin2 = Left, Ring/Pin3 = Right)
for accepting signals from sources such as headphone jack outputs.
Powered by two 9 volt batteries that load into easy access drawers or with included external PS24 AC power supply.
